Patria ONE Finnish Unmanned Aerial Vehicle (UAV)
Patria ONE
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Patria ONE Finnish Unmanned Aerial Vehicle (UAV)
Designation
Patria ONE
Alternate Designation
Patria ONE
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Patria
Date of Introduction
2025
Description

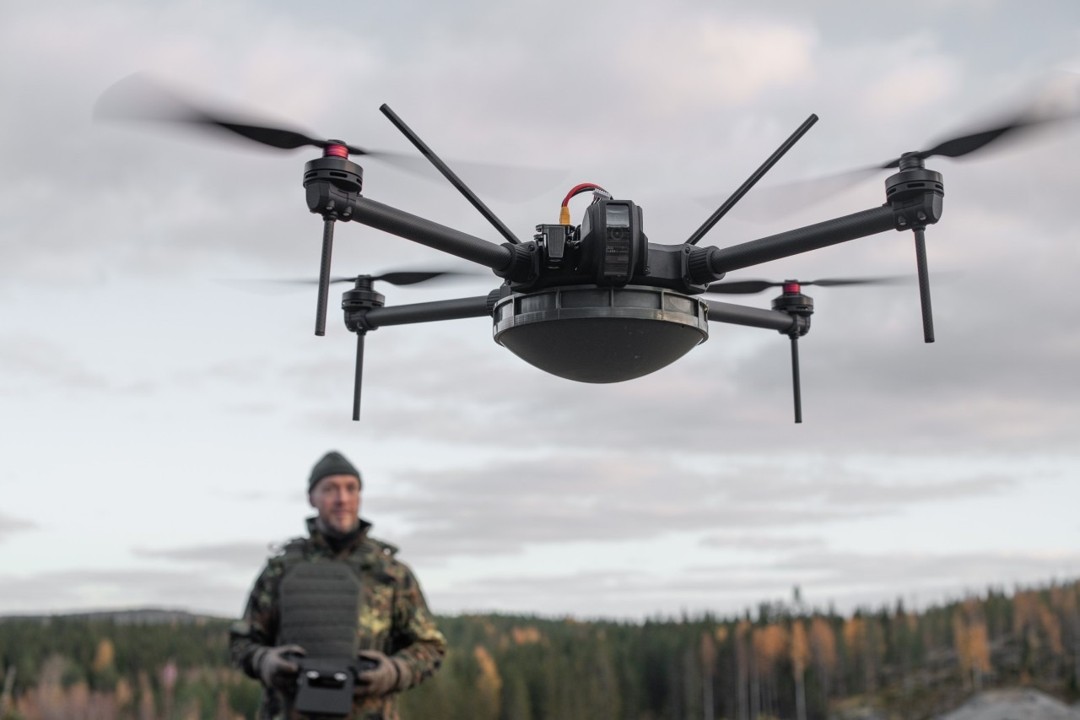

The Patria ONE Finnish Unmanned Aerial Vehicle (UAV) is a quadcopter featuring a flat body design with pulling propellers (rotors on top of motors). Four arms extend from the body, each carrying an electric motor at its end, with two-blade 18-inch carbon fiber propellers mounted on top with quick mounts. Landing legs are fitted at the end of the arms, beneath the motors.
Air & Air Defense Specifications
Engine
Battery
Max Speed
61.0 km/h
Range
6.0 km
Endurance
7.50 hrs
Payload Capacity
3 kg
Variants
Patria ONE Standard
Standard version.
Patria ONE Fast
Features shorter arms; Three-blade propellers; Maximum payload reduced to 3 kg; Observed at the Arctic Event 2025.
Patria ONE XL
Uses the XL kit (shared with Patria SKY); Longer arms, more powerful motors, 22×7.0-inch propellers; Diameter with propellers: 1,450 mm; Designed to carry heavier payloads (e.g., Panzerfaust 3 warhead concept at ~6 kg).
System
Alternate Designation
Patria ONE
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Patria
Payload Capacity
3.8 kg
Payload Options

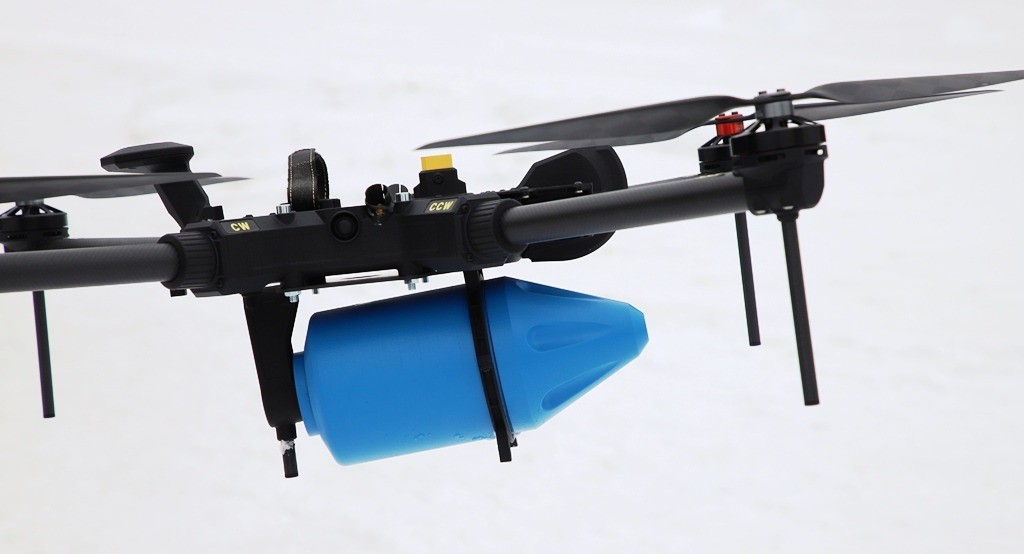

A) Explosively Formed Penetrator (EFP) Warhead:
Cylindrical shaped charge producing an EFP upon detonation; Initiated when the drone flies directly over the target; Uses a Strike Systems Pro-Optic red dot sight through which the tilt camera looks during final approach, providing operator video feed; One-way mission (expendable).
B) Munition Drop System:
Allows the drone to drop ordnance (e.g., mortar bombs) over a target; Airframe is reusable in this configuration; Three-step safety system protects operators during payload handling.
C) Panzerfaust 3 Warhead (Concept):
Warhead from the Dynamite Nobel Defense Panzerfaust 3 anti-tank rocket launcher; Mass approximately 6 kg, requiring the XL version of the Patria ONE; XL kit uses longer arms, more powerful motors, and 22×7.0-inch propellers (same XL kit as Patria SKY); Diameter with propellers increases to 1,450 mm; Horizontal attack profile to properly detonate shaped charge against vehicle armor; As of April 2025, this was described as a concept, not a ready product.
Ground Control Station

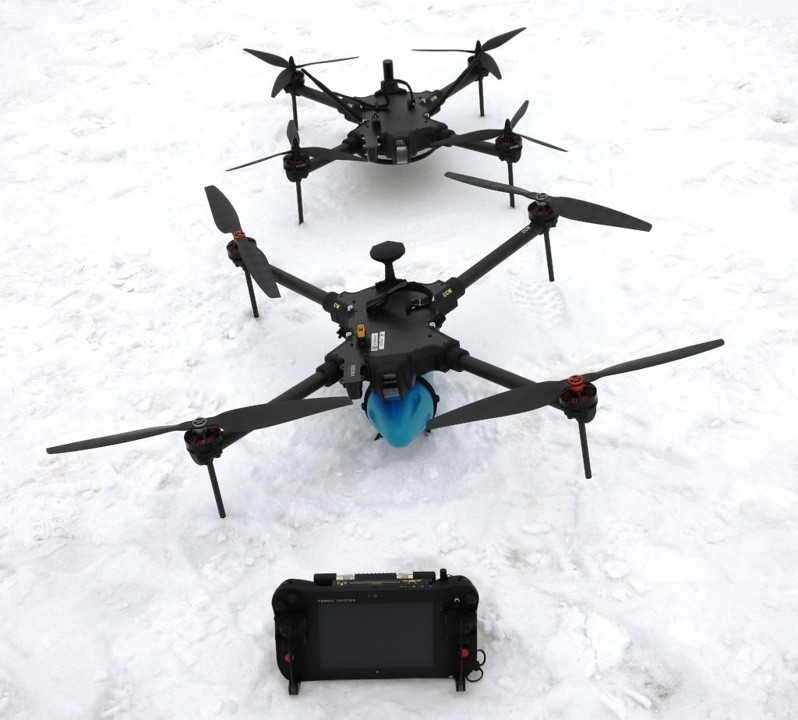

The Patria ONE uses the Nordic Drones SkyControl ground control station, which features a 7-inch screen. The same GCS is used for the Patria SKY, and it can be reused and bound with multiple drone systems.
GNSS
GPS + GLONASS + GALILEO + BEIDOU
Flight Modes
ATTI, GPS
Encryption
AES 128/256-bit
Frequency Range
2400–2482 MHz
Operating Temperature
-20°C to +40°C
Dimensions
Length
620 mm
Width
620 mm
Height
310 mm
Diameter with Propellers
1,245 mm
Weight, Empty
2.0 kg (without payload and battery)
Battery Weight
0.7 kg
Maximum Takeoff Weight
6.5 kg
Automotive
Engine Name
INA
Engine Type
Battery
Engine Power
INA
Maximum Speed
61 km/h
Cruise Speed
INA
Maximum Range
6 km
Service Ceiling
INA
Endurance
7.5 m
Maximum Wind Resistance
54 km/h
Details
Country of Origin
Finland
Category
UAVs
Air > UAVs
Filter Label
P
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.62 m
Width
0.62 m
Height
0.31 m
Weight
6.5 kg
Operators (1)
Finland
