Aerosky Israeli Unmanned Aerial Vehicle

Aerosky

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Aerosky Israeli Unmanned Aerial Vehicle
Designation
Aerosky
Alternate Designation
Aerosky
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Date of Introduction
2008
Description

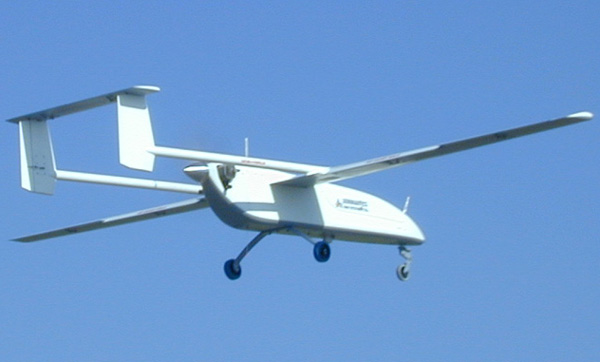

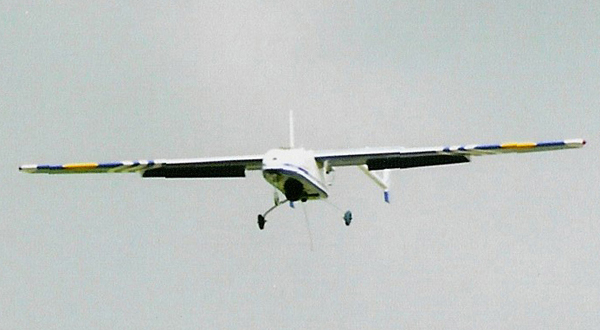

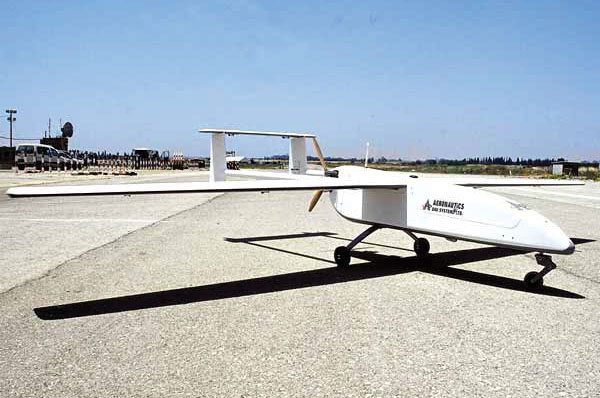

Description The Aerosky is a short-range Israel-made unmanned aerial vehicle (UAV) that has served with the United States and Israel. It is used for tactical reconnaissance, surveillance and target acquisition. The UAV is used as the baseline vehicle for other Aeronoautics aircraft; the Aerosky has a twin tail-boom and a pusher-propeller. It has two radio frequency command uplinks and a real-time imagery downlink. It carries Tamam's POP 200 EO/IR payload and is controlled by UMAS avionics, including full autonomous navigation, camera-guided navigation and MCS ground enhancement. Status The Aerosky was marketed internationally through IAI and obtained by the U.S. Navy and the Israel Defense Forces. The IDF began operating it in March 2002 on "pay-by-the-hour" basis over the Gaza Strip and West Bank. While the vehicle may still be operational, as suggested in Armada International’s Compendium UAVs: Time to Get Real (2015), there has been little unclassified information regarding the Aerosky since 2008. As of 2017, there was no open-source information available about its status with the U.S. Navy or the IDF. The manufacturer did not respond to inquiries by the time of this update.

Air & Air Defense Specifications
Engine Internal Combustion Engine (10 hp)
Max Speed 185.0 km/h
Wingspan 4.50 m
Variants
Aerosky 2 The Aerosky 2 variant was designed with a hybrid battery/piston engine developed by Zanzottera Technologies, Italy. The first flight took place on June 2, 2008. Its maximum takeoff weight is 176 lb (80 kg), with a flight endurance of 10 hours. It has a small noise signature at a low-altitude while operating with electrical propulsion, according to Flight International (April 22, 2008).
System
Alternate Designation Aerosky
Type UAV
Dimensions
Length 3.05 m
Wingspan 4.50 m
Takeoff Weight 70 kg
Payload Weight 40 kg
Automotive
Engine Name INA
Engine Type Combustion
Engine Power 10 hp
Maximum Speed 185 km/h
Maximum Distance 200 km
Maximum Altitude 3,050 m
Details
Country of Origin Israel
Category Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Air > Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Filter Label
A
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
3.05 m
Width
Height
Weight
70 kg
Operators (2)
United States
Israel
