Light Strike Vehicle Singaporean 4x4 Light Utility Vehicle

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Light Strike Vehicle Singaporean 4x4 Light Utility Vehicle
Designation
Alternate Designation
Equipment Type
Manufacturer
Singapore Technologies Kinetics Ltd (ST Kinetics) Australian Defence Industries
Date of Introduction
2008
Description

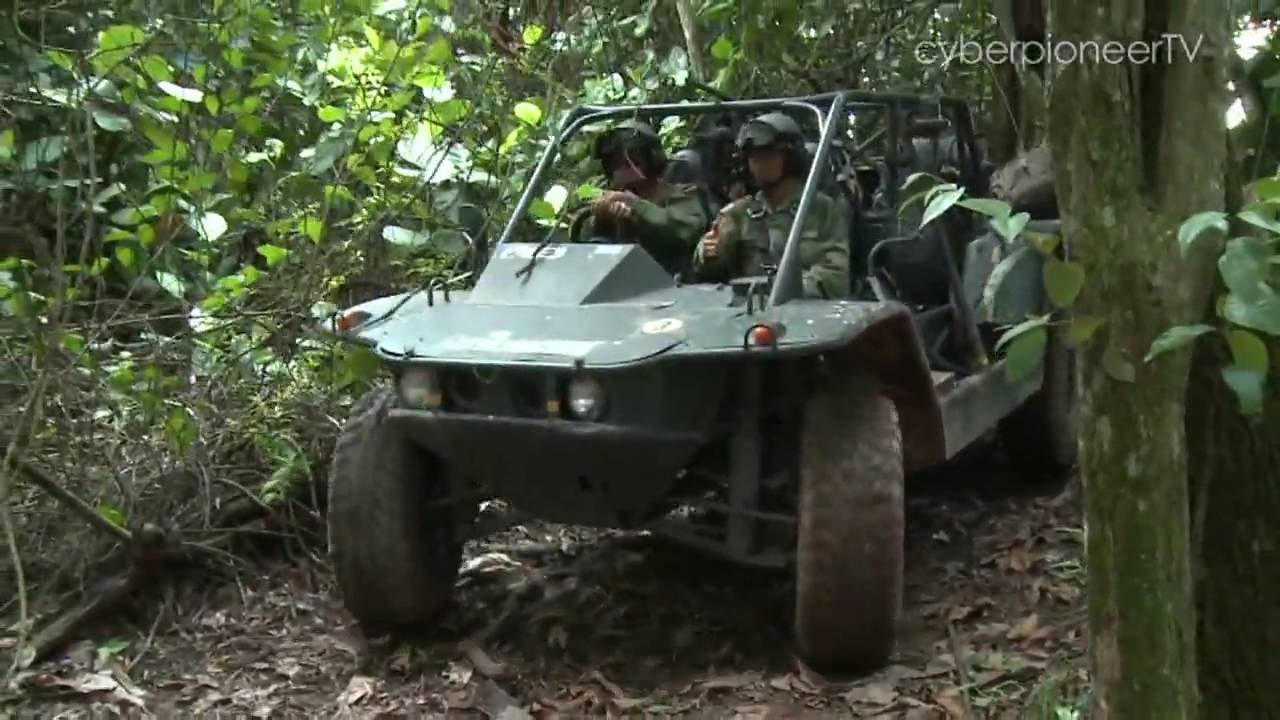

The Light Strike Vehicle (LSV) is a light fast attack vehicle used by the Singapore Army. In 2013, the Singapore designed and made Light Strike Vehicle Mark II (LSV MK.II) entered service to replace the ageing Singapore and Australian made Light Strike Vehicle in service since 1998. The Light Strike Vehicle (LSV) was a US designed vehicle named the Flyer designated R-12D produced in Australia and later in Singapore. The Flyer R-12 high-speed mobility vehicle was originally designed by HSMV Corporation, subsequently purchased by the Flyer Group (now Flyer Defense, a Division of Marvin Group). The Flyer was based on the chassis of the R-1 Rescue All Terrain Transport (RATT). The vehicle is powered by a rear-mounted, 2-litre, 110HP water-cooled turbocharged diesel coupled to a three-speed semi-automatic transmission. The chassis is constructed of welded chrome-moly seamless tubing and a long travel progressive suspension. In 1995, the Flyer R-12D Light Strike Vehicle was a proposal for the cancelled Australian Army project “Mulgara” by Australian Defence Industries (ADI)/ Raceco-HSMV (US). Later, Flyer Defense LLC designed an upgraded Flyer designated the R-12D Flyer 1 which was produced in the US for the Greek Army special forces in left hand drive. A second generation Flyer designated the Flyer 21 was developed by Flyer Defense LLC (also referred to as the Flyer Internally Transportable Vehicle (ITV-1)). The ITV-1 did not enter full production. In 2003, ST Kinetics provided the United Arab Emirates (UAE) with prototype Flyers for a potential contract of between 60 and 90 light strike vehicles. At the Eurosatory 2004 in Paris, the Israeli company Rafael Armament Development Authority unveiled the Mantis high-mobility attack vehicle prototype based on the US produced Flyer ITV-1. The Mantis did not enter full production, however, several prototype Mantis Flyers were successfully deployed in counter smuggling operations along the Israel-Egypt border and tested by special forces. In 2004, the Malaysia government military company DEFTECH formed a partnership with Flyer Defense LLC to market the Flyer Advance Light Strike Vehicle (ALSV) GEN II (variant ITV-1) in the region, after ST Kinetics had commenced developing their own vehicle, the partnership continues today. In 2008, the Indian government military company Ordnance Factory Board (OFB) produced a Flyer ITV-1 prototype with Flyer Defense LLC for the Indian Army Light Support Vehicle (LSV) contract. The vehicle did not enter production.

Ground Specifications
Crew 3
Mobility Type Wheeled (4x4)
Main Weapon 40 mm automatic grenade launcher
Engine 2 liter turbocharged intercooled diesel (104 hp)
Active Protection None
Max Speed 110.0 km/h
Range 350.0 km
Variants
SRAMS 120-mm Super Rapid Advanced Mortar System (SRAMS) with an auto-loader & 6 rounds on vehicle
Ammo Carrier Accompanies the SRAMS with additional crew member
Spider with Spike ATGM Anti-tank weapons carrier
Light Strike Vehicle Mark II The primary role of the LSV MK. II is against armoured threats. It is designed to be helicopter portable and manoeuvrable over cross-country terrain. The vehicle is equipped with enhanced networking capabilities to support the integration with other combat systems during operations.
System
Alternative Designations The Light Strike Vehicle (LSV) was a US designed vehicle named the Flyer designated R-12D produced in Australia and later in Singapore.
Description 4 X 4 dune buggy type vehicle with rollover frame can hold up to 6 passengers in addition to the crew.
Manufacturer Singapore Technologies Kinetics Ltd (ST Kinetics) Australian Defence Industries
Crew 3 ea
Passengers 6 ea
Dimensions
Length 4,250 mm
Width 2,110 mm
Height Top of roll cage: 1,900 mm
Curb Weight 1,500 kg
Payload Capacity 1,000 kg
Automotive
Engine Name Peugeot
Engine Type 2 litre turbocharged intercooled diesel
Engine Power 104 hp
Operational Range 350 km
Speed (Max Road) 110 km/h
Speed (Max Off-Road) 80 km/h
Speed (Average cross-country) INA
Speed (Max Swim) N/A
Fording Depths 0.60 m
Transmission semi-automatic transaxle, 3 forward and 1 reverse gears
Suspension Independent all-round
Main Weapon System

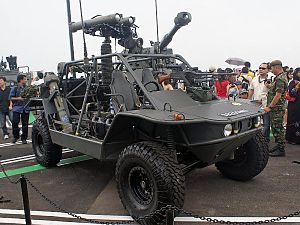

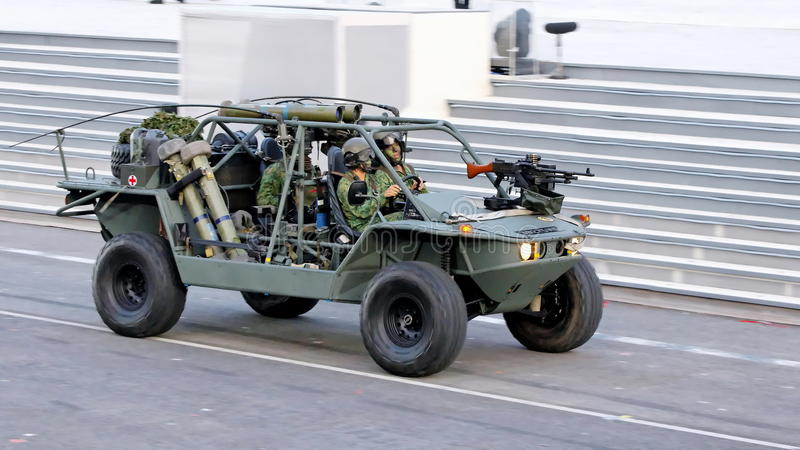

Note A typical weapon installation could be a 7.62mm machine gun forward plus a pedestal mount for a missile launcher or a 40 mm automatic grenade launcher such as the 40AGL. The STK 50 heavy machine gun can also be mounted. Some vehicles in service with the Singapore Army carry a rear-mounted pedestal for two Spike anti-tank guided weapons (ATGW), with stowage for five missiles. Others have been seen with a combined 40 mm AGL and 7.62 mm machine gun mounting supplemented by a pintle-mounted 7.62 mm machine gun, while others have been seen mounting the MILAN ATGW.[
System
Name STK 40 AGL
Type 40 mm automatic grenade launcher
In Service 1991-Present
Manufacturer Chartered Industries of Singapore (now ST Kinetics)
Proliferation Bangladesh Cyprus: Cypriot Army announced purchase of CIS 40 AGLs in 2007. Indonesia: Made under license by PT Pindad for the Indonesian military as Pindad SPG-3 in 1994. Georgia: Used on Nurol Ejder and Otokar Cobra AFVs Papua New Guinea: Used by the Royal Papua New Guinea Constabulary. Philippines: Philippine Army, Philippine Marine Corps Singapore: Used as a main armament on the Bionix 40/50 IFVs.
Length 966 mm
Barrel Length 350 mm
Width 376 mm
Weight 33 kg
Action Blowback operation
Rate of Fire 350-500 rounds/min
Muzzle Velocity 242 m/s
Maximum Firing Range 2,200 m
Feed System Linked belt
Sights Folding leaf sight
Ammunition
Type Grenade
Caliber 40mm
Cartridge 40x53mm grenade
Secondary Weapon System
Note 1–2× FN MAG General-Purpose Machine Guns
Protection
Armor (turret front) None, relies on speed
Applique Armor No
Explosive Reactive Armor No
Active Protection System No
Self-entrenching Blade No
NBC Protection System No
Smoke Equipment INA
Survivability Equipment Off-road mobility, speed, 360°crew fire, & quick dismount for protection
Details
Country of Origin Singapore
Category Tactical Utility Vehicles
Land > Infantry Vehicles > Tactical Utility Vehicles
Filter Label
L
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.25 m
Width
2.11 m
Height
1.9 m
Weight
1500 kg
Operators (9)
United States
Israel
India
Australia
Greece
Indonesia
Malaysia
Singapore
United Arab Emirates
