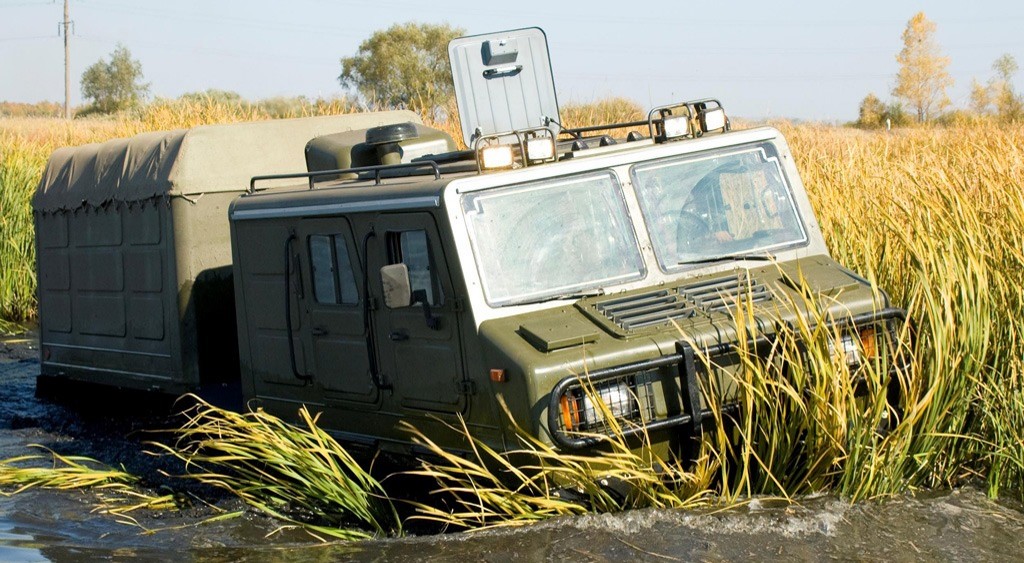

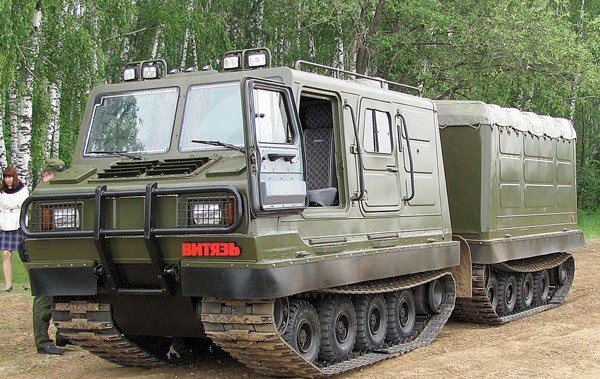

DT-3P Russian All-Terrain Tracked Carrier
DT-3P
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
DT-3P Russian All-Terrain Tracked Carrier
Designation
DT-3P
Alternate Designation
DT-3P
Equipment Type
—
Manufacturer
Ishimbai Transport Machine-Building Plant
Date of Introduction
2012
Description

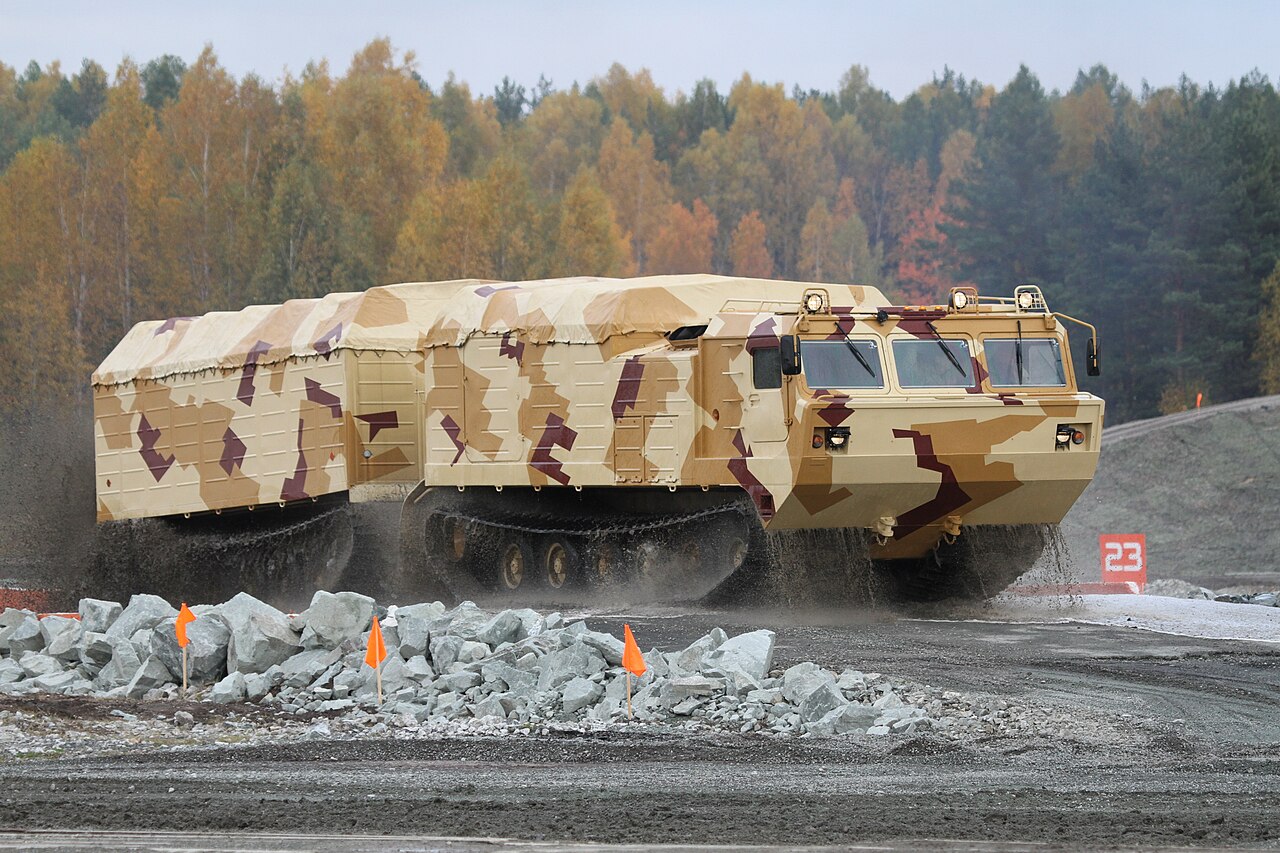

The DT-3P Russian All-Terrain Tracked Carrier is a Russian articulated all-terrain tracked carrier. It is one of the smallest members of Vityaz family of articulated vehicles. It seems that is was developed as a private venture to meet a possible requirement of the Russian Army.
Ground Specifications
Crew
1
Engine
Diesel (240 hp)
Range
700.0 km
Variants

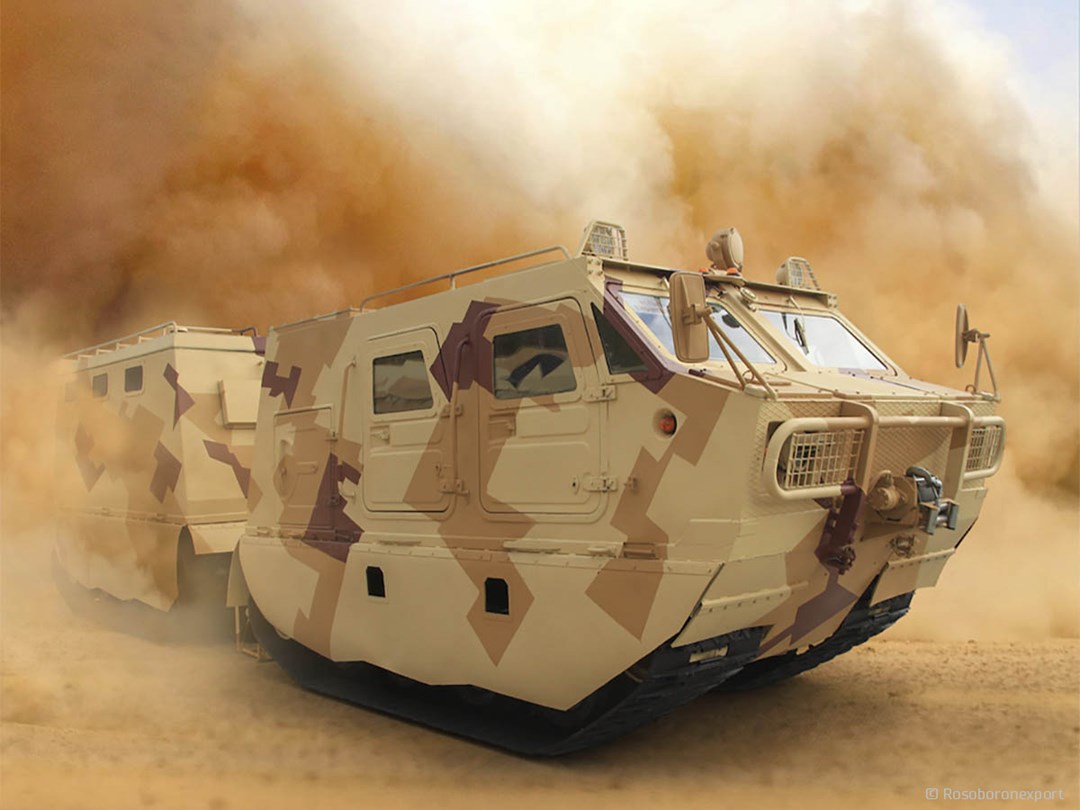

DT-3PB
Armored version of the DT-3P. It has armor plating on all of its bodywork.
DT-3PM
Artic Version.
System
Alternative Designation
DT-3P
Type
All-Terrain Tracked
Manufacturer
Ishimbai Transport Machine-Building Plant
Configuration
Tracked
Design
The DT-3P has a traditional layout for an articulated all-terrain tracked carrier. It has two articulated units, that are connected via articulated joint. All four tracks are constantly driven. The forward unit has a four-door cab and engine compartment. It accommodates driver plus 3 passengers. It has two roof hatches for observation, firing and emergency exit. The rear unit has an open-topped cargo area with only a rear door. It seems that the DT-3P can be fitted with various rear units depending on customer requirements.
Crew
1 ea
Passengers
17 ea
Cargo Capacity
3,000 kg
Note
This vehicle was designed to operate in harsh Northern conditions. The DT-3P has good cross-country mobility over difficult terrain. It can go over snow, mud, sand and swamps.
Dimensions
Length
9.0 m
Width
2.3 m
Height
2.6 m
Weight, Empty
7.3 tons
Automotive
Engine Name
Either a YaMZ-238 or Cummins QSB 6.7
Engine Type
Diesel
Engine Power
240 hp
Maximum Range
700 km
Maximum Road Speed
55 km/h
Maximum Amphibious Speed
6 km/h
Gradient
70%
Side Slope
50%
Vertical Step
0.6 m
Trench
1.5 m
Fording
Amphibious
Note
The DT-3P has a watertight hull. It is amphibious without preparation. On water it is propelled by its tracks.
Main Weapon System
Note
This vehicle can also carry various weapons or specialized equipment.
Protection
Armor
INA
NBC Protection
INA
Smoke Equipment
No
Details
Country of Origin
Russia
Category
Tracked All-Terrain Vehicles
Land > All-Terrain Vehicles > Tracked All-Terrain Vehicles
Filter Label
D
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9 m
Width
2.3 m
Height
2.6 m
Weight
7300 kg
Operators (1)
Russia
