NMS 4x4 Turkish Tactical Light Armored Vehicle
NMS 4x4
Tactical Vehicle
Other
Basic Information
Name
NMS 4x4 Turkish Tactical Light Armored Vehicle
Designation
NMS 4x4
Alternate Designation
NMS 4x4
Equipment Type
Tactical Vehicle
Manufacturer
Nurol Makina
Date of Introduction
2017
Description

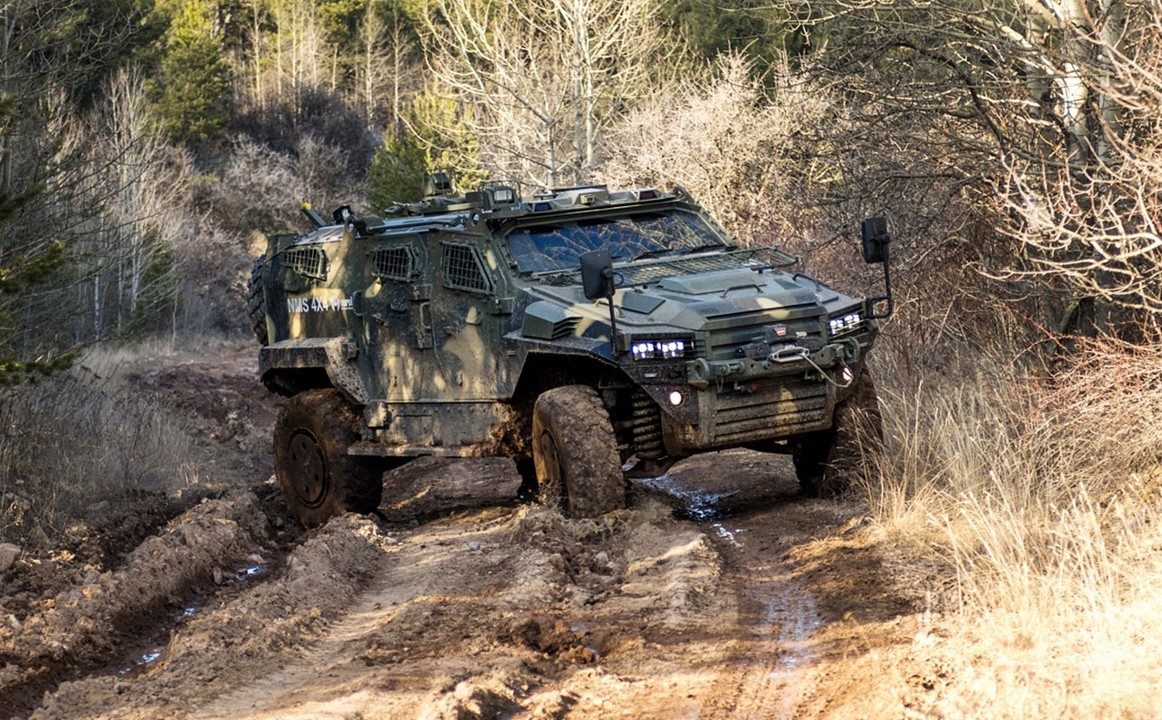

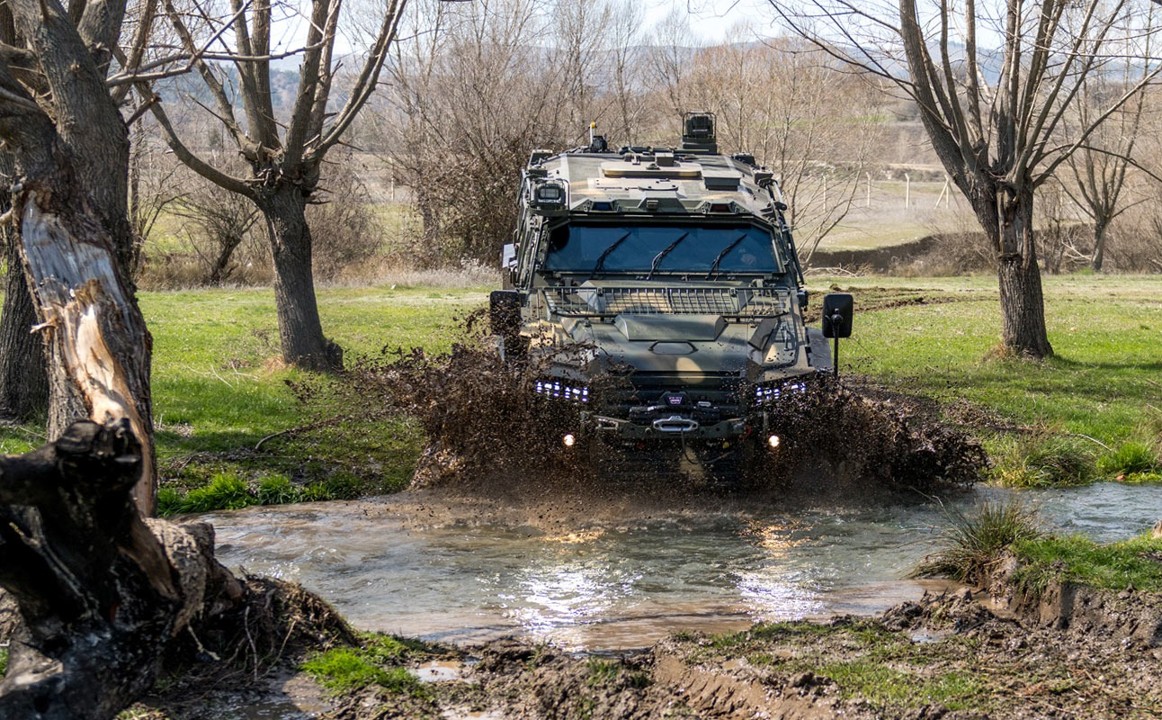

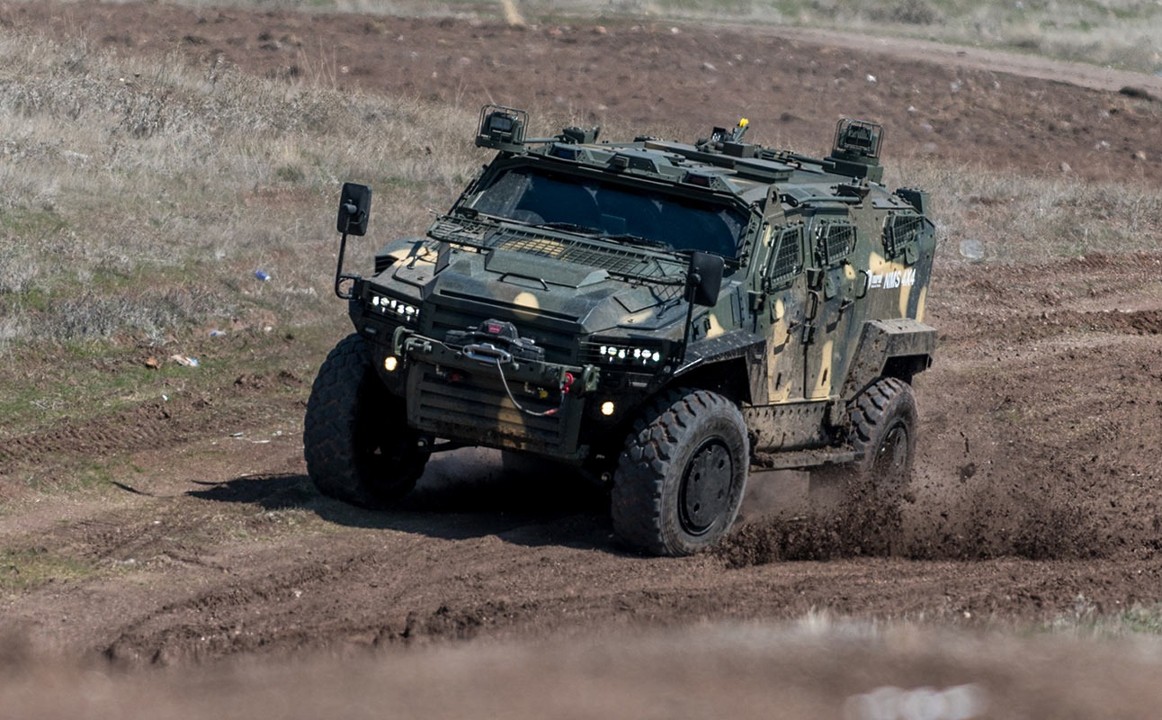

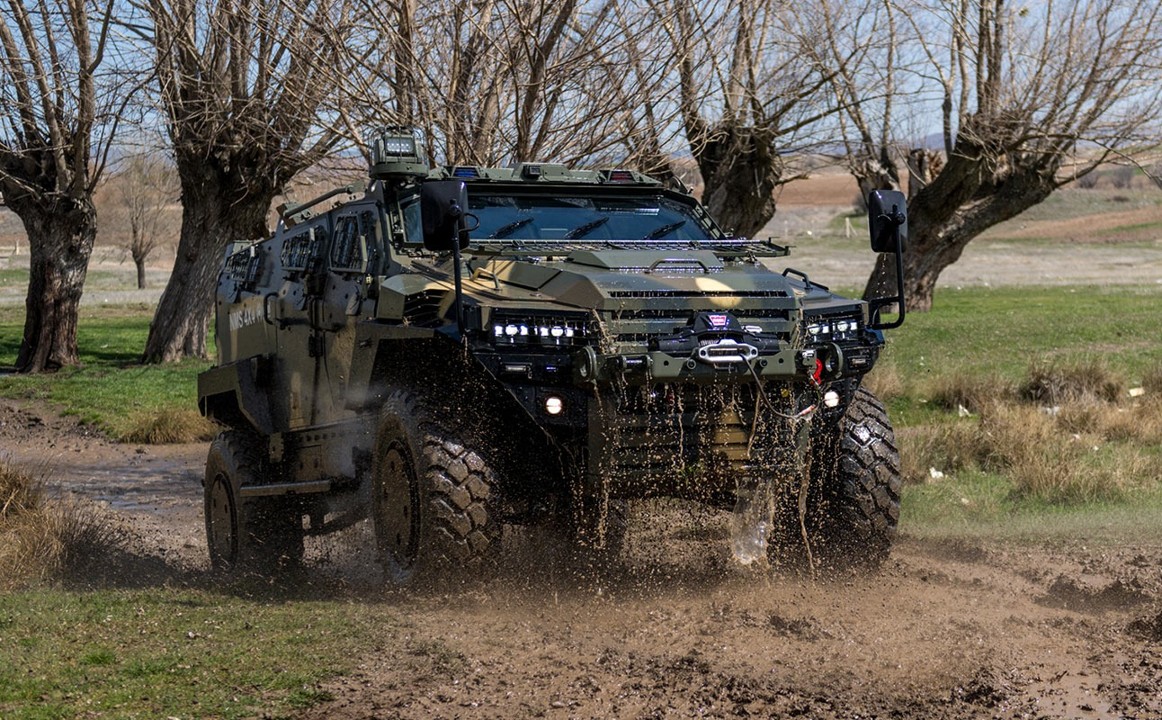

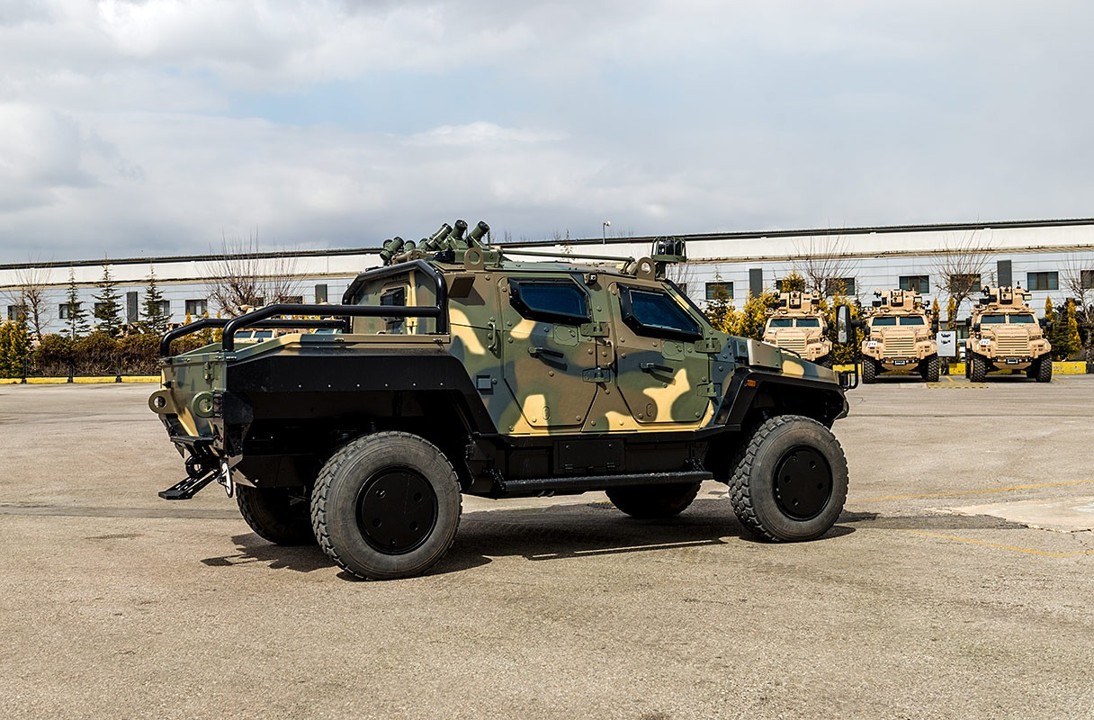

The NMS 4x4 Turkish Tactical Light Armored Vehicle is a Turkish next‑generation, high‑mobility light armored 4×4 designed by Nurol Makina as a modular, mine‑resistant patrol and combat vehicle for military and law‑enforcement roles. It combines MRAP‑like survivability in a much lighter, faster package suited for reconnaissance, convoy escort, and internal security tasks.
Ground Specifications
Crew
2
Mobility Type
Wheeled (4x4)
Engine
Diesel (300 hp)
NBC Protection
Yes
Max Speed
140.0 km/h
Range
700.0 km
Variants
NMS 4x4 (Yörük)
Core tactical light armored vehicle with up to 9‑person capacity, multi‑role (APC, scout, escort, AT/AD carrier).
NMS‑L 4x4
Lighter, heli‑transportable derivative for rapid deployment; crew of 5, similar protection philosophy (mine/IED to STANAG 3a/2b), up to 150 km/h max speed.
NMS Extended Wheelbase (EWB) / specialized variants
configured for command post, medevac, logistics, flatbed weapons carrier, etc.
System
Alternative Designation
NMS 4x4
Type
Tactical Light Armored Vehicle
Manufacturer
Nurol Makina
Configuration
4x4
Crew
2 ea
Passengers
7 ea
Sensors and Electronics
Forward and rear cameras for driver and situational awareness; Optional 360° camera suite and “driver enhancement system”;
Thermal imaging, day cameras, and laser rangefinder depending on RCWS; Military GPS and tracking systems, with integration into C4ISR networks in recent configurations.
Operating Temperature
−32 °C to +55 °C
Dimensions
Length
4.9 m
Width
2.4 m
Height
2.1 m
Weight, Combat
10 tons
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
300 hp
Maximum Range
700 km
Maximum Speed
140 km/h
Amphibious
No
Gradient
70%
Side Slope
40%
Vertical Step
0.5 m
Trench
0.9 m
Fording
0.9 m
Main Weapon System
Note
The NMS 4x4 is built as a modular weapons carrier.

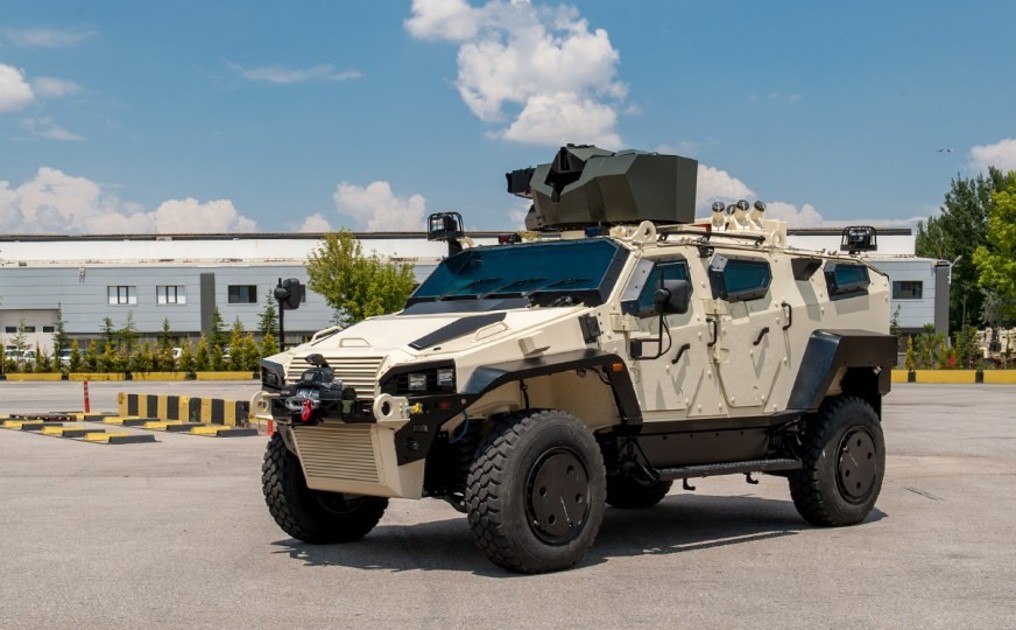

Remote‑Controlled Weapon Station (RCWS) on the roof for: 7.62 mm MG; 12.7 mm HMG; 40 mm automatic grenade launcher (depending on RCWS). Integration provisions for: Anti‑tank guided missiles (ATGMs); Short‑range air‑defense / MANPADS launchers; Heavier stabilized remote turrets (e.g., Venom LR 30 mm chain gun + ATGMs on upgraded demonstrator).
Protection
Armor
V‑shaped monocoque hull on an indigenous 4×4 chassis to deflect blast. Exact STANAG level is customer‑selectable; the design supports scalable ballistic and mine/IED protection to NATO STANAG 4569 standards.
Ballistic Protection
Ballistic protection around STANAG 4569 Level 2 in baseline demos, with higher levels achievable via armor kits. Ballistic glass windscreens and windows
Mine Protection
Mine protection in the Level 3a / 2b class for blast under wheel and under hull, depending on configuration (similar to the lighter NMS‑L).
Applique Armor
Modular, composite add‑on armor to scale protection for mission and threat level.
NBC Protection
Yes
Smoke Equipment
INA
Image Sources
Details
Country of Origin
Turkey
Category
Wheeled Light Armored Vehicles
Land > Infantry Vehicles > Wheeled Light Armored Vehicles
Filter Label
N
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.9 m
Width
2.4 m
Height
2.1 m
Weight
10000 kg
Operators (3)
Turkey
Estonia
Qatar
