2S35-1 Koalitsiya-SV-KSh Russian 152mm Self-Propelled Howitzer (SPH)
2S35-1 Koalitsiya-SV KSh
Self-Propelled Howitzer (SPH)
Other
Basic Information
Name
2S35-1 Koalitsiya-SV-KSh Russian 152mm Self-Propelled Howitzer (SPH)
Designation
2S35-1 Koalitsiya-SV KSh
Alternate Designation
2S35-1 Koalitsiya-SV KSh
Equipment Type
Self-Propelled Howitzer (SPH)
Manufacturer
Central Research Institute Burevestnik
Date of Introduction
2016
Description

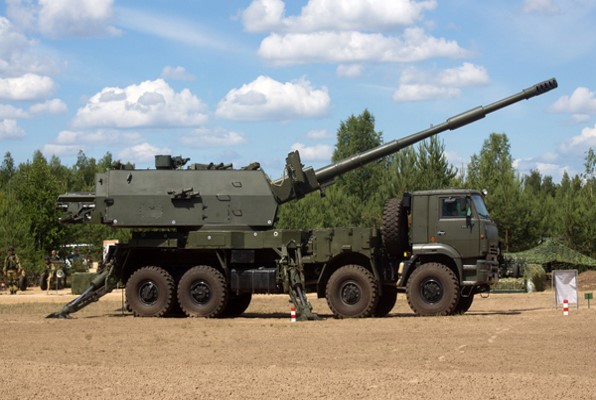

The 2S35-1 Koalitsiya-SV KSh is a new Russian 152mm Self-Propelled Howitzer. Developed by JSC Central Research Institute Burevestnik, the 2S35-1 Koalitsiya-SV KSh is mounted on an 8x8 KAMAZ-6560 truck chassis and has the same turret and fires the same ordinance as its predecessor the 2S35-1 Koalitsiya-SV.
Ground Specifications
Crew
3
Mobility Type
Wheeled (8x8)
Main Weapon
152mm Howitzer
Engine
Diesel (400 hp)
Max Speed
90.0 km/h
Range
1000.0 km
System
Alternative Designation
2S35-1 Koalitsiya-SV KSh
Manufacturer
Burevestnik Central Scientific Research Institute
Type
Self Propelled Howitzer (SPH)
Family
2S35
Crew
3 ea
Chassis
The KamAZ-6560 is a heavy-duty military truck.
Chassis Configuration
8x8
Estimated Service Life
30 years
Emplacement Time
1.5 min
Displacement Time
less than 1 min
Note
This artillery system can be seen as a less expensive and more mobile alternative to the tracked version.
Dimensions
Length (Truck Only)
10.3 m
Width (Truck Only)
2.5 m
Height (Truck Only)
3.27 m
Weight, Combat
48-55 tons
Ground Pressure
INA kg/m
Note
Chassis is based off the The KamAZ-6560
Automotive
Engine Name
KamAZ-740.35
Engine Type
Diesel
Engine Power
400 hp
Cruising Range
1,000 km
Speed, Maximum Road
90 km/h
Speed, Maximum Off-Road
INA km/h
Speed Maximum Swim
Not Amphibious km/h
Gradient
60 deg
Side Slope
40 deg
Vertical Step
0.6 m
Trench
2.0 m
Fording Depth
1.8 m
Communications
Name
R-168-25U-2
Type
VHF
Quantity
2 ea
Frequency
30-180 MHz
Capabilities
FH Voice Data Retrans
Maximum Range
25-40 km
Mount Type
Vehicle
Length
205 mm
Width
175 mm
Height
95 mm
Weight
3 kg
Main Gun
System
Name
152 mm/L52 2A88 Howitzer
Type
152 mm
Breech Type
Vertical sliding wedge
Length, Barrel
INA mm
Loader Type
Automated with a pneumatic rammer
Max Rate of Fire
16 rds/min
Normal Rate of Fire
12 rds/min
Muzzle Brake
Double baffle
Recoil System
Yes
Bore Evacuator
Yes
Max Elevation
+70 deg
Min Elevation
-7 deg
Traverse Range
360 deg
Maximum Firing Range (Precision-Guided Rounds)
80 km
Maximum Firing Range (Standard Rounds)
40 km
Time to Fully Reload
15 min
Ignition System
Microwave ignition system
Note
The Koalitsiya-SV KSh is also capable of firing older Krasnopol precision guided munitions with a range of 20 km.
Ammunition (Option 1)
Type
152-mm Frag-HE, OF-72
Caliber
152 mm
Muzzle Velocity
864 m/s
Fuse Type
RGM-2 PD
Basic Load
65 Total Rounds of any 152mm combination projectile ea
Effective Range
24 km
Projectile Weight
43 kg
Ammunition (Option 2)
Type
152-mm Frag-HEAT, BP-540
Caliber
152 mm
Muzzle Velocity
655 m/s
Fuze Type
GPV-3 PD
Basic Load
65 Total Rounds of any 152mm combination projectile
Maximum Effective Range
27 km
Complete Projectile Weight
27 kg
Ammunition (Option 3)
Type
152-mm Frag-HE BB, OF-91
Caliber
152 mm
Muzzle Velocity
828 m/s
Fuze Type
KZ-88 PD
Basic Load
65 Total Rounds of any 152mm combination projectile
Maximum Effective Range
29 km
Complete Projectile Weight (OF-61)
42.86 kg
Note
The 2S19 can fire the additional 152mm projectiles: 9K25 Krasnopol guided projectile and the 3-RB-30 radio jamming round
Auxiliary Weapon System
System
Name
12.7×108mm ZiD Kord Remote weapon station
Type
12.7 mm
Manufacturer
V.A. Degtyarev Plant
In Service
1998-Present
Length
1,980 mm
Max Rate of Fire
650-600 rds/min
Sustain Rate of Fire
550-600 rds/min
Action
Gas-operated, rotating bolt
Feed System
50-round linked belt
Sights
Iron Sights with two sighting options, known as CAM and CAM1
CAM 1 Capability
TV/IR camera and a laser rangefinder
CAM 2 Capability
TV camera, Thermal Camera and laser rangefinder
Variants
6P50-1, 6P50-2, 6P50-3, 6P49
Note
Remote weapon cocking capability
Ammunition
Type
Rifle
Caliber
12.7 mm
Cartridge
12.7×108 mm
Muzzle Velocity
860 m/s
Basic Load
2,500 ea
Effective Range
2,000 m
Fire Control
Name
INA
Computerized FCS
Yes, with Automatic targeting and charge selection system.
Thermal Sight Vehicle Commander
Yes, CAM 1 (TV/IR camera, Thermal Camera and a laser rangefinder)
Thermal Sight Gunner
Yes, CAM 2 (TV/IR camera, Thermal Camera and a laser rangefinder)
Main Gun Stabilization
INA
Multiple Round, Simultaneous Impact (MRSI) Capable
Yes
Direct Fire
Yes
Indirect Fire
Yes
Radars
2 ea
Radar Type
Doppler
Protection
Hull Armor
composite laminate design up to 200 mm thick mm
Turret Armor
composite laminate design up to 200 mm thick. The Turret is not heavily Armored mm
Applique Armor
Available
Explosive Reactive Armor
Available, the Kontakt-V Explosive Reactive Armour.
Active Protection System
INA
Mine Clearing
No
Self-Entrenching Blade
Yes, can dig 12 m × 5.5 m × 1.5 m entrenchment in sandy soil within 12 to 15 minutes.
NBC Protection
Reported to be the GO-27 PRKhR (NBC) System
Fire Suppression System
Reported to be the Raduga-2 Fire Suppression System
Smoke Equipment
Yes, 2 bundles of 902B Tucha smoke grenade launchers
Smoke Grenade Range
250-300 m
Smoke Screen
30 m wide and 10 m high for 60 seconds per grenade
IR Signature
INA
Details
Country of Origin
Russia
Category
Self-Propelled Gun/Howitzer Artillery Systems
Land > Artillery > Self-Propelled Gun/Howitzer Artillery Systems
Filter Label
2
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
10.3 m
Width
2.5 m
Height
3.27 m
Weight
48000 kg
Operators (1)
Russia
