Nimr Emirati 4x4 Light Utility Vehicle

Hafeet 620

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Nimr Emirati 4x4 Light Utility Vehicle
Designation
Hafeet 620
Alternate Designation
Hafeet 620
Equipment Type
Manufacturer
Nimr LLC
Date of Introduction
2005
Description

The Nimr (Arabic: نمر‎; meaning Tiger) is a family of all-terrain military armored personnel carrier (APC) vehicles, co-developed with GAZ and produced by Nimr LLC in the United Arab Emirates. The Nimr is designed specifically for military operations in the harsh desert climates found in the Middle East. Currently the Nimr is produced in the UAE by Nimr Automotive, and can be considered as an Emirati vehicle. The company is currently a leading manufacturer of tactical military vehicles in the Middle East and North Africa. In 2012 UAE and Algeria signed an agreement for production of armored version of the Nimr in Algeria. Since 2015 the Nimr Automotive is a part of Emirates Defense Industries Company (EDIC), which incorporates a number of UAE's defense manufacturers. In concept the Nimr is similar to the US HMMWV, though there are some differences between the two. Currently newer version of this vehicle are produced. The Nimr is a purpose designed military vehicle with good cross-country mobility. In terms of size and payload capacity the Nimr fits the gap between jeeps and light trucks. It can carry loads of up to 2 750 kg, depending on the version. The Nimr can also tow trailers and light artillery pieces. The baseline Nimr accommodates driver plus 3 passengers. It has got a cargo area are at the rear. However there are numerous versions of this military vehicle with different cabs, different body types and seating configurations. There is a version that accommodates driver plus 7 passengers. In 2005 a 6x6 version of this tactical vehicle was revealed. There are armored versions of the Nimr. These vehicles provide protection for the crew against small arms fire, artillery shell splinters and explosions. An NBC protection system was proposed as an option. The Nimr can carry various weapon. Some versions have a universal gun mount ring on top of the roof and can be armed with a 7.62 mm, or 12.7 mm machine gun, or 40 mm automatic grenade launcher. The Nimr is powered by a 5.9-liter Cummins ISBe 250 turbocharged diesel engine, developing 250 hp. Vehicle has a permanent all-wheel drive. The Nimr comes as standard with a central tyre inflation system. It improves mobility over difficult terrain, such as sand. It is also fitted as standard with run-flat tyres. Winch was proposed as an option. The Nimr can be airlifted by a C-130 Hercules military transport aircraft. The 4x4 version can be also airlifted underslung by a CH-53 helicopter.

Ground Specifications
Crew 1
Mobility Type Wheeled (4x4)
Main Weapon 7.62 mm, or 12.7 mm machine gun, or 40 mm automatic grenade launcher
Engine Diesel (250 hp)
Max Speed 135.0 km/h
Range 700.0 km
Variants

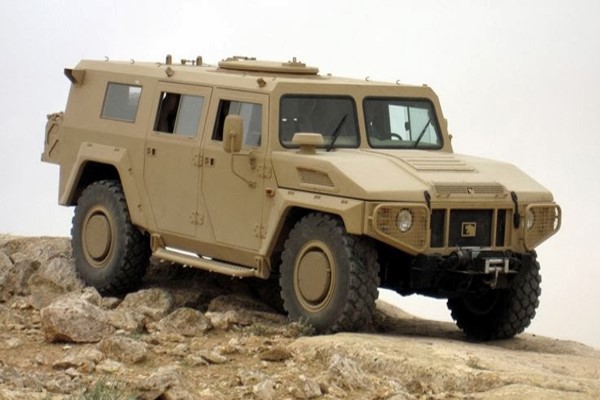

Armored personnel carrier Fully enclosed 10-seat armored body.
Hafeet 620A Armor protected version. Length: 6.92m Width: 2.35m Height: 2.33m Wheelbase: 3.92m Gross weight: 15mt Range: 600km Crew: 2 Operating temps: -19C-+49C Turning radius: 20m
Hafeet 620A Water Tank Vehicle A WEW 2.3m3 water tank with its own pumping and UV radiation module. Introduced in 2017.
Hafeet 630A An armored version configured as artillery support vehicles in both observation and command and control configuration.
Hafeet 640A Armored version with a double cab
Hafeet Air Defense Vehicle (ADV) Based on the Hafeet 640A. Rear chassis is fitted with the MBDA Multi Purpose Combat System (MPCS), the turret of which comprises a gyro-stabilized day/thermal sensor suite with integrated laser rangefinder and four IR Mistral missiles. Introduced in 2015.
System
Alternative Designation Hafeet 620

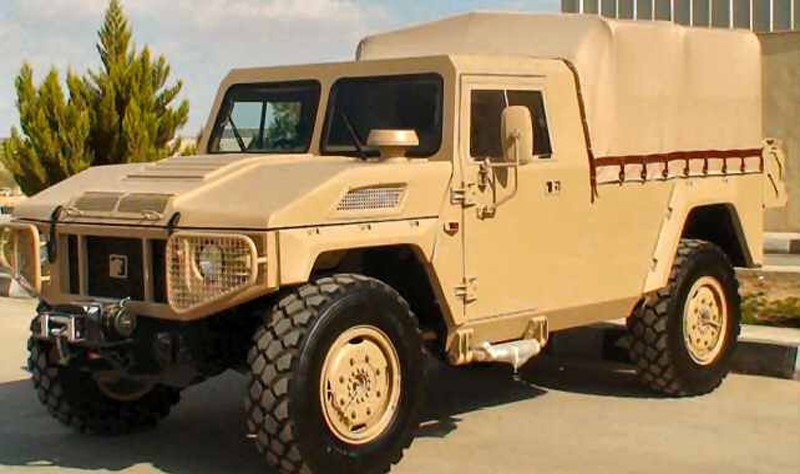

Description cargo/troop carriers, automatic weapon platforms, ambulances, missile carriers, communication/shelter carriers and other roles.
Proliferation Algeria, Egypt, Jordan, Lebanon, Libya, Tunisia, UAE
Crew 1 ea
Passengers 3 ea
Note #1 The Nimr can also tow trailers and light artillery pieces.
Note #2 There is a version that accommodates driver plus 7 passengers.
Dimensions
Length, 5.5 m
Width 2.2 m
Height 2.5 m
Weight, empty 6.25 tons
Payload Capacity 2.75 tons
Automotive
Engine Name Cummins ISBe 250
Engine Type Diesel
Engine Power 250 hp
Maximum Road Speed 135 km/h
Maximum Range 700 km
Gradient 60 %
Side Slope 40 %
Vertical Step 0.5 m
Trench 0.5 m
Fording 1.2 m
Main Weapon System
Note The Nimr can carry various weapon. Some versions have a universal gun mount ring on top of the roof and can be armed with a 7.62 mm, or 12.7 mm machine gun, or 40 mm automatic grenade launcher.
System
Name Caracal Assault Rifle 817
Alternative Designation CAR 817
Date of Introduction 2016
Country United Arab Emirates
Manufactuer Caracal International company
Caliber 7.62 mm
Length, Stock Extended 884 mm
Length, Stock Retracted 802 mm
Barrel Length 406 mm
Weight, Without Magazine 3.3 kg
Muzzle Velocity 750 m/s
Cyclic Rate of Fire 650-750 rds/min
Practical Rate of Fire 30-90 rds/min
Magazine Capacity 10, 20, 25 rounds
Range of Effective Fire 600 m
Sight Iron
Ammunition
Type Rifle
Caliber 7.62 mm
Cartridge 7.62x51 mm
Protection
Armor protection for the crew against small arms fire, artillery shell splinters and explosions.
Applique Armor Option
Explosive Reactive Armor No
Active Protection System INA
NBC Protection Optional
Smoke Equipment Available
Details
Country of Origin United Arab Emirates
Category Tactical Utility Vehicles
Land > Infantry Vehicles > Tactical Utility Vehicles
Filter Label
N
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.92 m
Width
2.35 m
Height
2.5 m
Weight
6250 kg
Operators (7)
Algeria
Egypt
Jordan
Lebanon
Libya
Tunisia
United Arab Emirates
