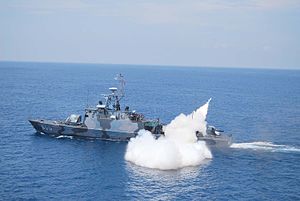

FPB-57 Nav V Class German Fast Patrol Boat (FPB)
FPB-57 Nav V Class
Patrol Boat
Other
Basic Information
Name
FPB-57 Nav V Class German Fast Patrol Boat (FPB)
Designation
FPB-57 Nav V Class
Alternate Designation
FPB-57 Nav V Class
Equipment Type
Patrol Boat
Manufacturer
PT.PAL
Date of Introduction
2000
Description
FPB-57 or Fast Patrol Boat 57 m or Fast Patrol Boats 57 m or PB-57 (because not all high speed) is a draft patrol boat made by Liirssen , Germany . In the agreement, PT. PAL, which originally only assembled this ship in Surabaya , also obtained the right to produce the design of this ship. Furthermore, this ship has been made in Surabaya. In Germany it started with the Albatros class fast patrol boat , where in Germany itself in 2005 , some ships in this class had been retired or sold to Tunisia. It is the last generation of FPB-57. This shipbuilding is fully carried out by PT. PAL Surabaya. These ships include: *KRI Todak (803) , was inaugurated in 2000 *KRI Shark (804) , was inaugurated in 2000 *KRI Layang (805) , was inaugurated in 2003 *KRI Lemadang (806) , was inaugurated in 2004
Naval & Littoral Specifications
Crew
42
Beam
7.62 m
Draft
4.75 m
Variants

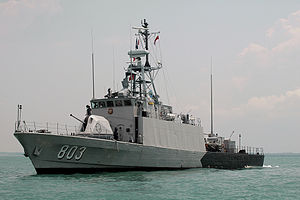

KRI Todak (803)
Commissioned: 2000
Status: Active

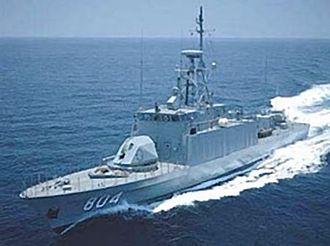

KRI Shark (804)
Commissioned: 2000
Status: Active
KRI Layang (805)
Commissioned: 2003
Status: Active

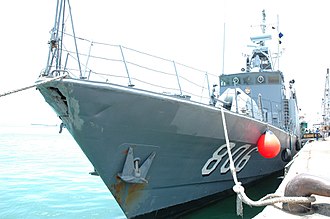

KRI Lemadang (806)
Commissioned: 2004
Status: Active
System
Alternative Designation
FPB-57 Nav V Class
Type
Fast Patrol Boat
Builder
PT.PAL
Crew
42 ea
Note
In the near future, the Pandrong class and the Todak class will be equipped with C 802 anti-ship missiles made in China with a maximum reach of 130 km.
Dimensions
Length
58.10 m
Beam
7.62 m
Draft
4.75 m
Displacement, Standard
445 tons
Displacement, Full Load
INA
Propulsion System
Engine Name
2 X Diesel Engines
Engine Type
Diesel
Engine Power
8,850 bhp
Maximum Range
2,200 nm at 27 knots
6,000 nm at 15 knots
Maximum Speed
28.1 kn (52.0 km / h; 32.3 mph) (maximum)
Fuel Capacity
INA
Main Gun System
Radar/Optronic Director
LIROD MK2
LIROD MK2 Description
LIROD MK2 is a flexible and compact sensor system, most suitable as an accurate, low cost, all-weather tracker for fire control systems.
LIROD MK2 Details
The system has been designed for as the primary gun control system onboard of smaller ships, against both surface and air targets, and as a secondary system in larger configurations. With an appropriate gun, it is suitable for CIWS functions. LIROD Mk2 is also capable of controlling short-range missiles.
The radar system operates in the K-band, and applies a new, powerful TWT transmitter to improve the performance under adverse conditions. The antenna is of an ellipsoid design to achieve the best low elevation performance against sea-skimming targets, while maintaining fast target acquisition against manoeuvring targets.
System
Name
Bofors 57 mm l/L70 Naval Gun
Type
Naval Gun
Caliber
57 mm
Quantity
1 x Bofors 57 mm l/L70 Naval Gun
Barrel Length
3,990 mm
Weight
14,000 kg
Barrels
Single barrel (progressive RH parabolic twist, 24 grooves)
Action
Electronic firing
Elevation
−10°/+78°
Traverse
Full 360°
Rate of Fire
200 rounds/min
Muzzle Velocity
1,035 m/s
Maximum Firing Range
17,000 m
Effective Firing Range
8,500 m
Feed System
40 ready rounds, 128 rounds in ready racks in mount
Sights
Gyro-stabilized in local control.
Ammunition
Type
Rifle
Caliber
57mm
Shell
INA
Basic Load
INA
Auxiliary Weapon Systems
Auxiliary Weapon System #1
Name
Bofors 40 mm gun
Type
Anti-Aircraft Autocannon
Caliber
40mm
Quantity
4 x Bofors 40 mm Anti-Aircraft Autocannon
Length
6.5 m
Barrel Length
2.2 m
Width
1.8 m
Height
1.9 m
Weight
1,981 kg
Barrels
1 or 2[
Traverse
360°
Rate of Fire
120 round/min
Muzzle Velocity
881 m/s
Maximum Firing Range
7,160 m
Auxiliary Weapon System #1 Ammunition
Type
Rifle
Caliber
40mm
Shell
40×311mmR
Basic Load
INA
Auxiliary Weapon System #2
Name
Rheinmetall Mk 20 Rh-202
Type
Autocannon
Caliber
20mm
Quantity
2 x Rheinmetall Mk 20 Rh-202 Autocannons
Length
2612 mm
Height
241 mm
Weight
83 kg
Action
Gas unlocked blowback
Rate of Fire
880 to 1,030 rpm
Muzzle Velocity
1,044 m/s with HEI
1,100 m/s with AP
Effective Firing Range
1,600 m against high flying aircraft
2,500 m against ground targets
Auxiliary Weapon System #2 Ammunition
Type
Rifle
Caliber
20mm
Shell
20 × 139 mm
Basic Load
INA
Torpedo System
Launcher
Launching Tubes
2 x Torque launch tubes Ø 533 millimeters (20.98 in)
Torpedos
Name
AEG SUT
Type
Surface & Underwater Target guided torpedo
Speed
23 knots
Range
28 km
Fire Control Systems
FCS Name
INA
Computerized FCS
No
Battle Management System
No
Aircraft Facilities
Note
The FPB-57 Nav V Class is equipped with a flight deck and hangar at the rear for the NBO-105 Class Helicopters.
Radar Systems
Navigation Radar
INA
Scout Surface Radar
Racal Decca / Signaal Scout surface radar
Sonar
Name
PHS-32
Type
Hull Mounted
Protection
Active Protection System
Yes, DR200S system for defense against guided missiles
Countermeasures
Yes, Feeder ( Countermeasures ) Dagie decoy RL
NBC Water Washdown System
Yes
Image Sources
Note
https://m.facebook.com/189489124459021/photos/a.189557091118891/192104740864126/?type=3; https://www.shipspotting.com/photos/gallery?limit=192&limitstart=192&search_title=&search_title_option=&search_imo=&search_pen_no=&search_mmsi=&search_eni=&search_callsign=&search_category_1=&search_cat1childs=&search_uid=120963&search_country=&search_port=&search_subports=&search_flag=&search_homeport=&search_adminstatus=&search_classsociety=&search_builder=&search_buildyear1=&search_owner=&search_manager=&sortkey=p.lid&sortorder=desc&page_limit=192&viewtype=4; https://www.quora.com/Which-are-the-best-ships-in-the-world; https://id.pinterest.com/pin/570268371575383012/
Details
Country of Origin
Germany
Category
Naval
Naval
Filter Label
F
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
58.1 m
Width
7.62 m
Height
—
Weight
445000 kg
Operators (3)
Germany
Indonesia
Tunisia
