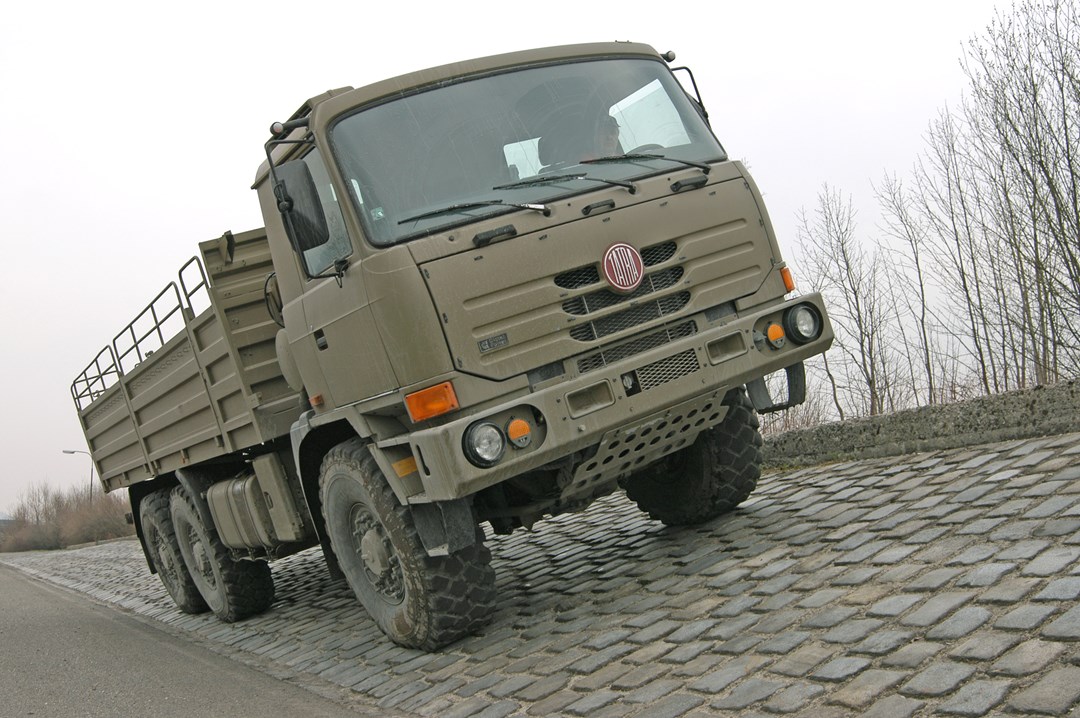

ARMAX 6x6
ARMAX 6x6
Military Trucks
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
ARMAX 6x6
Designation
ARMAX 6x6
Alternate Designation
T 815-26MR25/31T, T 815-26RR36, T 815-26WR25/10T, T 815-26WV25/10T, T 815-29ON3T
Equipment Type
Military Trucks
Manufacturer
TATRA
Date of Introduction
—
Description
The ARMAX 6x6 variant includes several versions with an engine output of 255 kW, payload ranging from 14,500 to16,000 kg, max gross vehicle weight of 26,000 kg and a max gross train weight of 48,000 kg.
Ground Specifications
Mobility Type
Wheeled (6x6)
Max Speed
85.0 km/h
Range
1000.0 km
Overview (Deagel)
Group
Military Trucks
Status
Active
Also Known As
T 815-26MR25/31T, T 815-26RR36, T 815-26WR25/10T, T 815-26WV25/10T, T 815-29ON3T
Origin
Czechia
Contractor
TATRA
Total Production
?
Specifications (Deagel)
Wheel Drive
6
Wheels
6
Degree — Approach Angle
36 °
Degree — Departure Angle
37 °
Dimensions — Ground Clearance
360 millimeter
Dimensions — Height
3.2 meter
Dimensions — Length
8.6 meter
Dimensions — Track
2.0 meter
Dimensions — Width
2.5 meter
Energy — Max Torque
1,570 Nm
Mass — Cargo
16,000 kilogram
Mass — Max Gross Train Weight
48,000 kilogram
Mass — Max Weight
26,000 kilogram
Percentage — Gradient
75 %
Percentage — Side Slope
45 %
Performance — Ditch Crossing Ability
0.90 meter
Performance — Fording Depth
1.2 meter
Performance — Max Range
1,000 kilometer
Performance — Step Climbing Ability
0.50 meter
Performance — Turning Radius
10.5 meter
Power — Power
255 kW
Speed — Top Speed
85 kph
Volume — Fuel Tank Capacity
420 liter
Variants
Variant 1
ARMAX 4x4
Variant 2
ARMAX 6x6
Variant 3
ARMAX 8x8
Details
Country of Origin
Czech Republic
Sources
deagel.com: https://www.deagel.com/x/x/a002518
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.6 m
Width
2.5 m
Height
3.2 m
Weight
48000 kg
Related Equipment (1)
Variant of
Operators (1)
Czech Republic
