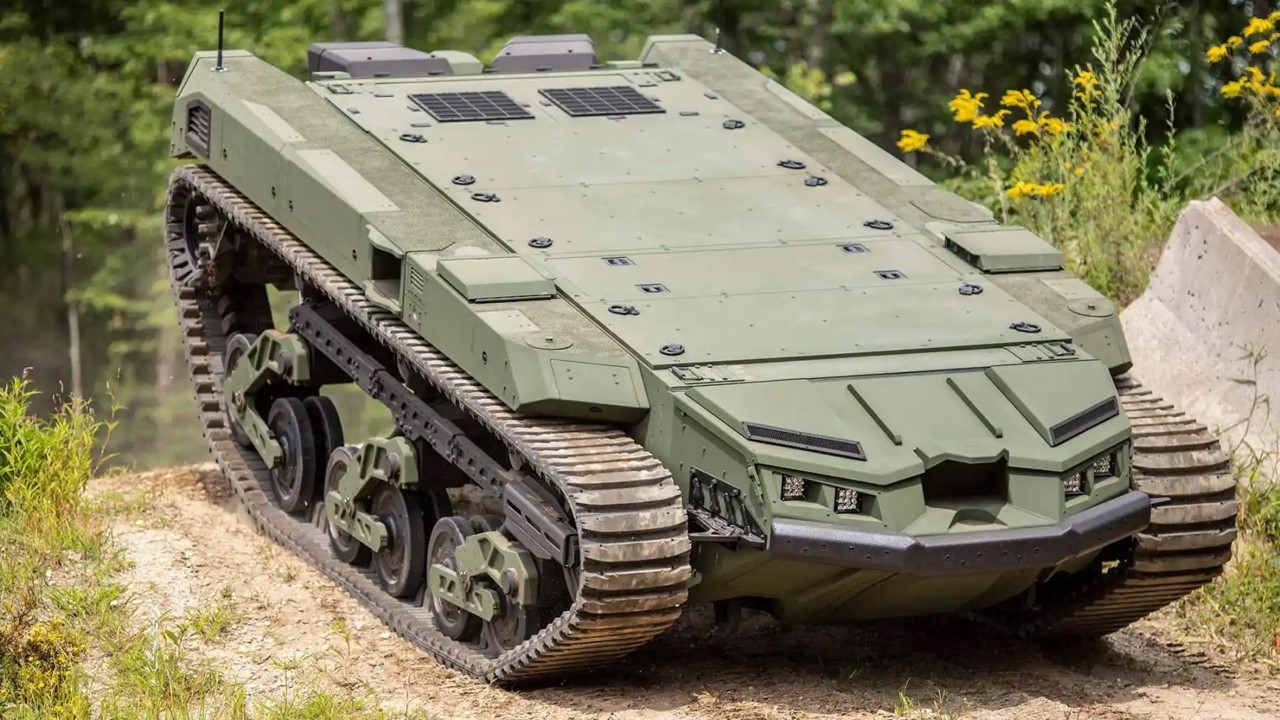

Ripsaw M5 American Unmanned Ground Vehicle (UGV)

Ripsaw M5

Unmanned Ground Vehicle (UGV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Ripsaw M5 American Unmanned Ground Vehicle (UGV)
Designation
Ripsaw M5
Alternate Designation
Ripsaw M5
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Textron Systems
Date of Introduction
2025
Description

The Ripsaw M5 American Unmanned Ground Vehicle (UGV) brings together rapid innovation and proven technological execution, the Ripsaw M5 represents the fifth generation of the Ripsaw platform. It is designed as a multi-mission robotic wingman, intended to extend the reach of U.S. Army forces and operate beyond the limits of human endurance. Its capacity for silent movement and high-speed maneuvering makes it ideal for modern battlefields, where surprise, speed, and stealth define success. It also provides critical advantages in contested environments, enabling commanders to gather ISR data, neutralize threats, and conduct tactical maneuvers without placing soldiers directly in harm’s way. Engineered with an open architecture and a flat-deck design, the Ripsaw M5 supports rapid integration of mission-specific payloads, including anti-tank missiles, electronic warfare modules, and intelligence, surveillance, and reconnaissance (ISR) systems. Textron’s design philosophy behind the M5 reflects years of experience in unmanned ground systems, leveraging certified safety frameworks and multi-domain combat integration. The vehicle is not only a product of innovation but also a testament to mature program execution, combining robust industrial support with real-world deployment readiness.

Ground Specifications
Mobility Type Tracked
Main Weapon Bushmaster Mk44 30mm/40mm cannon
Max Speed 64.0 km/h
System
Alternative Designation Ripsaw M5
Type Unmanned Ground Vehicle (UGV)
Manufacturer Textron Systems
Configuration Track
Crew Unmanned
Payload Capacity 3,629 kg
Dimensions
Length 5.94 m
Width 2.67 m
Height 1.51 m
Weight, Combat 10.5 tons
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Maximum Range INA
Maximum Speed 64 km/h
Main Weapon System

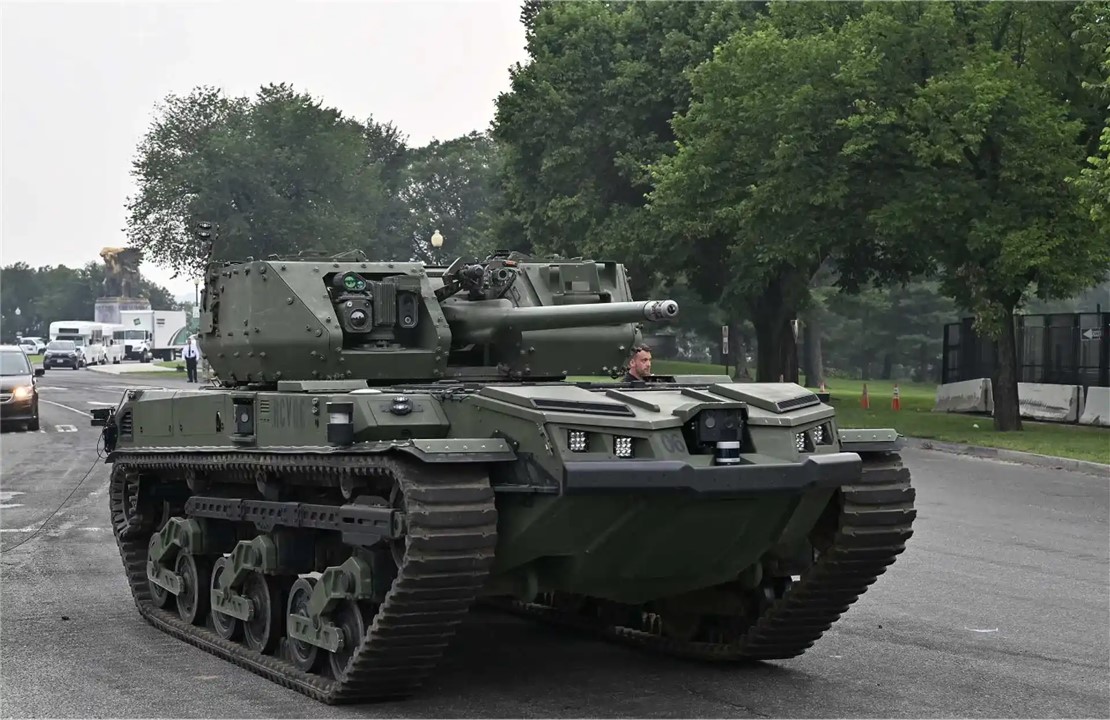

Note What truly empowers the Ripsaw M5 is its integration with the Kongsberg MCT-30 remote turret. This combat-proven system is armed with the Bushmaster Mk44 30mm/40mm cannon and a coaxial 7.62mm machine gun, paired with advanced targeting sensors and electro-optics that ensure accurate day and night operations. The turret supports airburst munitions and can be upgraded to a 40mm caliber configuration, enhancing its lethality and adaptability. Its compact profile and fully digital interface allow it to be mounted on unmanned platforms like the Ripsaw M5 without compromising performance or control.
Protection
Armor INA
Applique Armor INA
NBC Protection No
Smoke Equipment INA
Details
Country of Origin United States
Category Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.94 m
Width
2.67 m
Height
1.51 m
Weight
10500 kg
Operators (1)
United States
