IPX600 Norwegian Tactical Router

IPX600

Tactical, Handheld, Software-defined Radio (SDR)
Spotted an error? Sign in to suggest an edit.
IPX600 Norwegian Tactical Router
Other

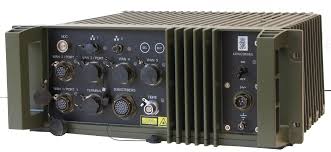

Kongsberg_IPX_600_TacLAN(A).jpgTRADOC ODIN WEG
Thumbnail
Thumbnail
Basic Information
Name
IPX600 Norwegian Tactical Router
Designation
IPX600
Alternate Designation
IPX600
Equipment Type
Tactical, Handheld, Software-defined Radio (SDR)
Manufacturer
—
Date of Introduction
2017
Description

TACTICAL ROUTER/MEDIA GATEWAY The Link Between EriTac and IP Networks IPX600 is a high capacity Router and TDM switch with a range of functions. IPX600 is the main networking component of K-TaCS, Tactical Communication System from KONGSBERG. IPX600 integrates IP networks and legacy tactical networks and Provides IP networks with Military Gateways. IPX600 is a configurable media gateway and router, supporting a range of different interfaces. IPX600 provides a wide range of IP and circuit switched network services. Its small size and low weight together with its inherent properties for communication readiness, makes IPX600 particularly suitable for communicationn between tactical units frequently on the move. Management is performed through the Communication Management System CMS. CMS is an intuitive, easy to use menu based system. Predefined configurations may be used. IPX600 is fully ruggedised, designed for harsh environments.

Ground Specifications
Crew 1
System
Alternative Designation IPX600
Type Tactical Router
Crew 1 ea
Port Connections 5 x WAN 2 x LAN 1 x Fibre 1 x Operation and Maintenance
Subscribers 15 x Legacy Telephones 100 x VoIP Telephones
Protocols SIP Q.931/QSIG RIPv2 and RIPng STANAG 4206 OSPFv2 and OSPFv3 STANAG 4578 Ed.1 BGP CPX Trunk Group PIM-SM PIM-SSM RTP NTP
Services IPv4 and IPv6 DHCP Server /Client Call Handling NTP Server SIP Telephones Remote Management From CMS
Interfaces Ethernet: 10/100BASE-T/TX ITU-T: V.11 256, 512, 1024, 2048, 4096, 8192, 8448 kbit/s ITU-T: G.703 256, 512, 1024, 1544, 2048, 4096, 8192, 8448 kbit/s EUROCOM D/1: 256, 512, 1024, 2048, 4096, 8192, 8448 kbit/s STANAG 4206: 256, 512 kbit/s STANAG 4578 Ed. 1: 2048 kbit/s Fibre: 1 Gbit/s
Power Supply Input Voltage: 19-32 VDC Power consumption: 100 W
Operating Temperature -40ºC to +55ºC
MIL-STD Environment: MIL-STD 810 EMC: MIL-STD 461
Features •Integrated Call Control, supports up to 100 VoIP telephones • Voice, data and management service integration with legacy EriTac (circuit switched) and TacLAN (Combat level IP system) • Supports traditional EriTac/EUROCOM terminals • Media Gateway supporting SIP , STANAG, ISDN and EUROCOM GWs, enabling for example calls between Eurocom and Voice over IP subscribers • Multimedia access unit via Optical Fibre or Radio Lin
Dimensions
Height 177 mm
Width 483 mm
Depth 350 mm
Weight, Combat 19 kg
Image Sources
Notes https://www.kongsberg.com/globalassets/kongsberg-defence--aerospace/2.1.-products/defence-and-security/defence-communications/datasheets/ipx600-data-sheet-2015-08.pdf;
Details
Country of Origin Norway
Category Tactical Routers
Land > Communication Equipment > Tactical Routers
Filter Label
I
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
0.48 m
Height
0.18 m
Weight
19 kg
Operators (4)
United States
United Kingdom
Australia
Norway
