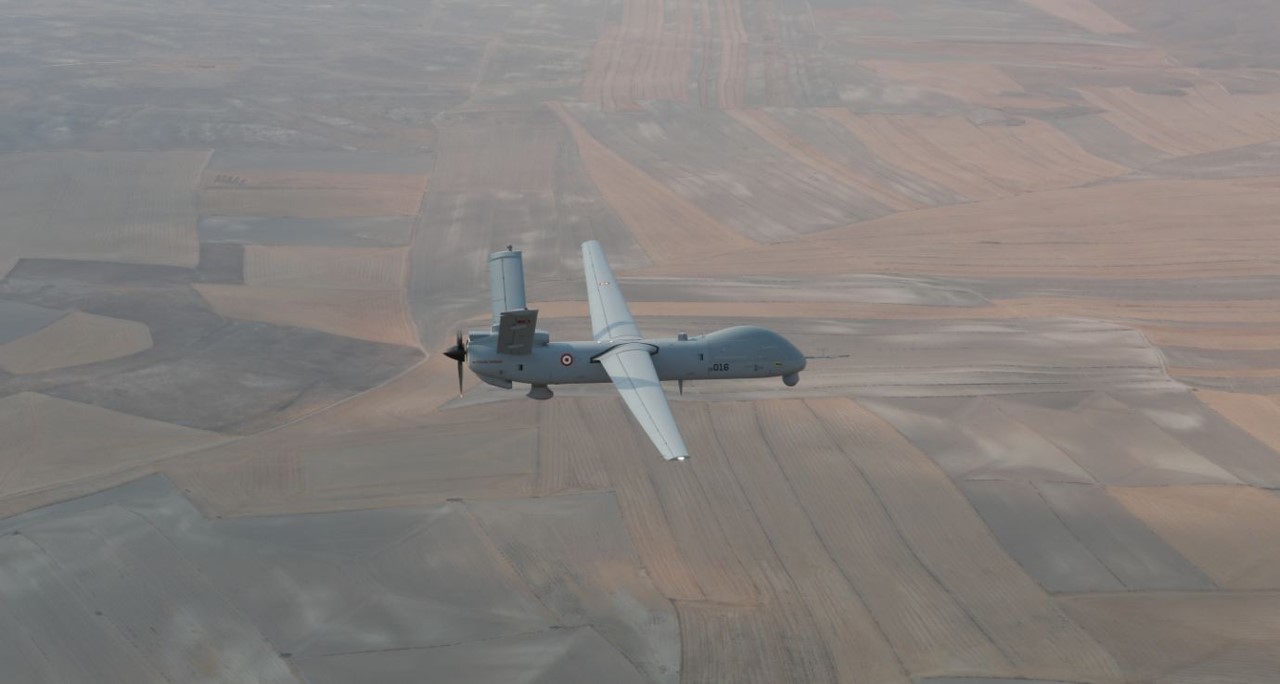

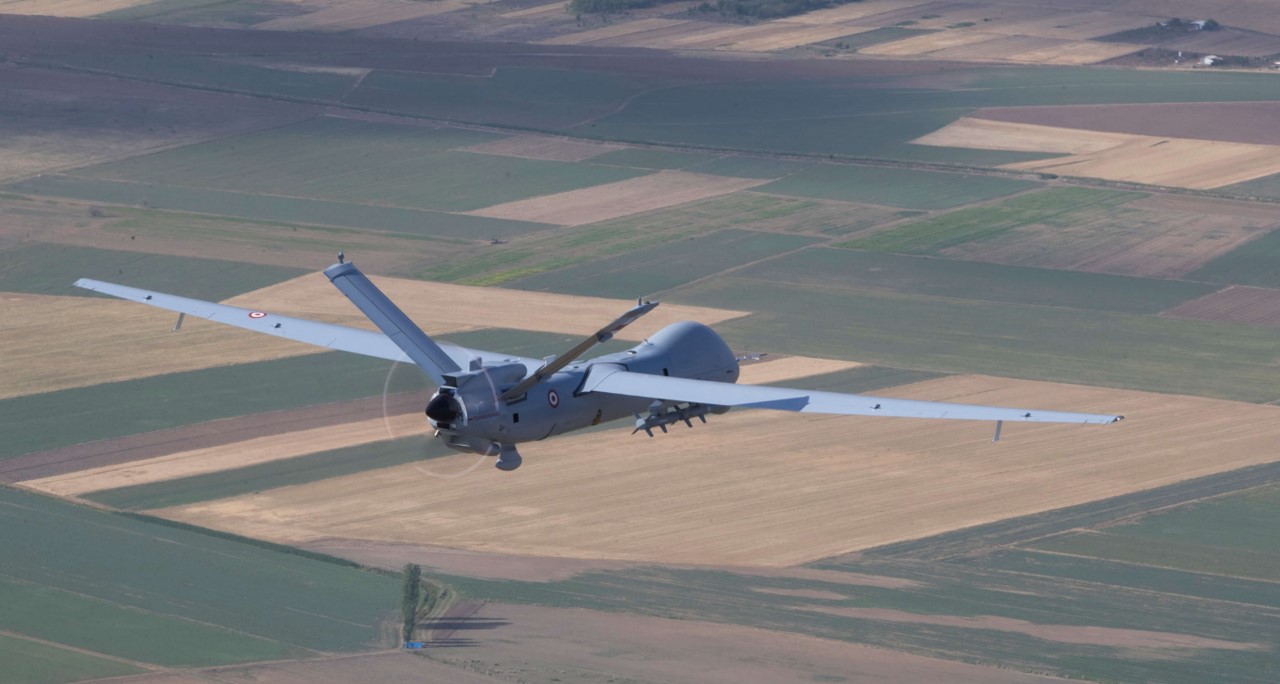

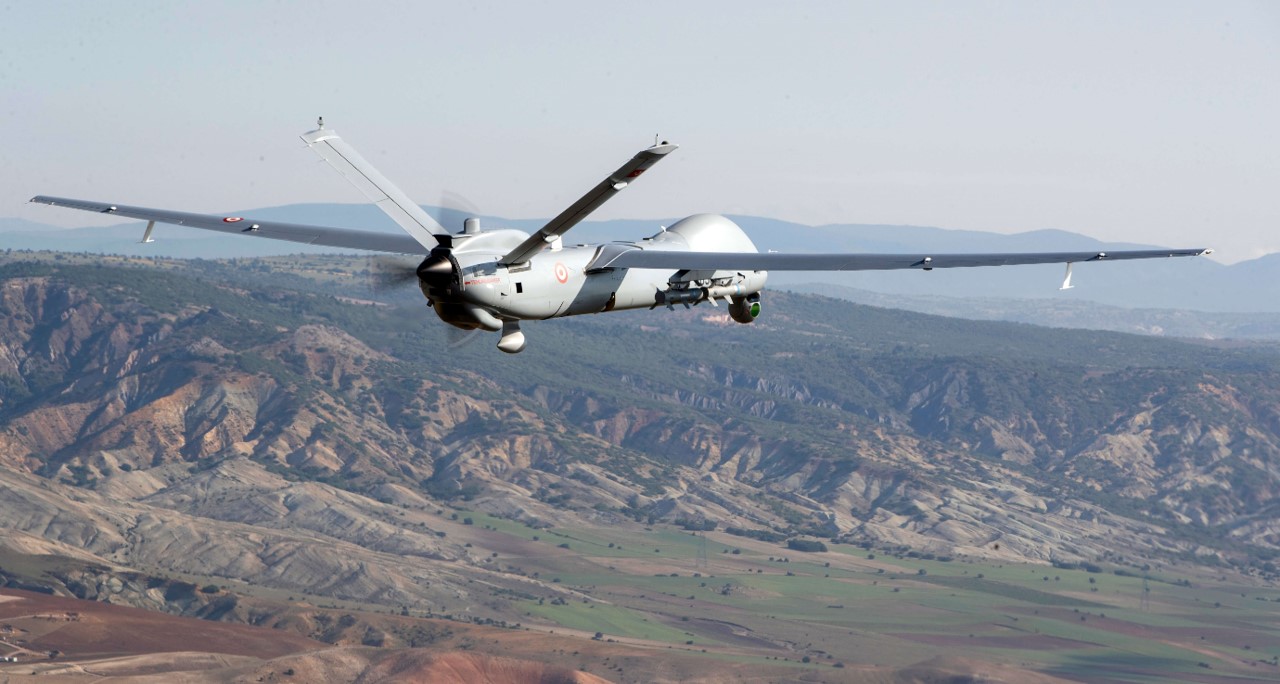

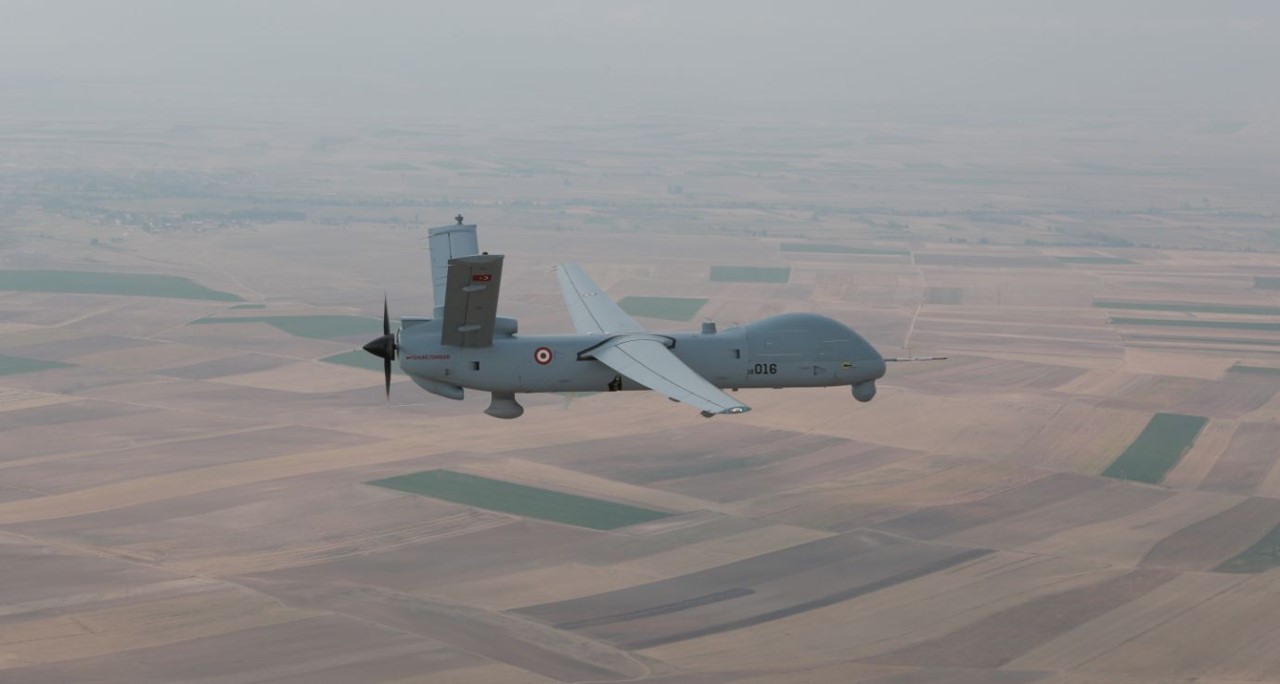

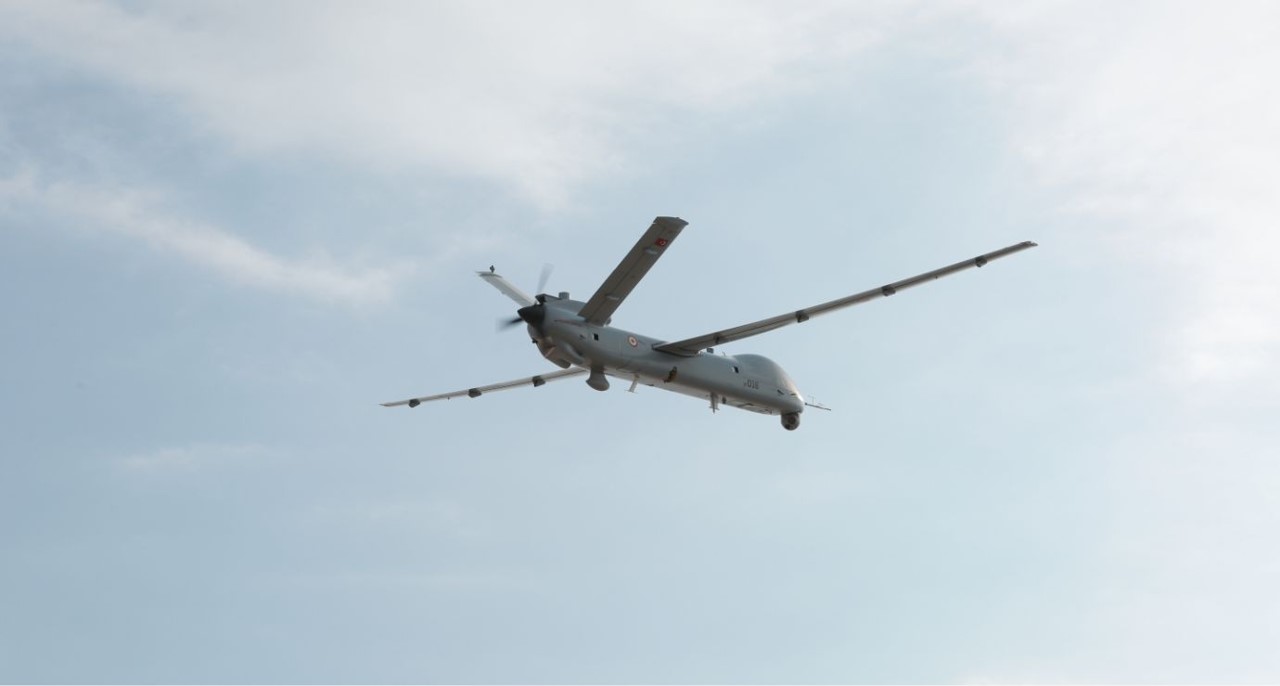

Anka Turkish Unmanned Aerial Vehicle (UAV)

Anka

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Anka Turkish Unmanned Aerial Vehicle (UAV)
Designation
Anka
Alternate Designation
Anka
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Turkish Aerospace
Date of Introduction
2010
Description

The Anka Turkish Unmanned Aerial Vehicle (UAV) was designed by engineers at Turkish Aerospace, with support from various domestic subcontractors. The ANKA completed its assembly and production process and was officially unveiled during a ceremony at Turkish Aerospace facilities on July 16, 2010. Shortly after leaving the hangar, ANKA's engine was successfully started, demonstrating its status as one of the leading operational systems in its category worldwide. The ANKA made its maiden flight on December 30, 2010. In October 2013, a serial production contract for ten aircraft under the ANKA-S program was signed. The efforts in the ANKA-S Project were completed successfully, leading to the system's entry into serial production. The ANKA fleets boast a high mission readiness rate and have been integrated into the inventories of various end-users, accumulating over 400,000 flight hours. Our organization, which has introduced many innovative advancements in our country, continues to operate in the UAV field across multiple regions worldwide, delivering various UAV systems to end-users as part of our international activities.

Air & Air Defense Specifications
Max Speed 215.0 km/h
Endurance 30.00 hrs
Service Ceiling 9144 m
Wingspan 17.50 m
Payload Capacity 350 kg
System
Alternate Designation Anka
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Turkish Aerospace
Payload Capacity 350 kg
Features Features: - Fully Autonomous Operation - Fully Redundant Architecture - Automatic Take-Off and Landing System - Multi-Payload Configurations - Digital Data Links with Encryption - Common Avionics Architecture and Ground Segment compatible with AKSUNGUR and ANKA III - DO-178B Compliant Software - DO-254 Compliant Hardware - Ice Protection System
ISR EO/IR Camera, SAR/GMTI-ISAR Radar
Electonric Warfare ELECTRONIC WARFARE: COMINT, ELINT, ESM (Electronic Support Measure), EA (Electronic Attack), ComJam (Communication Jamming)
Weapons Precision Guided Bombs, Laser Guided Rockets, Anti-Tank Missiles
Operation Support SATCOM, Radio Relay, Air Launched Drone, AIS (Automatic Identification System), PLS (Personnel Locator System), ELT (Emergency Locator Beacon), RVT (Remote Video Terminal), TCAS (Traffic Collision Avoidance System)
Dimensions
Length 8.6 m
Height 3.25 m
Wingspan 17.5 m
Maximum Takeoff Weight 1,700 kg
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Maximum Speed 215 km/h
Datalink Range 250 km
Service Ceiling 9,144 m
Endurance 30 hours
Details
Country of Origin Turkey
Category UAVs
Air > UAVs
Filter Label
A
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
8.6 m
Width
17.5 m
Height
3.25 m
Weight
1700 kg
Operators (1)
Turkey
