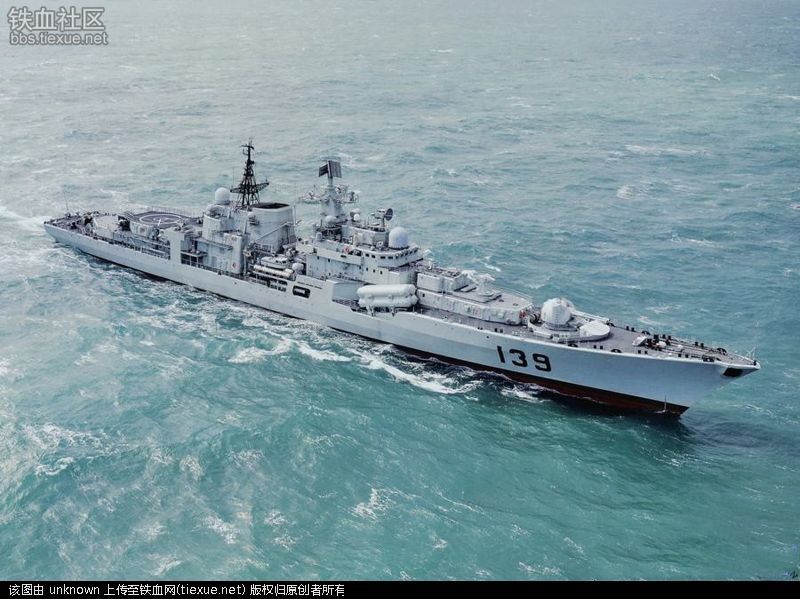

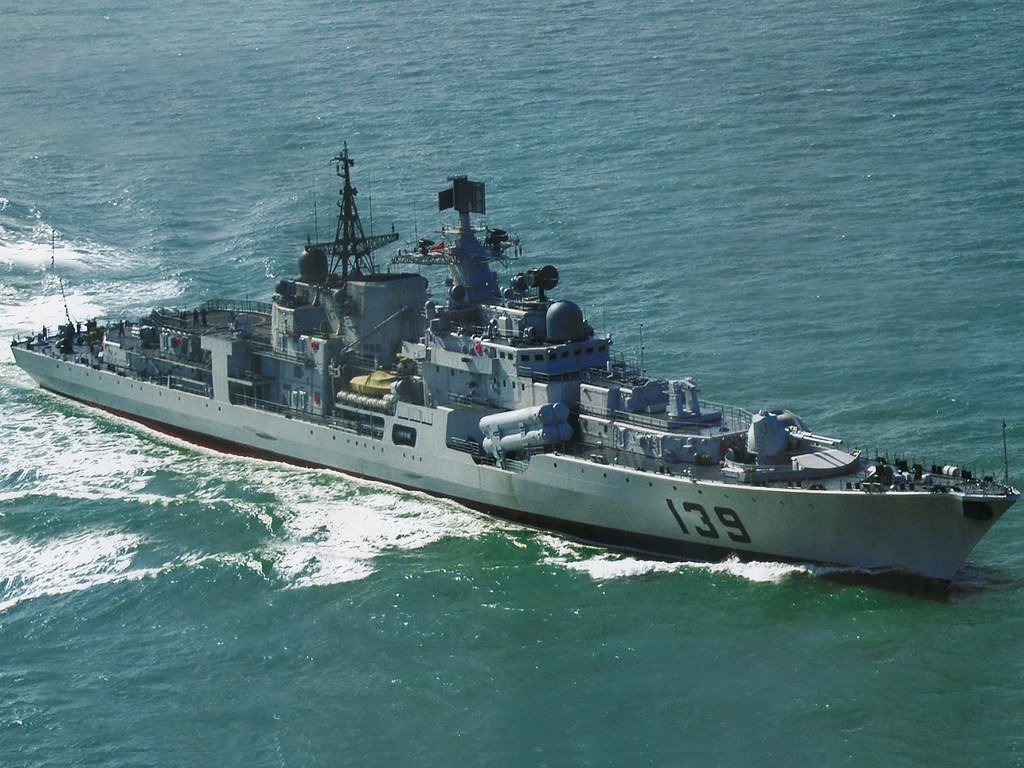

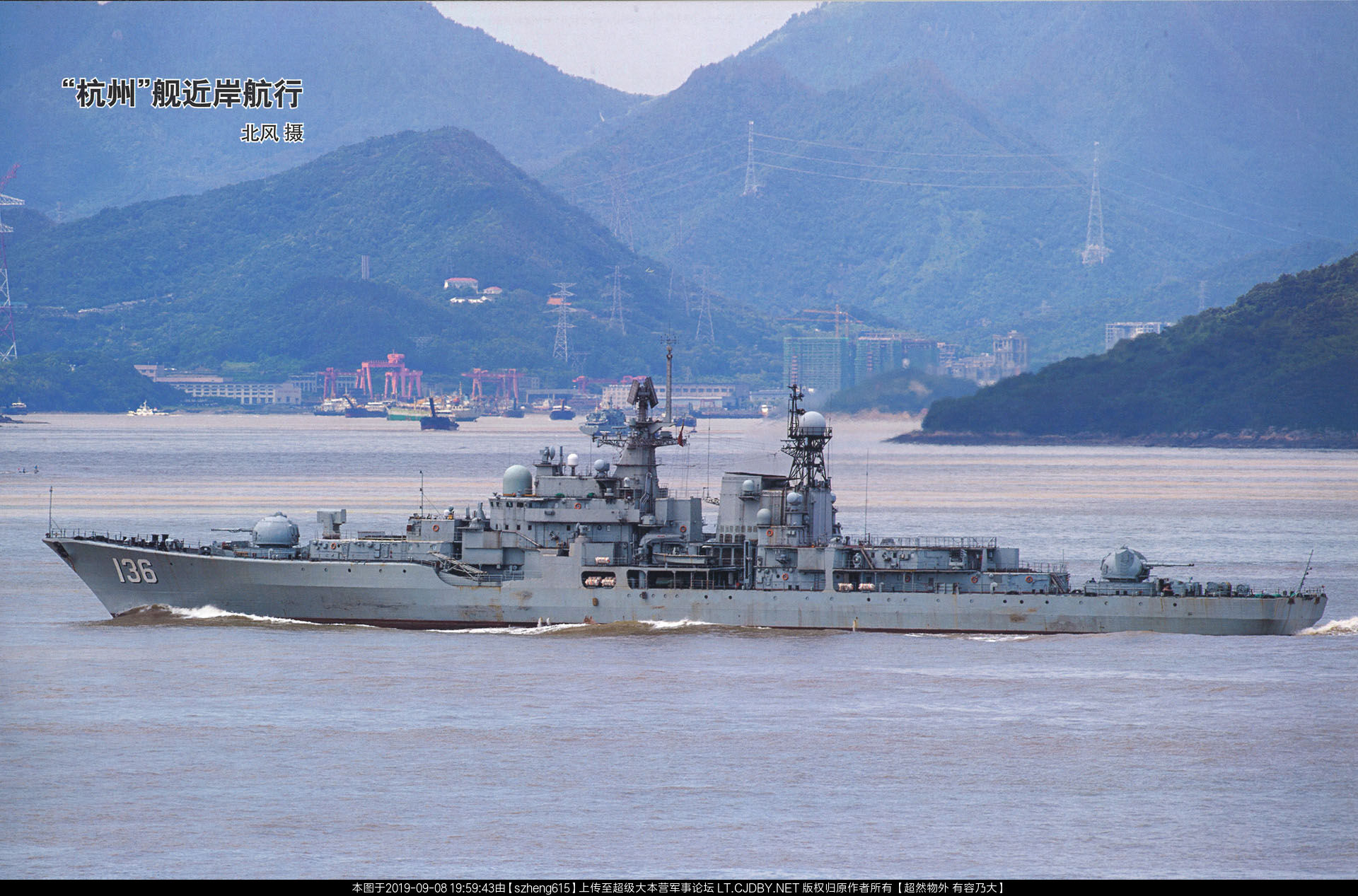

Type 956E Class (Hangzhou Class) Chinese Guided Missile Destroyer
Hangzhou Class
Guided Missile Destroyer
Other
Basic Information
Name
Type 956E Class (Hangzhou Class) Chinese Guided Missile Destroyer
Designation
Hangzhou Class
Alternate Designation
Hangzhou Class; Type 956E Class
Equipment Type
Guided Missile Destroyer
Manufacturer
—
Date of Introduction
1999
Description
The Type 956E Class (Hangzhou Class) Chinese Guided Missile Destroyer
Naval & Littoral Specifications
Crew
296
Beam
17.20 m
Draft
7.90 m
Variants
Hangzhou (ex-Vazhnyy)
Commissioned: 1999
Status: Active
Fuzhou (ex-Vdumchivyy)
Commissioned: 2000
Status:Active
Taizhou (ex-Vnushitelnyy)
Commissioned: 2005
Status: Active
Ningbo (ex-Vechnyy)
Commissioned: 2006
Status: Active
System
Alternative Designation
Hangzhou Class; Type 956E Class
Type
Guided Missile Destroyer
Builder
Zhdanov Shipyard
Crew
296 (25 off. + 271 enl.)
Accomodation
368 (38 off. + 330 enl.)
Dimensions
Length
156.4 m
Beam
17.2 m
Draft
7.9 m
Displacement, Light
6,500 tons
Displacement, Standard
7,940 tons
Displacement, Full Load
8,480 tons
Propulsion System
Engine Name
2 x TV-12
Engine Type
Geared Steam Turbines
Engine Power
110,000 total shp
Boiler
4 x turbo pressurised Type KVN-98/64, 640 kg/sq cm, 500 deg Celsius
Fuel Capacity
1,740 tons + 5 tons aviation
Maximum Range
1,345 nm at 32.7 kts, 3,920 nm at 18 kts
Maximum Speed
63 km/h (34 knots)
Endurance
30 days
Gun Weapon Systems
Gun Weapon System #1
Name
AK-630
Type
Naval Close-In Weapon System
Caliber
30 mm
Quantity
4 x 30-mm/65 cal. (AK-630M) Gatling CIWS
Length
INA
Barrel Length
1,629 mm
Width
1,240 mm
Height
1,070 mm
Weight
1,000 kg
Crew
1
Action
Gas-operated rotary cannon
Elevation
+88° ... -12° (50°/sec)
Traverse
±180° (70°/sec)
Rate of Fire
4,000–5,000 rounds/min
Muzzle Velocity
880–900 m/s
Maximum Firing Range
The projectiles self-destruct past 5,000 m
Effective Firing Range
4,000 m (aerial)
5,000 m (maritime)
Feed System
Belt:
2,000 rounds
Sights
Radar / TV-optical
Gun Weapon Systems #1 Ammunition
Type
Rifle
Caliber
30 mm
Shell
HEI-Frag, Frag-T
Shell Weight
0.39 kg
Basic Load
16,000 Rounds
Gun Weapon System #2
Name
AK-130
Type
Automatic Naval Cannon
Caliber
130 mm
Quantity
2 x twin 130-mm/70 cal. (AK-130) DP guns
Length
9,100 mm
Barrel Length
INA
Weight
INA
Elevation
85 degrees
Traverse
360 degrees
Rate of Fire
35 RPM
Maximum Firing Range
23,000 m (surface targets)
15,000 m (aircraft)
8,000 m (missiles)
Gun Weapon System #2 Ammunition
Type
Rifle
Caliber
130 mm
Cartridge
INA
Basic Load
2,000 Rounds
Missile Weapon System
Missile #1
Name
SS-N-22 Sunburn
Type
Anti-Ship Missile
Launcher
2 x quad P-100 Moskit-M 3M83 SSM
Note
SS-N-22 Sunburn is the NATO reporting name for two unrelated Soviet anti-ship missiles. Although the missiles were very different, distinguishing between them is difficult because their ship-mounted launching containers were identical. Confusion was exacerbated by the Soviet practice of mixing missile types within a class of ships. It was therefore not confirmed that the "SS-N-22" actually referenced two different missiles until after the fall of the Soviet Union.
Missile #2
Name
SA-N-7 Gadfly
Type
Surface-to-Air Missile (SAM)
Launcher
2 x ZR-90 Uragan (SA-N-7) type MS-196 SAM missile launchers
Length
5.55 m
Diameter
0.40 m
Wingspan
1.20 m
Weight
690 kg
Engine
1 x solid-fuel rocket
Maximum Range
30 km
Maximum Speed
3,680 kph, Mach 3
Maximum Altitude
15,000 m
Minimum Altitude
25-30 m
Maximum Load
23 g
Sensors/Electronics
Front Dome (Orekh) H/I-band radar, said to be capable of illuminating an individual target once it is designated by D/E/F-band air search radars and associated digital
computers
Torpedoes
Torpedo Tubes
2 x twin 533-mm type DTA-53 tubes
Torpedos
INA
Basic Load
INA
Fire Control Systems
SA-N-7 Missile FCS
6 x OP-3 (Front Dome**) fire control for SA-N-7 missiles
AK-130 Gun FCS
1 x MR-184M Lev (Kite Screech**) fire control for 130-mm guns
AK-630 Gun FCS
2 x MR-123 Vympel (Bass Tilt**) fire control for 30-mm CIWS
SS-N-22 Missile FCS
1 x Mineral (Band Stand**) surface target and designation for the SS-N-22
Laser Rangfinder
1 x Squeeze Box optronic director with laser range finder
Aircraft
Helicopters
1 x Kamov Helix-A(Ka-27PL)** ASW; or 1 x Helix-A (Ka-27RT) targeting type
ASW Weapons
Launcher
2 x 6-round RBU-1000 rocket launchers
Rocket Name
RGB-10
Basic Load
48 ea
Mines
Launcher
2 x mine rails fitted
Mine Name
INA
Basic Load
40 ea
Radar Systems
3-D Air Search Radar
1 x MR-760MA Fregat-MA (Top Plate**) 3-D air search
Navigation Radar
3 x MR-212/201 Vaygach-U (Palm Frond**) navigation
Sonar Systems
Name
1 x MGK-335MS Platina-S (Bull Horn**)
Type
Medium-Frequency, Hull Mounted Sonar
Protection
Active Protection System
INA
Countermeasures
8 x 10-tubed PK-10 fixed decoy launchers (all except BOYEVOY: none)
NBC Water Washdown System
Yes
Electronic Warfare
2 x MP-405M Start-2 or MR-401 intercept system; 2 x MRP-11M/12M (Bell Shroud**); 2 x Bell Squat**;
4 x Foot Ball-B**
Jamming System
1 x MR-407 jamming system
Details
Country of Origin
China
Category
Naval
Naval
Filter Label
T
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
156.4 m
Width
—
Height
—
Weight
—
Operators (1)
China
