PTM-1 (PGMDM) Russian Anti-Vehicle Mine
PTM-1
Anti-Vehicle Mine
Other
Basic Information
Name
PTM-1 (PGMDM) Russian Anti-Vehicle Mine
Designation
PTM-1
Alternate Designation
PTM-1; PGMDM
Equipment Type
Anti-Vehicle Mine
Manufacturer
—
Date of Introduction
1993
Description
PTM-1 (PGMDM) Russian Anti-Vehicle Self-Destruct Mine also known as PGMDM (ПГMДM - Protivo-Gutsenitsnaja Mina Distantsionava Minirovanija) a dispenser ejected Scatterable anti-vehicle, self-destruct, blast landmine. The mine is OD green.
Variants
PTM1-G (MVDM-G fuze)
The MVDM-G fuze operates in a similar way to the MVDM, except that the arming rod also releases the hydraulic SD mechanism. Should the mine fail to function under pressure, the hydraulic SD system will release a striker to initiate the mine between 3 hours and 40 hours after deployment, dependent mainly on temperature.
PTM-1S (MVDM fuze)

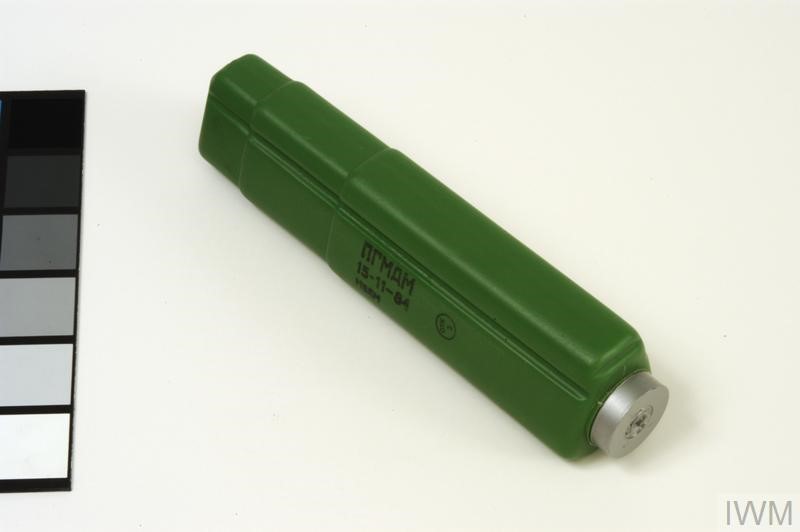

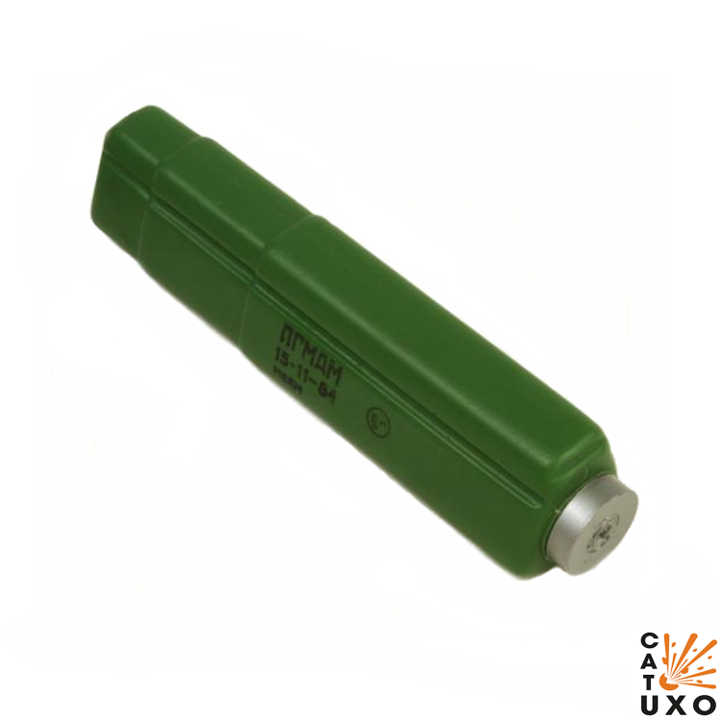

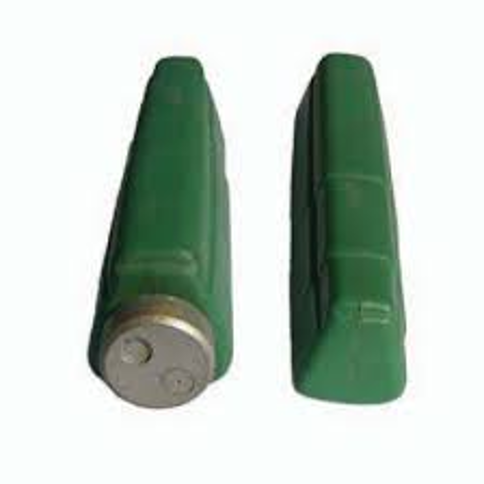

This is the Russian PTM-1S (ПТM-1C) also known as PGMDM (ПГMДM - Protivo-Gutsenitsnaja Mina Distantsionava Minirovanija) a dispenser ejected scatterable, anti-vehicle, self-destruct, blast landmine.
The landmine is green with a plastic casing.
The landmine can be scattered from helicopters or submunition warheads from the BM-21 (122mm) or the Uragan (220mm) rocket systems.
System
Alternate Designation
PTM-1; PGMDM
Type
Anti-Vehicle Self-Destruct Mine
Manufacturer
INA
Emplacement Method
Remote-surface: UMZ, MRL, aircraft, PKM portable inf
Type of Explosive
PVV-12M or PVV-12S (PTM-1); PVV-12S-1 (PTM1-G)
Fuze Designation
MVDM or MVDM-G
Operating Pressure
150–400 kg
Delay
60–100 second delay, which allows the mine to settle before arming.
Neutralisation Capability
This mine cannot be neutralised. This mine should never be approached within the SD period (ie less than 40 hours after deployment).
Disarming Capability
The mine cannot be disarmed.This mine should never be approached within the SD period (ie less than 40 hours after deployment).
Destruction Method
The disposal method recommended by the Russian military is destruction by projectile attack (vehicle-mounted machine gun).
Dimensions
Length
337 mm
Width
70 mm
Height
69 mm
Explosive Weight
1.1 kg
Total Weight
1.6 kg
Details
Country of Origin
Russia
Category
Landmines
Land > Infantry Weapons > Landmines
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.34 m
Width
0.07 m
Height
0.07 m
Weight
1.6 kg
Operators (4)
Russia
Ukraine
Czech Republic
Afghanistan
