PP-89 Chinese 60mm Mortar

PP-89

Multiple Launch Rocket System (MLRS)
Spotted an error? Sign in to suggest an edit.
PP-89 Chinese 60mm Mortar
Other

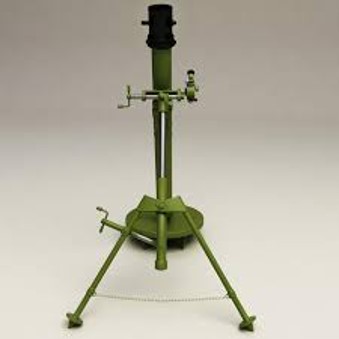

PP89_Mortar_(A).jpgTRADOC ODIN WEG
Thumbnail
Thumbnail
Basic Information
Name
PP-89 Chinese 60mm Mortar
Designation
PP-89
Alternate Designation
PP-89
Equipment Type
Multiple Launch Rocket System (MLRS)
Manufacturer
—
Date of Introduction
1987
Description

The PP-89 Chinese 60mm Mortar.

System
Alternative Designation PP-89
Type Mortar
Caliber 60 mm
Crew INA
Azimuth 3.3 deg on both sides
Elevation 45 - 85 deg
Muzzle Velocity 240 m/;s
Rate of Fire 30 sells per minute
Maximum Range 2,672 m
Minimum Range 117 m
Dimensions
Length 1,160 mm
Barrel Length 790 mm
Width 340 mm
Height 520 mm
Weight, Combat 14.3 kg
Ammunition
Type Mortar
Caliber 60 mm
Shell INA
Image Sources
Notes https://www.turbosquid.com/3d-models/mortar-82mm-3d-model/997963;
Details
Country of Origin China
Category Non-Self Propelled Mortar Systems
Land > Infantry Weapons > Non-Self Propelled Mortar Systems
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.16 m
Width
0.34 m
Height
0.52 m
Weight
14.3 kg
Operators (1)
China
