KamAZ-5350 Russian 6x6 General Utility Truck

KamAZ-5350

Heavy Utility Truck

Spotted an error? Sign in to suggest an edit.

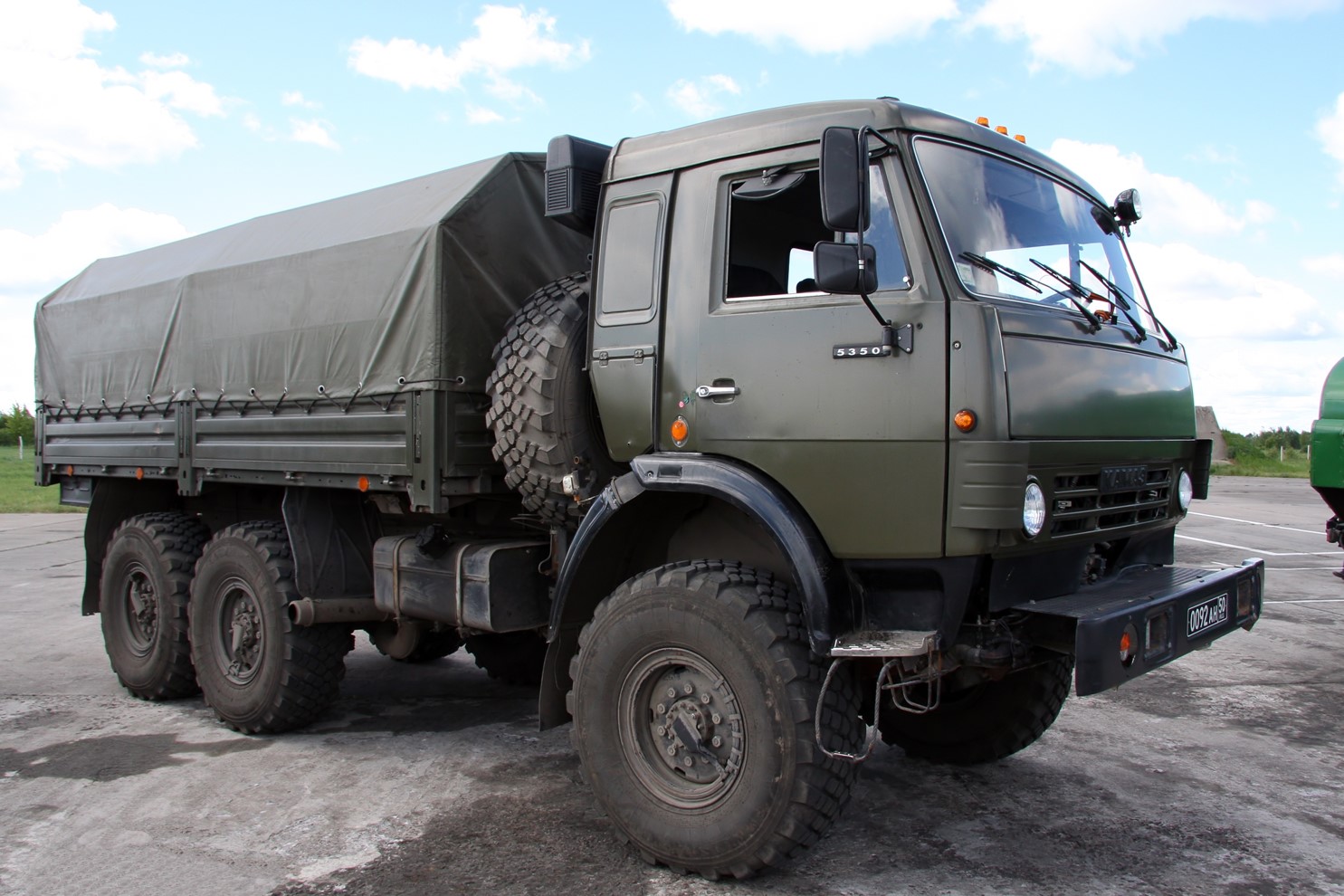

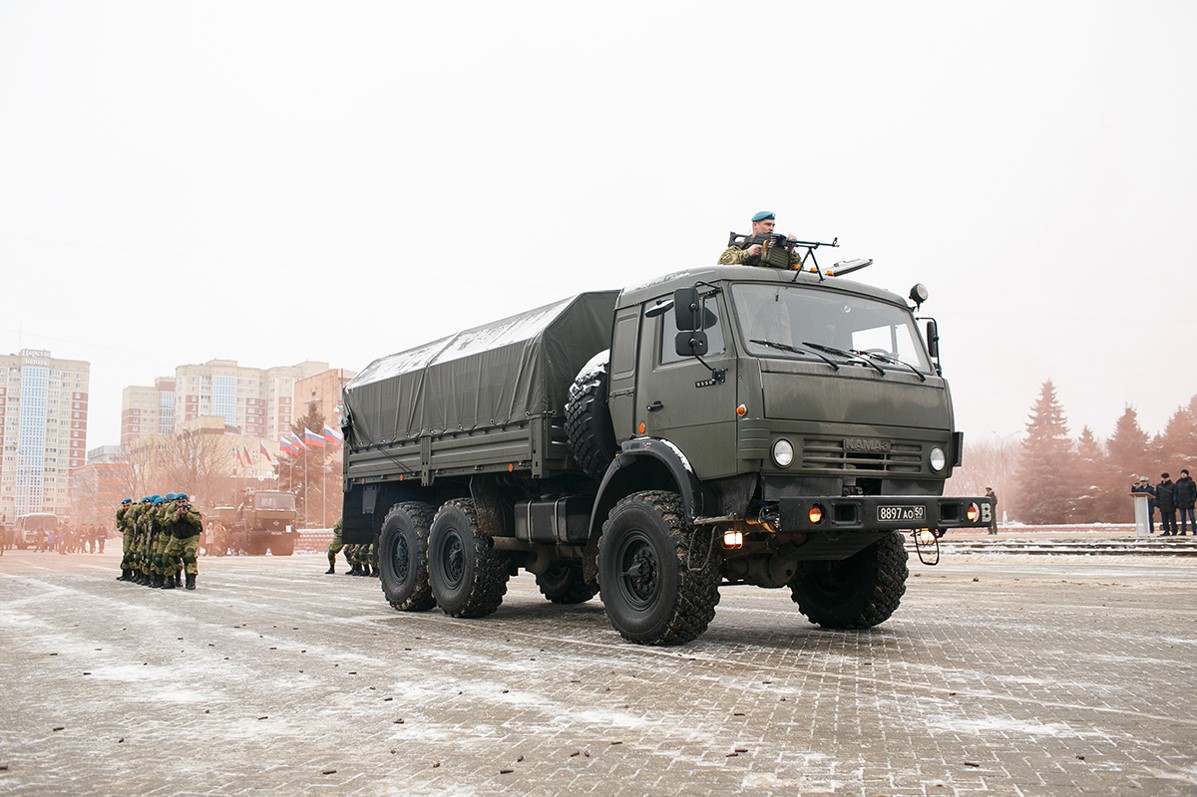

KamAZ-5350 Russian 6x6 General Utility Truck — Kamaz5350_(CC).jpgTRADOC ODIN WEG

Basic Information

Name

KamAZ-5350 Russian 6x6 General Utility Truck

Designation

KamAZ-5350

Alternate Designation

KamAZ-5350

Equipment Type

Heavy Utility Truck

Manufacturer

Kamaz

Date of Introduction

2002

Description

The KamAZ-5350 general utility truck is a member of Mustang family. This family of military trucks includes the KamAZ-4350 (4x4) and KamAZ-6350 (8x8) with numerous variants. This general utility truck is a further development of the KamAZ-4310, which was launched in the early 1980s. It was officially accepted to service with the Russian Army in 2002 and a small-scale production commenced in 2003.

Ground Specifications

Engine Diesel (260 hp)

Active Protection None

NBC Protection Yes

Variants

KamAZ-4350 (4x4) 4x4 Version.

KamAZ-6350 (8x8) 8x8 Version.

System

Alternative Designation KamAZ-5350

Type General Utility Truck

Manufacturer Kamaz

Configuration 6x6

Cab Seating 1+2 Men

Cargo Capacity 6 tons

Dimensions

Length 7.85 m

Width 2.5 m

Height 3.29 m

Weight, Combat 9.2 tons

Maximum Load 6.0 tons

Automotive

Engine Name KamAZ-740.13-260 Diesel

Engine Type Diesel

Engine Power 260 hp

Cruising Range 1,000 km

Speed, Maximum Road 100 km/h

Speed, Average Cross INA

Speed Maximum Swim Not Amphibious

Gradient 60 %

Side Slope 40 %

Vertical Step 0.6 m

Trench 0.6 m

Fording Depth 1.75 m

Maximum Load 6.0 tons

Note #1 The engine is also equipped with cold weather starting device and can be started at temperatures down to -50°C

Note #2 The vehicle has a full-time all-wheel drive and is fitted with a central tyre inflation system

Communications

Radio R-168-5UN(1)E Russian VHF Manpack-Vehicular Radio Station

Protection

Armor INA, It is also proposed with concealed built-in internal armor

Applique Armor Available

Active Protection System No

Mine Clearing No

Self-Entrenching Blade No

NBC Protection Yes

Smoke Equipment No

Image Sources

Notes https://en.m.wikipedia.org/wiki/File:KAMAZ-5350_military_truck_of_Russia.jpg; https://en.m.wikipedia.org/wiki/File:KamAZ-5350.jpg; https://commons.wikimedia.org/wiki/File:Army2016demo-132.jpg;

Details

Country of Origin Russia

Category Logistics

Land > Combat Support Vehicles > Logistics

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

7.85 m

Width

2.5 m

Height

3.29 m

Weight

9200 kg

Operators (1)

Russia
