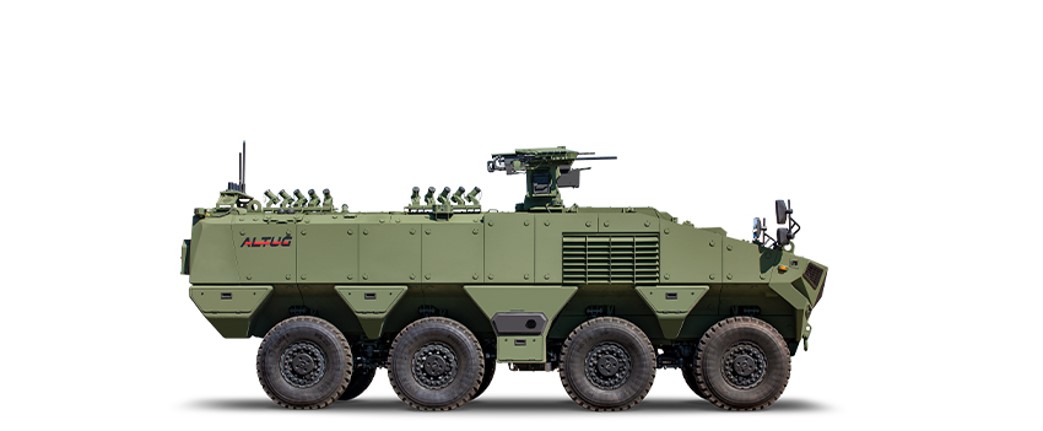

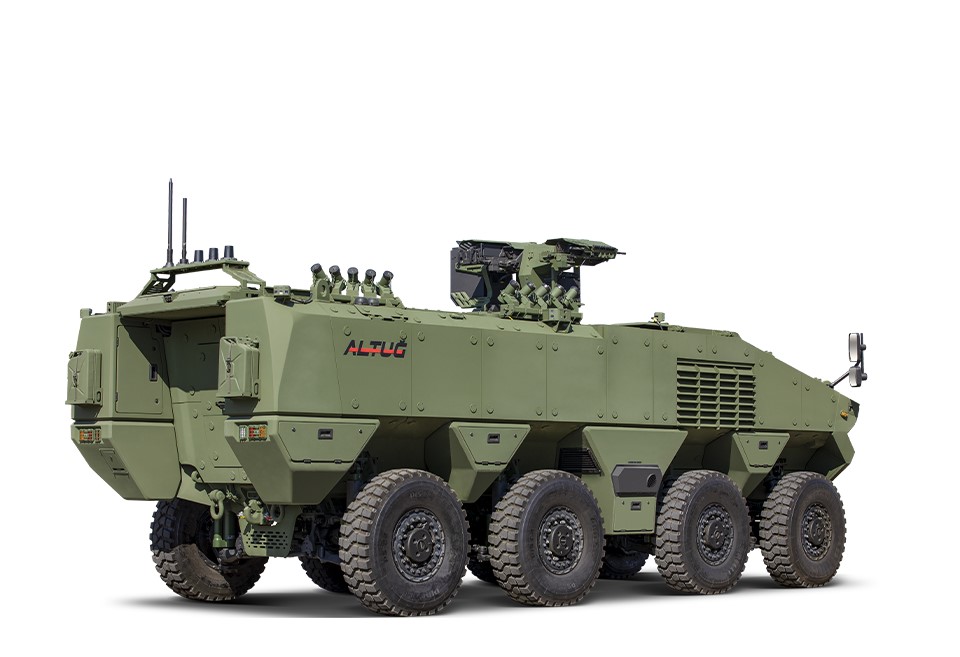

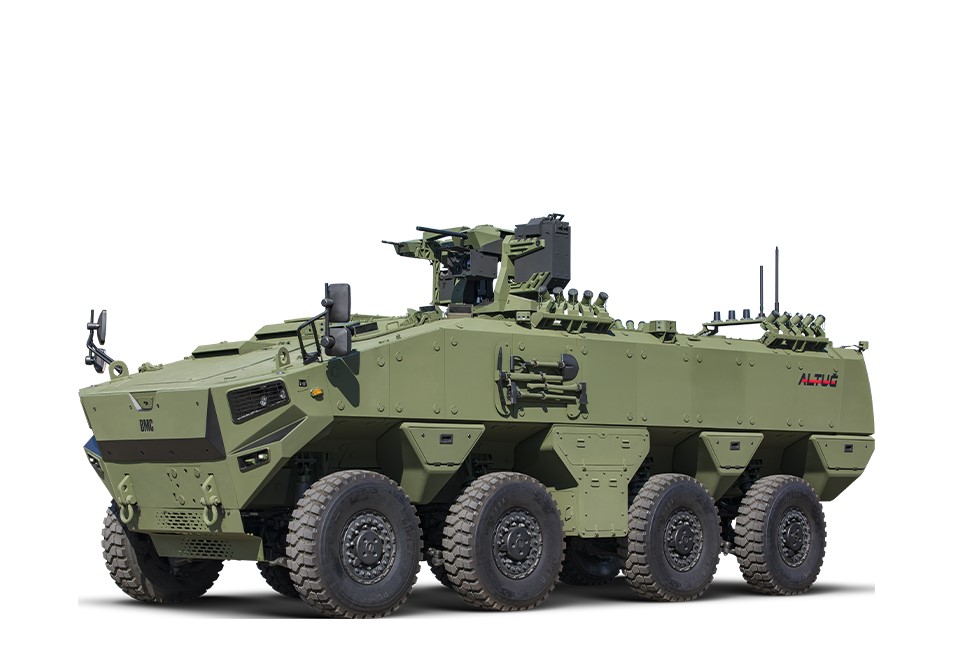

Altug 8x8 APC Turkish Armored Personnel Carrier (APC)

Altug 8x8 APC

Amphibious Armored Personnel Carrier (APC)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Altug 8x8 APC Turkish Armored Personnel Carrier (APC)
Designation
Altug 8x8 APC
Alternate Designation
Altug 8x8 APC
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
BMC
Date of Introduction
2025
Description

Altug 8x8 APC Turkish Armored Personnel Carrier (APC).

Ground Specifications
Crew 3
Engine Diesel (711 hp)
Max Speed 107.0 km/h
Range 800.0 km
System
Alternative Designation Altug 8x8 APC
Type Armored Personnel Carrier (APC)
Manufacturer BMC
Configuration 8x8
Crew 3 ea
Passengers 9 ea
Auxiliary Systems Smart Air Conditioning System; Auxiliary Power Unit; Driver Sight System (Forward and Rear Camera, Corner ; Cameras, Ramp and Nose Cameras)
Operating Temperature +49 °C / -32 °C
Dimensions
Length 8.33 m
Width 2.67 m
Height 4.38 m
Weight, Combat 34 tons
Automotive
Engine Name Caterpillar C13
Engine Type Diesel
Engine Power 711 hp
Suspension All Independent, Hydro Pneumatic Optional Height Adjustment System
Maximum Range 800 km
Maximum Speed 107 km/h
Amphibious No
Gradient 60%
Side Slope 30%
Vertical Step 60 cm
Trench 220 cm
Fording 120 cm
Ground Clearance 40 cm
Main Weapon System
Note 12.7mm MACHINE GUN; 400 Ammunition Ready to Fire and 40mm AUTOMATIC GRENADE LAUNCHER; 80 Ammunition Ready to Fire.
Auxiliary Weapon System
Note 7.62mm MACHINE GUN; 500 Ammunitions Ready to Fire
Protection
Armor High Level and Augmentable Modular Ballistic, Mine, and IED Protection; Fire Extinguishing and Explosion Suppression System; Battlefield Target Identification Device; Laser Detection and Warning System; Active Protection System; Gunshot Detection System; 360° Situational Awareness System; Mobile Camouflage Net
Applique Armor INA
NBC Protection CBRN Protection System (Both Over Pressure and Face Masks)
Smoke Equipment Yes
Details
Country of Origin Turkey
Category Land
Land
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.33 m
Width
2.67 m
Height
4.38 m
Weight
34000 kg
Operators (1)
Turkey
