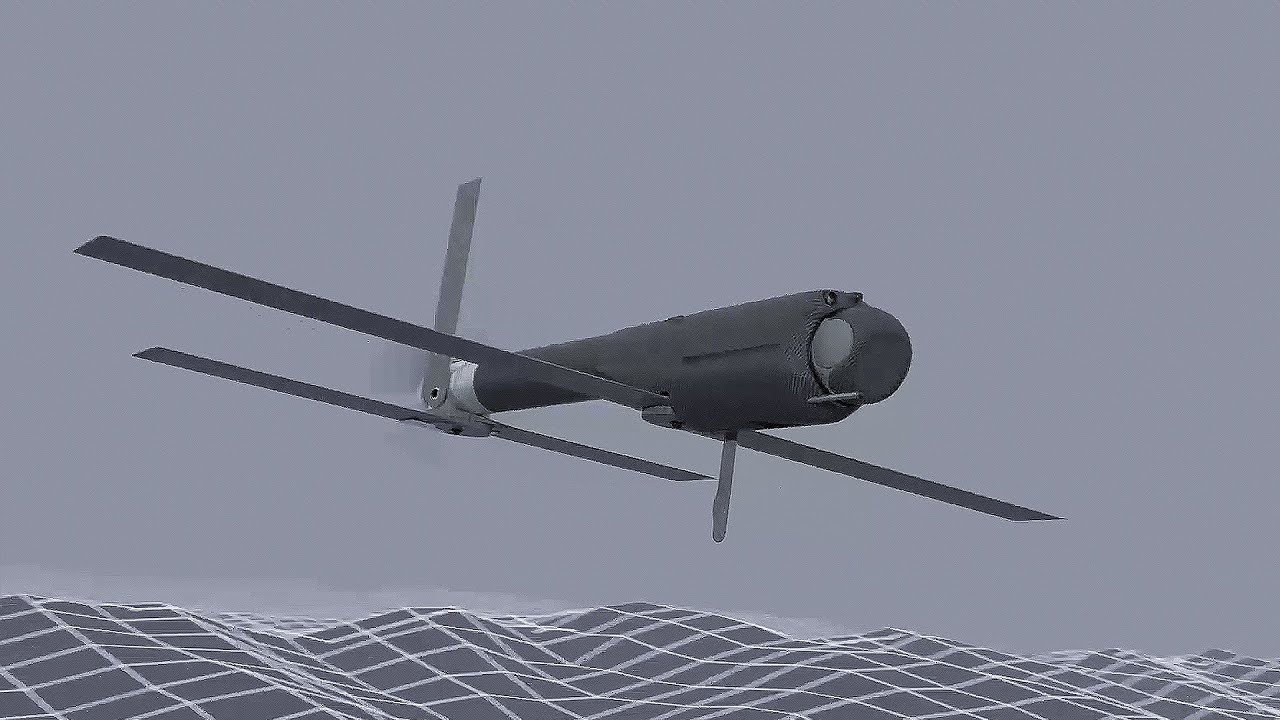

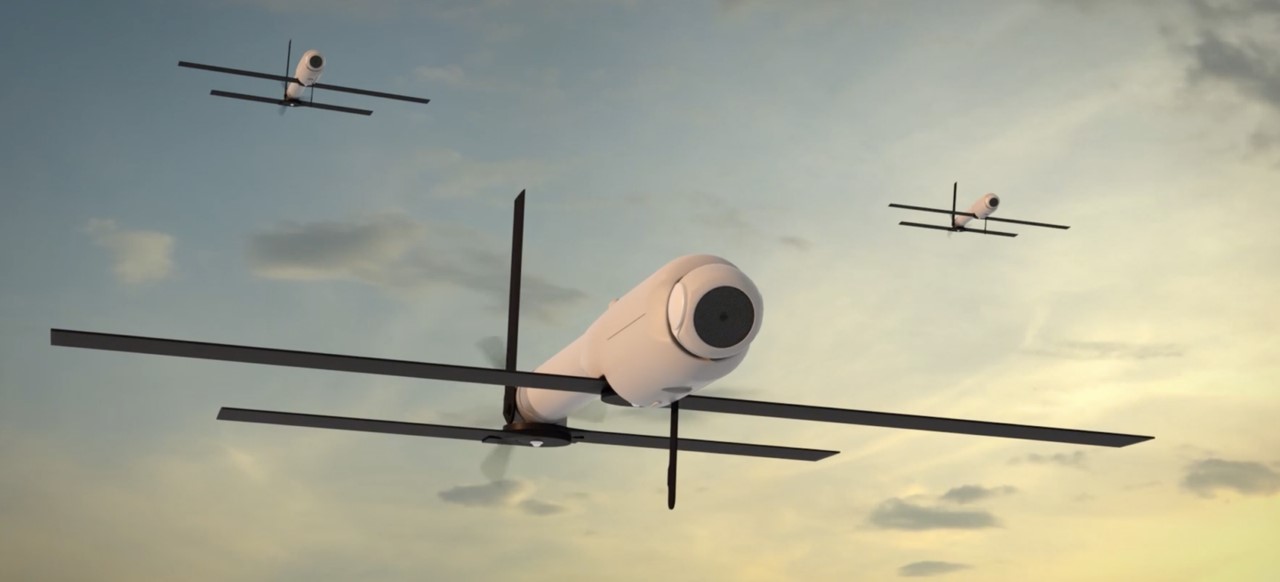

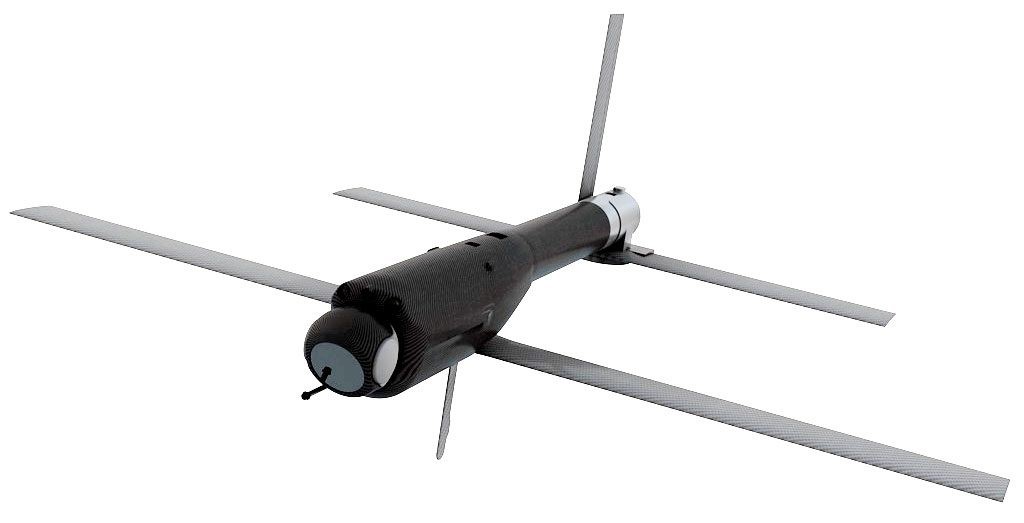

Switchblade 600 American Loitering Munition Unmanned Aerial Vehicle (UAV)

Switchblade 600

Loitering Munition UAV
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Switchblade 600 American Loitering Munition Unmanned Aerial Vehicle (UAV)
Designation
Switchblade 600
Alternate Designation
Switchblade 600
Equipment Type
Loitering Munition UAV
Manufacturer
AeroVironment
Date of Introduction
2011
Description

The Switchblade 600 American Loitering Munition Unmanned Aerial Vehicle (UAV) represents the next generation of extended-range loitering missiles, delivering unprecedented RSTA support and featuring high-precision optics, over 40 minutes of loitering endurance, and an anti-armor warhead for engaging larger, hardened targets at greater distances. As an all-in-one, man-portable solution, Switchblade 600 includes everything required to successfully plan and execute missions and can be set up and operational in less than 10 minutes. Equipped with class-leading, high-resolution EO/IR gimbaled sensors and advanced precision flight control, Switchblade 600 empowers the warfighter with quick and easy deployment via tube-launch, and the capability to fly, track and engage non-line-of-sight targets and armored vehicles with precision lethal effects without the need for external ISR or fires assets. Patented wave-off and recommit capability allows operators to abort the mission at any time and then re-engage either the same or other targets multiple times based on operator command. Whether it’s from fixed defensive positions, combat vehicles with integrated organic precision fire, or air-launched applications, Switchblade 600 provides field commanders with a multi-mission loitering missile system capable of multi-domain operations.

Air & Air Defense Specifications
Engine Electric
Max Speed 185.0 km/h
Range 80.0 km
Endurance 40.00 hrs
Service Ceiling 150 m
Payload Capacity 600 kg
Variants
Switchblade 300 The Switchblade 300 American Loitering Munition Unmanned Aerial Vehicle (UAV) is the ideal loitering missile for use against beyond-line-of-sight targets. Backpackable and rapidly deployable from air, sea or ground platforms, Switchblade 300 delivers increased warfighter lethality with real-time GPS coordinates and video for precise targeting with low collateral effects. Switchblade Sensor to Shooter (S2S) combines the superior ISR capabilities of AeroVironment’s small unmanned aircraft systems (SUAS) with the precision strike capabilities of the Switchblade loitering missile system. Through S2S software, target coordinates are instantly transferred from the SUAS to Switchblade via machine-to-machine communication, reducing engagement timelines and operator cognitive load. S2S provides Switchblade operators with real-time video downlinks for a centralized view of the area of operation and the ability to scene-match SUAS ISR and Switchblade 300 camera feeds on one screen.
Blackwing The Blackwing is an unarmed variant of the Switchblade 300 with similar weight and dimensions. It was developed for the United States Navy to provide rapid ISR (Intelligence, surveillance and reconnaissance) as well as command and control relay operations among surface and undersea manned and unmanned vessels.
System
Alternate Designation Switchblade 600
Type Loitering Munition Unmanned Aerial Vehicle (UAV)
Manufacturer AeroVironment
Autonomy Semi-Autonomous
Crew Unmanned
Payload Capacity The Switchblade 600 carries an ATGM warhead based on the Javelin ATGM, designed to neutralize armored vehicles.
Ground Control Station The Switchblade uses the same Ground Control Station (GCS) as other AeroVironment UAVs including the Wasp, RQ-11 Raven, and RQ-20 Puma.
Launching System Portable tube; multipack; assorted vehicles
Recovery System INA
Dimensions
Length 130 cm
Diameter 150 mm
Height INA
Wingspan INA
Maximum Takeoff Weight 54.4 kg
Automotive
Engine Name INA
Engine Type Electric
Engine Power INA
Maximum Speed 185 km/h
Cruising Speed 113 km/h
Service Ceiling 150 m
Maximum Range 80 km
Endurance 40 min
Details
Country of Origin United States
Category UAVs
Air > UAVs
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.3 m
Width
Height
Weight
54.4 kg
Operators (1)
United States
