MAZ-7910 Russian 8x8 Air Defense Missile System Carrier
MAZ-7910
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
MAZ-7910 Russian 8x8 Air Defense Missile System Carrier
Designation
MAZ-7910
Alternate Designation
—
Equipment Type
—
Manufacturer
MAZ
Date of Introduction
1976
Description
In 1974, MAZ made the prototype of a pipe hauler MAZ 7910. According to the information the only prototype was made, the other information says that mass production in small quantities started in 1976. This version has a single cabin. It could take three 800 mm pipes with a total weight of 18 tonnes. Overall dimensions — 11,450x3050x3550 mm. Curb weight — 23,300 kg. Payload — 18 tonnes. Top speed — 60 kph.
Ground Specifications
Crew
2
Engine
V-12 Diesel (525 hp)
Range
800.0 km
Variants
MAZ-543P
The MAZ-543P (carrying capacity - 19600 kg) was used for 9K76 Temp-S system.
MAZ-543M

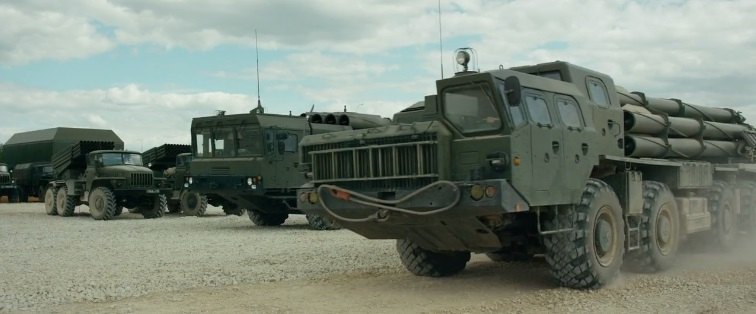

The MAZ-543M version was designed to carry the BM-30 Smerch Multiple rocket launcher.
MAZ-543
Designed in the 1960s, the MAZ-543 was presented on 7 November 1965 during the Moscow Red Square military parade as part of SS-1с Scud B (9K72 Elbrus) system. The vehicle is powered by a 38.9 litre D12A-525 tank diesel engine producing around 525 horsepower, and gives a maximum road speed of 37 mph (60 km/h). There have been a number of variants
MAZ-543A
he 1967 MAZ-543A, arrived (with extra carrying capacity up to 22000 kg). It served as the basis for several civilian vehicles, including the AA-60(543)-160 aerodrome fire-fighting vehicle (1973), the AA-70(543)-172 experimental emergency vehicle, and the KS-5571 crane. In 1974 at the Exhibition of Achievements of the National Economy, a new prototype modification (MAZ-7310) was presented. It has been in production since 1976.
MAZ-547
The MAZ-547 version is a six-axle version, used as Transporter erector launcher for the SS-20 Saber.
MAZ-7910

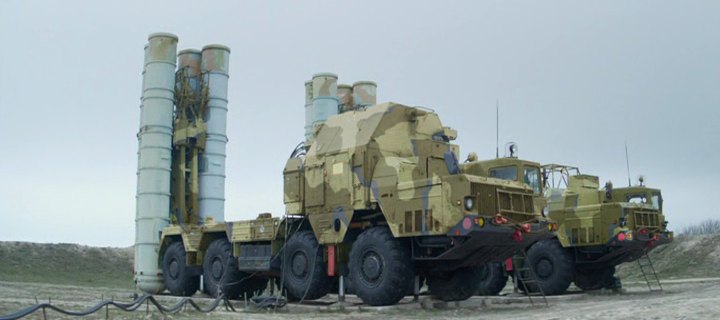

This variant is used to carry the air defense missile complex S-300PMU-2.
MAZ-74106
This variant is used mainly to transport the air search radar 64N6 BIG BIRD for the S-300PM.
WS2400
In 1986, People's Republic of China fielded its version of MAZ-543. Initially designated WS580 but later renamed WS2400, this Chinese version is one of the Wanshan series trucks manufactured by Wanshan Special Vehicle, a wholly owned subsidiary of China Aerospace Sanjiang Space Co. Ltd., which is in turn a subsidiary of China Aerospace Science and Industry Corporation (CASIC).
System
Alternative Designations
MAZ 7910
Manufacturer
MAZ
Crew
2 ea
Automotive
Engine Name
D12A-525
Engine Type
V-12 water-cooled diesel
Engine Power
525 hp at 2,100 rpm
Power-to-Weight Ratio
26.25 hp/metric ton
Maximum Speed, Road
60 km/h
Maximum Speed, Off-Road
30 km/h
Maximum Range
800 km
Cargo Capacity Example
take three 800 mm pipes with a total weight of 18 tonnes
Dimensions (Chassis: MAZ-7910 8 x 8 Truck)
Length
9.40 m
Width
3.10 m
Height
3.70 m
Curb Weight
23,300 kg
Payload
18 tons
Communications
VHF Radio
R-168 Akveduk
HF Radio
R-161 Poisk
Protection
Note
There is not information on the protection available to the MAZ 7910
Details
Country of Origin
Russia
Category
Transportation
Land > Combat Support Vehicles > Transportation
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
23300 kg
Operators (1)
Russia
