Coyote British 6x6 Armored Reconnaissance Vehicle
Coyote
Armored Reconnaissance Vehicle
Other
Basic Information
Name
Coyote British 6x6 Armored Reconnaissance Vehicle
Designation
Coyote
Alternate Designation
Coyote
Equipment Type
Armored Reconnaissance Vehicle
Manufacturer
Supacat
Date of Introduction
2009
Description

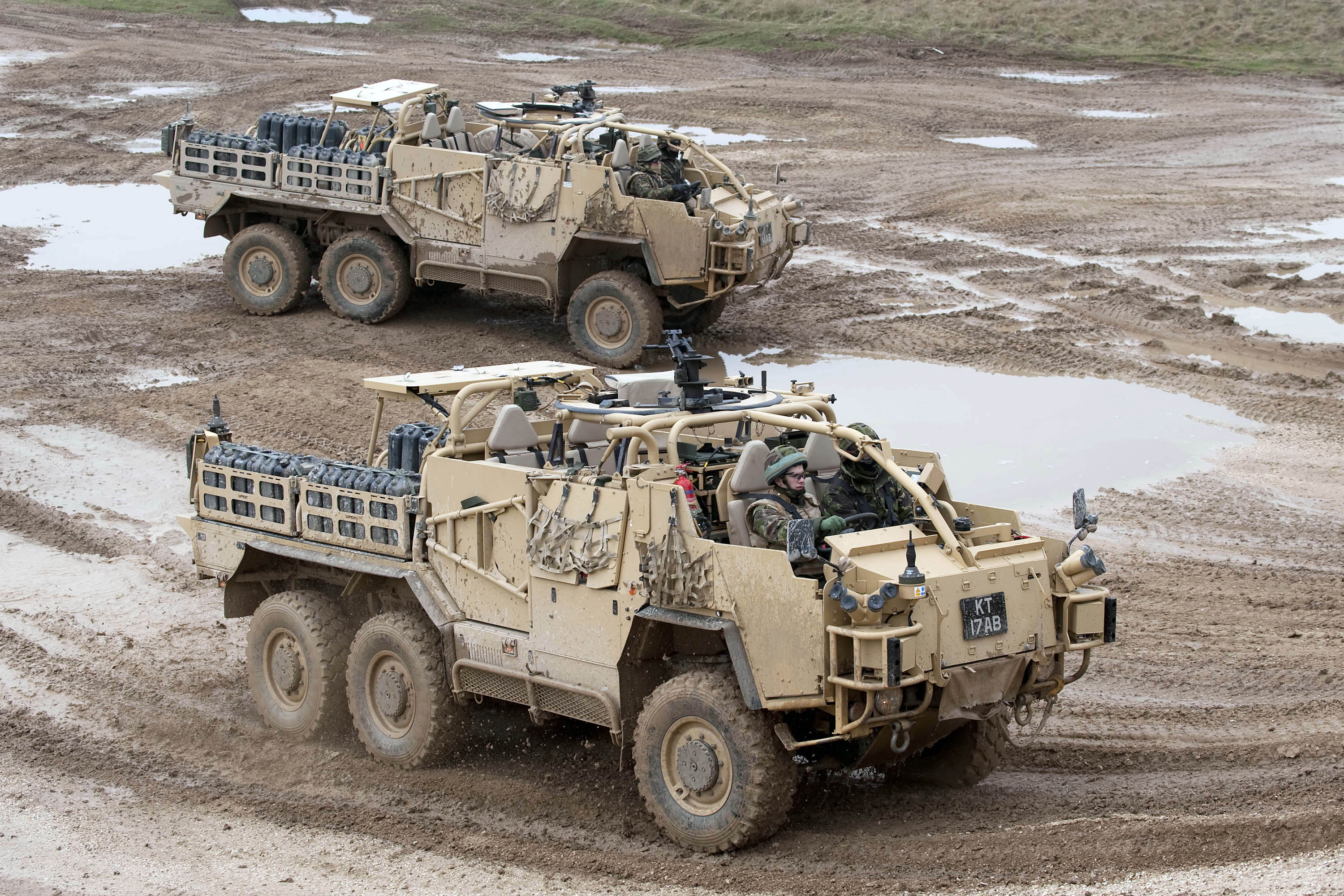

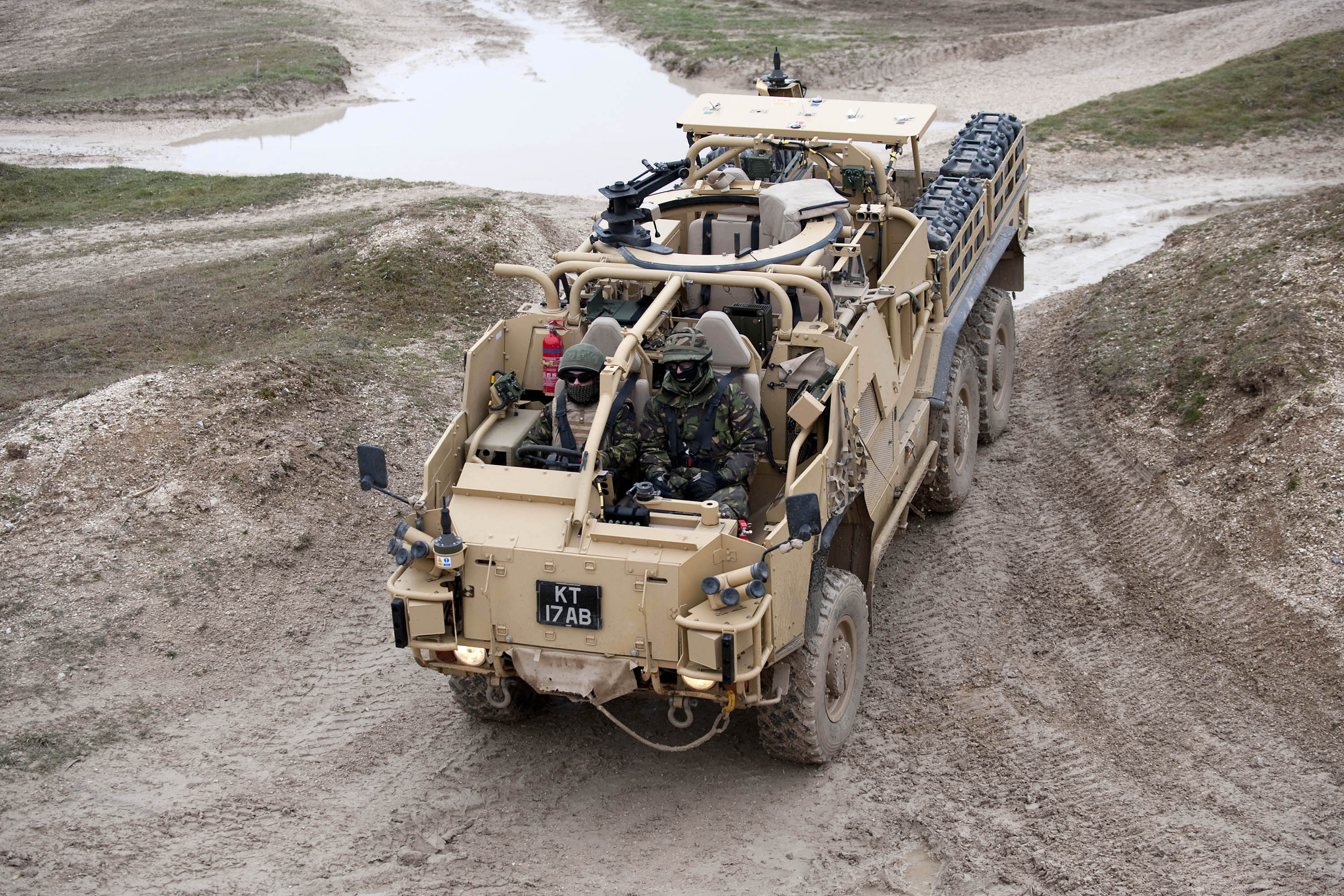

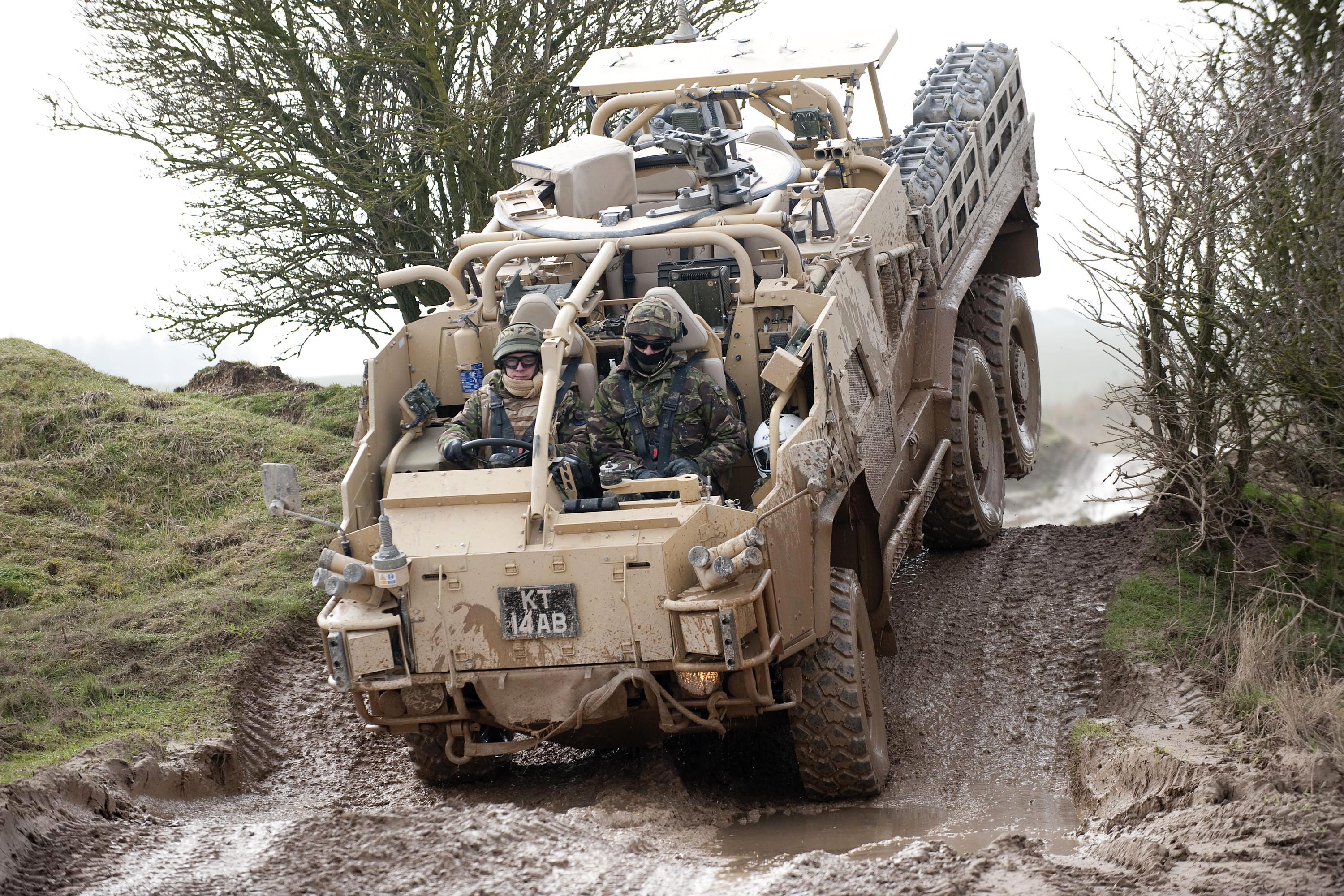

The Coyote tactical support vehicle (TSV light) is based on the HMT 600 6×6 chassis from Supacat and is a larger derivative of the Jackal 2, the two vehicles are designed to be complementary. The extra two wheels give a heavier vehicle approaching 10,500 kg (10.3 long tons) which will act in support of the Jackal 2 and allow transportation of supplies and equipment over similar terrain (the payload for supplies and equipment will be 3,900 kg (3.8 long tons).
Ground Specifications
Engine
6-cylinder 6.7-liter turbocharged diesel (180 hp)
Active Protection
Yes
Range
700.0 km
Variants
Jackal 2
This is an upgraded variant with a more durable chassis and a Cummins 6.7-liter diesel engine, developing 180 hp. Two blast-protected seats are located at the rear of the vehicle. The British army has reportedly ordered 110 Jackal 2s.
Coyote
This is a six-wheel variant of the Jackal capable of carrying 1.5 tons of cargo and a four-person crew. It is intended to serve as a logistics supply vehicle for long-range Jackal patrols.
Extenda 6 x 6
This is a modular upgrade of the 4 x 4 Jackal consisting of a basket and axle with interfaces to the propshaft of the standard vehicle. It can be changed from the four-wheel to the six-wheel version in about two hours.
System
Alternative Designation
Coyote
Type
Armored Reconnaissance Vehicle
Manufacturer
Supacat, Honiton, U.K. (design)
Devonport Management (DML) (now part of Babcock Marine), Plymouth, U.K. (production)
Configuration
6x6
Cab Seating
1 + 3 men
Payload Capacity
up to 3 tons
Dimensions
Length
7.04 m
Width
2.05 m
Height
1.88 - 2.45 m
Ground Clearance
1.00 m
Empty Weight
6.6 tons
Automotive
Engine Name
1 x Cummins ISBe Euro4
Engine Type
6-cylinder 6.7-liter turbocharged diesel
Engine Power
180 bhp at 2,500 rpm
Engine Torque
INA
Transmission
Allison 2500 automatic 5-speed
Main Fuel Tank
147 liter
Auxiliary Fuel Tank
50 liter
Maximum On-Road Speed
120 kph
Maximum Off-Road Speed
80 kph
Maximum Range
700 km
Fording
1.0 m
Gradient
60%
Side Slope
30%
Vertical Step
0.5 m
Trench
0.7 m
Main Weapon System
Note
The Coyote can be armed with a variety of weapons, including combinations of .50-caliber machine guns; 40-mm grenade launchers; and 7.62-mm general-purpose machine guns.
Protection
Armor
This patrol vehicle is available with optional armor kit, which provides protection against mine blasts, small arms fire and artillery shell splinters.
Applique Armor
Available
Active Protection System
Yes
Mine Clearing
No
NBC Protection
INA
Smoke Equipment
Yes, Smoke Grenade Dischargers
Image Sources
Notes
https://commons.wikimedia.org/wiki/File:Coyote_Tactical_Support_Vehicle_(TSV)_MOD_45152542.jpg; https://commons.wikimedia.org/wiki/File:Coyote_Tactical_Support_Vehicle_(TSV)_MOD_45152544.jpg; https://en.m.wikipedia.org/wiki/File:Coyote_Tactical_Support_Vehicle_(TSV)_MOD_45152541.jpg;
Details
Country of Origin
United Kingdom
Category
Reconnaissance Vehicles
Land > Infantry Vehicles > Reconnaissance Vehicles
Filter Label
C
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.04 m
Width
2.05 m
Height
1.88 m
Weight
6600 kg
Operators (4)
United Kingdom
Australia
Canada
New Zealand
