DJI Matrice 300 RTK Chinese Unmanned Aerial Vehicle (UAV)

DJI Matrice 300 RTK

Tactical Unmanned Aerial Vehicle (UAV)

Spotted an error? Sign in to suggest an edit.

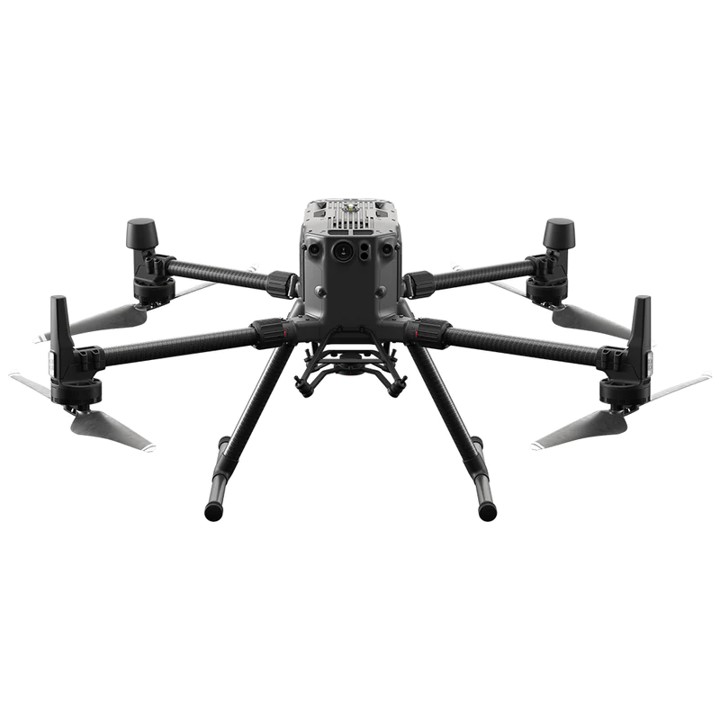

DJI Matrice 300 RTK Chinese Unmanned Aerial Vehicle (UAV) — DJI Matrice 300 RTK (A)TRADOC ODIN WEG

Basic Information

Name

DJI Matrice 300 RTK Chinese Unmanned Aerial Vehicle (UAV)

Designation

DJI Matrice 300 RTK

Alternate Designation

DJI Matrice 300 RTK

Equipment Type

Tactical Unmanned Aerial Vehicle (UAV)

Manufacturer

DJI

Date of Introduction

2022

Description

The DJI Matrice 300 RTK Chinese Unmanned Aerial Vehicle (UAV) is the most advanced commercial/industrial drone on the market. It is an absolute workhorse for public safety, utility, construction, inspection, and many other applications.

Air & Air Defense Specifications

Engine Battery

Max Speed 23.0 km/h

Range 15.0 km

Endurance 55.00 hrs

System

Alternate Designation DJI Matrice 300 RTK

Type Unmanned Aerial Vehicle (UAV)

Manufacturer SZ DJI Technology Co

GNSS GPS+GLONASS+BeiDou+Galileo

Operating Frequency 2.4000-2.4835 GHz 5.725-5.850 GHz

EIRP 2.4000-2.4835 GHz: 29.5 dBm (FCC); 18.5dBm (CE) 18.5 dBm (SRRC); 18.5dBm (MIC) 5.725-5.850 GHz: 28.5 dBm (FCC); 12.5dBm (CE) 28.5 dBm (SRRC)

Ingress Protection (IP) Rating IP45

Maximum Payload 2.7 kg

Maximum Takeoff Weight 9 kg

RTK Positioning Accuracy When RTK enabled and fixed: 1 cm+1 ppm (Horizontal) 1.5 cm + 1 ppm (Vertical)

Supported DJI Gimbals Zenmuse XT2/XT S/Z30/H20/H20T

Support Gimbal Configurations Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals

Operating Temperature -4°F to 122° F (-20°C to 50°C)

Dimensions

Length, Folded (With Propellers) 430 mm

Width, Folded (With Propellers) 420 mm

Height, Folded (With Propellers) 430mm

Length, Unfolded (Without Propellers) 810 mm

Width, Unfolded (Without Propellers) 670 mm

Height, Unfolded (Without Propellers) 430 mm

Weight (with single downward gimbal) Approx. 3.6 kg (without batteries) Approx. 6.3 kg (with two TB60 batteries)

Automotive

Engine Name DJI Matrice 300 TB60

Engine Type LiPo 12S

Engine Capacity 5935 mAh

Engine Voltage 52.8 V

Charging Time Using BS60 Intelligent Battery Station: 220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%) 110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)

Maximum Speed S mode: 23 m/s P mode：17 m/s

Maximum Range 15 km

Service Ceiling Above Sea Level 5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)

Max Descent Speed (vertical) S mode: 5 m/s P mode：3 m/s

Max Descent Speed (tilt) S Mode: 7 m/s

Max Wing Resistance 15 m/s

Endurance 55 min

Image Sources

Notes https://advexure.com/products/dji-matrice-300-rtk?nbt=nb%3Aadwords%3Ag%3A10543210937%3A107853059161%3A448405551518&nb_adtype=&nb_kwd=matrice%20300%20rtk&nb_ti=kwd-903574925510&nb_mi=&nb_pc=&nb_pi=&nb_ppi=&nb_placement=&nb_li_ms=&nb_lp_ms=&nb_fii=&nb_ap=&nb_mt=b&gad_source=1&gclid=Cj0KCQiAgqGrBhDtARIsAM5s0_m2azCsxDBAvAWQnPIoS7CT_iuof3mR9Z_YOgCdOIdoFeSVwn_bWxsaAshlEALw_wcB;

Details

Country of Origin China

Category UAVs

Air > UAVs

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

0.81 m

Width

0.67 m

Height

0.43 m

Weight

9 kg

Operators (3)

Russia

China

Ukraine
