SR-5 Chinese 220mm Multiple Rocket Launcher (MRL)
SR-5
Guided Multiple Launch Rocket System (GMLRS)
Other
Basic Information
Name
SR-5 Chinese 220mm Multiple Rocket Launcher (MRL)
Designation
SR-5
Alternate Designation
SR-5
Equipment Type
Guided Multiple Launch Rocket System (GMLRS)
Manufacturer
NORINCO
Date of Introduction
2012
Description

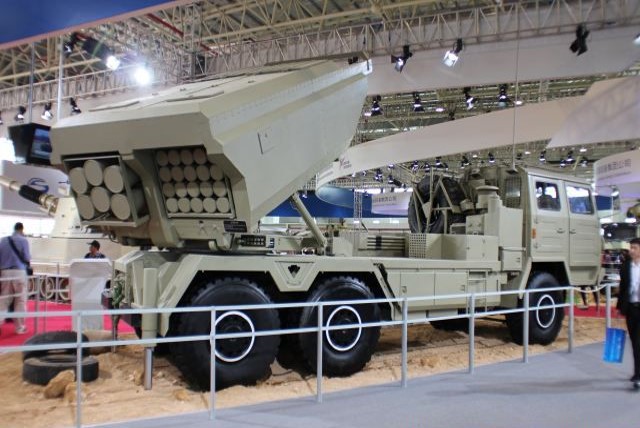

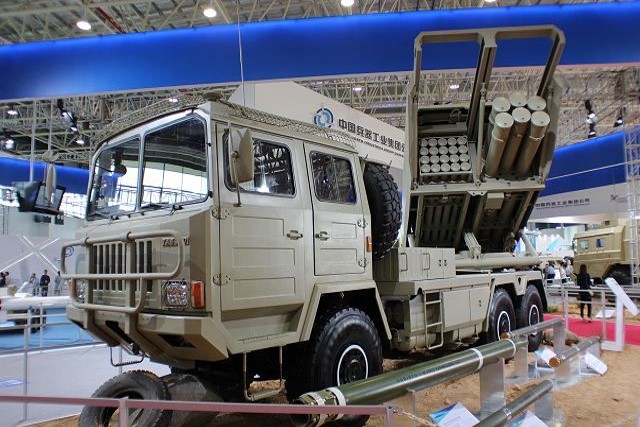

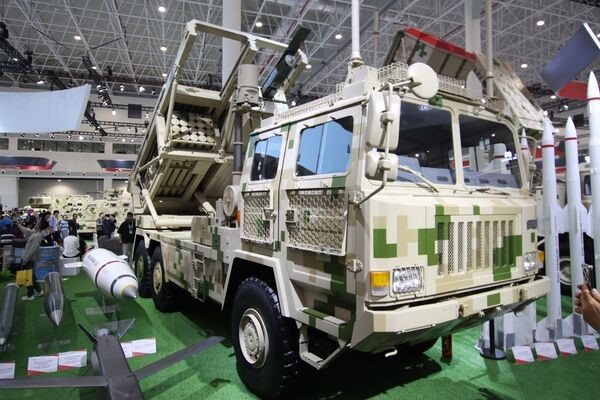

The SR-5 Chinese 220mm Multiple Rocket Launcher (MRL) is based on the rear of a Chinese TA 5310 (6×6) cross-country chassis fitted with a four-door unprotected forward control cab. Mounted on the rear of this chassis is a power-operated turntable rocket launcher, which can accept two pods of surface-to-surface rockets, that is, one pod of 20×122 mm rockets and one pod of six 220 mm rockets. Two pods of either rockets in a single-calibre configuration can also be fitted. Prior to launching the surface-to-surface rockets, two hydraulically operated stabilisers are lowered to the ground, one on either side at the rear of the vehicle by remote control.
Ground Specifications
Crew
3
Mobility Type
Wheeled (6x6)
Main Weapon
220 mm Self-Propelled Rocket Launcher
Engine
Diesel (517 hp)
Active Protection
None
NBC Protection
Yes
Max Speed
85.0 km/h
Range
70.0 km
System
Alternative Designation
SR-5
Type
Guided Multiple Launch Rocket System (GMLRS)
Manufacturer
NORINCO
Family
INA
Crew
3 ea
Chassis
Similar to TA 5310 (6 × 6) cross-country chassis
Displacement Time
5 min
Emplacement Time
1 min
Maximum Effective Range Rocket
70 km
Add on Parts
Yes
Note
After the SR5 has fired the vehicle will normally redeploy to another position for rapid reloading and to avoid counter-battery fire.
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Combat
25,000 kg
Ground Pressure
INA
Automotive
Engine Name
Deutz Diesel
Engine Type
Diesel
Engine Power
517 hp
Layout
6x6
Cruising Range
600 km
Speed, Maximum Road
85 km/h
Speed, Average Cross
INA km/h
Amphibious
INA
Power Steering
Yes, Front Wheels
Central Tire Pressure Regulation System
Yes
Fording Depth
1.2 m
Gradient
60 %
Side Slope
30 %
Vertical Setp
0.6 m
Trench
0.6 m
Communications
TBR-142
VHF FM Transceiver
Yes, TBR-142(I)
VHF Range
1 to 50 km
Megahertz
40.000 to 59.975 MHz
Output Power
1 to 0.3 Watts
Power
12V Ni-Ca Rechargeable Battery or external 12V DC power source
Dimensions
217x135x58 mm
Weight
2.7 kg
Antennas
3 Total: a 1.3m whip antenna, a 0.3m short antenna, and a 10m wire antenna
Proliferated
Widely with Artillery/Gun/Missile/Reconnaissance/C2 Units
Control Device
TBR-142(II)
Multi-function Field Phone
TBR-142(IIID)
Anti-Aircraft Control Unit
TBR-142(IIIG)
ZXY88-200 C2 Capable
Yes
Messaging
Limited Capability
Amplifier
Available
Physical Conditions Limitations
Terrain and Weather favorable
Main Gun
System
Name
SR5
Type
220 mm Self-Propelled Rocket Launcher
Breech Type
INA
Length, Barrel
INA
Loader Type
INA
Max Rate of Fire
INA
Sustain Rate of Fire
Two pods can be loaded onto the launcher in 5 minutes
Time the Max Rate of Fire can be Sustained
10 min
Muzzle Brake Type
INA
Max Elevation
+60 deg
Min Elevation
0 deg
Traverse Range
INA
Traverse Left
70 deg
Traverse Right
70 deg
Turret Traverse
140 deg
Range Finder Type
GPS/INS laser
Turntable-Mounted Launching System
Yes
Note
The launcher can be loaded with two pods of surface-to-surface rockets, either six 220mm or 20 122mm Rockets.
Ammunition (Option 1)
Name
Fire Dragon (BRE7) 40
Type
Hight Explosive Unguided Rockets
Caliber
122 mm
Guidance System
GPS/INS laser terminal guidance system
Fuse Type
Radio Proximity Fuze
Basic Load
40 (2x20 Optional)
Effective Range
30 to 50 km
Armor Penetration
Yes
Circular Error of Probability
25 m at a minimum range of 20 km and maximum range of 40 km
Length, Total
3,040 mm
Launch Weight
74 kg
Warhead Weight
18 kg
Warhead Type
Steel Ball HE
Leathal Warhead
60 m
Ammunition (Option 2)
Name
King Dragon 60 (GR1)
Type
Laser Terminal Guided Rocket
Caliber
220 mm
Guidance System
GPS/INS laser terminal guidance system
Muzzle Velocity
INA
Basic Load
12 (2 x 6 Optional) ea
Max Effective Range
70 km
Min Effective Range
25 km
Armor Penetration
Yes
GPS Unit
Yes
CEP (At ranges of up to 70 km)
3 m
Length, Total
4,400 mm
Launch Weight
300 kg
Fire Control
Name
SR5
Computerized FCS
Yes
Thermal Sight Vehicle Commander
Yes
Thermal Sight Gunner
Yes
Main Gun Stabilization
Yes
Range, Day Sight
INA
Range, Thermal Sight
INA
Displacement Time
1 minute
Emplacement Time
5 minute
Protection
Hull Armor
INA
Turret Armor
INA
Applique Armor
INA
Explosive Reactive Armor
No
Active Protection System
No
Self-Entrenching Blade
No
NBC Protection
Yes
Smoke Equipment
INA
IR Signature
Yes
Details
Country of Origin
China
Category
Rocket Artillery Systems
Land > Artillery > Rocket Artillery Systems
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
25000 kg
Operators (3)
China
Laos
Venezuela
