Kaman-22 Iranian Unmanned Aerial Vehicle (UAV)
Kaman-22
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Kaman-22 Iranian Unmanned Aerial Vehicle (UAV)
Designation
Kaman-22
Alternate Designation
Kaman-22
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Islamic Republic of Iran Air Force
Date of Introduction
2021
Description
The Kaman-22 Iranian Unmanned Aerial Vehicle (UAV) is an Iranian wide-body unmanned combat aerial vehicle (UCAV) unveiled on 24 February 2021 by the Islamic republic of Iran Air Force. It is said to be the country's first wide-body drone.
Air & Air Defense Specifications
Engine
Piston Engine
Max Speed
213.0 km/h
Range
3000.0 km
Endurance
24.00 hrs
Service Ceiling
8 m
Wingspan
14.80 m
Payload Capacity
300 kg
System
Alternate Designation
Kaman-22
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Islamic Republic of Iran Air Force
Payload Capacity
300 kg
Sensors
Generic Laser Designator - (Surface Only) Laser Designator
Laser Target Designator & Ranger (LTD/R)
Max Range: 18.5 km;
Generic IR Camera - (3rd Gen, Surveillance, Surface Only) Infrared
Infrared, Surveillance Camera
Max Range: 55.6 km;
Generic TV Camera - (3rd Gen, Surveillance, Surface Only) Visual
Visual, Surveillance TV Camera
Max Range: 55.6 km
Dimensions
Length
8.2 m
Height
2.1 m
Wingspan
14.8 m
Weight, Empty
515 kg
Maximum Takeoff Weight
1,115 kg
Automotive
Engine Name
1x Rotax 912 UL
Engine Type
Piston-Driven Engine
Engine Power
INA
Maximum Speed
213 km/h
Maximum Range
3,000 km
Service Ceiling
8 km
Endurance
24 hours

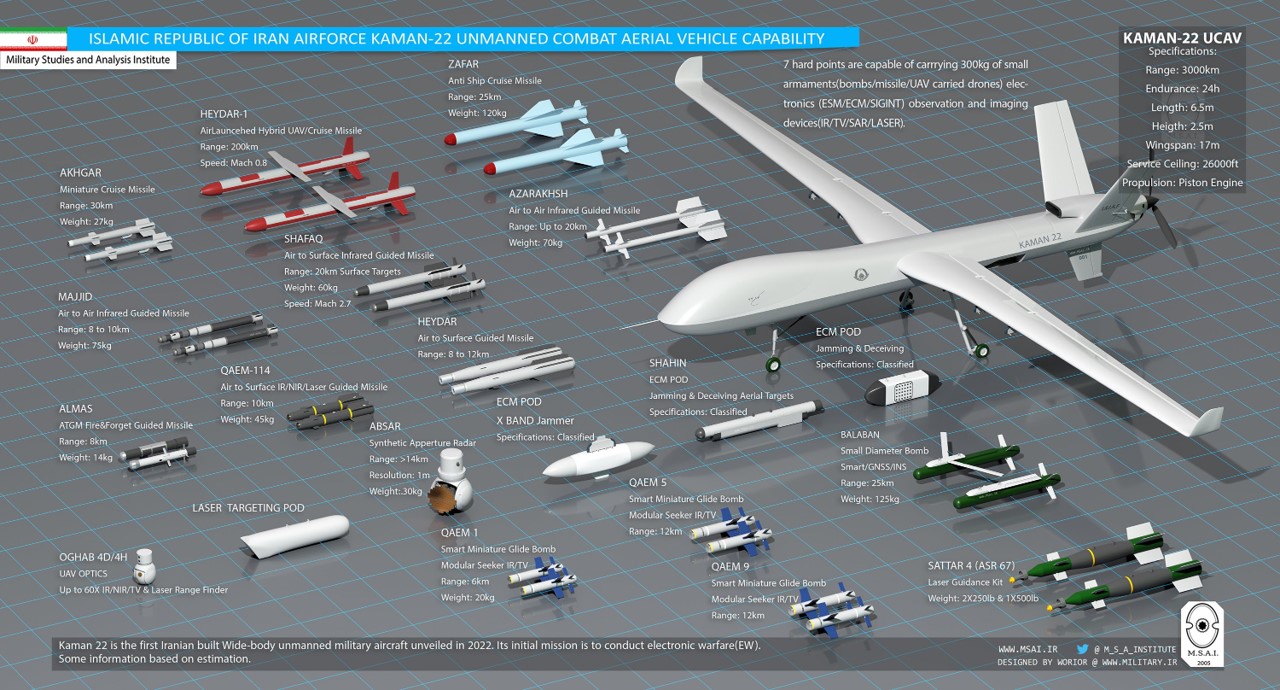

Armament
Qaem 1
(Iran, 2010, IIR) Guided Weapon
Surface Max: 6 km. Land Max: 6 km.
Sattar-4 LGB [Mk82, GBU-12 Inspired]
(Iran, 2015?) Guided Weapon
Surface Max: 7.4 km. Land Max: 7.4 km.
Qaem 5
(Iran, 2019(?), EO) Guided Weapon
Surface Max: 6 km. Land Max: 6 km.
Sadid-1
(Iran, Sadid-361, Fat'h 362, Toophan Mod) Guided Weapon
Surface Max: 3.9 km. Land Max: 3.9 km.
Shafaq-3 [IIR]
Iran, 2019) Guided Weapon
Surface Max: 11.1 km. Land Max: 11.1 km.
Shafaq-4 [LST]
(Iran, 2021) Guided Weapon
Surface Max: 20 km. Land Max: 20 km.
Balaban [45kg HE]
(Iran, 2020, SDB) Guided Weapon
Land Max: 25 km.
AN/ALQ-101 DECM Pod
Sensor Pod
Heidar-1
(Iran, 2022) Guided Weapon
Surface Max: 200 km. Land Max: 200 km.
Image Sources
Notes
https://www.militaryfactory.com/aircraft/detail.php?aircraft_id=2534; https://www.alamy.com/irans-air-force-kaman-22-drone-is-carried-on-a-truck-during-an-annual-military-parade-marking-anniversary-of-the-beginning-of-war-against-iran-by-former-iraqi-dictator-saddam-hussein-in-front-of-the-shrine-of-the-late-revolutionary-founder-ayatollah-khomeini-just-outside-tehran-iran-friday-sept-22-2023-ap-photovahid-salemi-image566749703.html; https://en.wikipedia.org/wiki/Kaman_22_(UAV);
Details
Country of Origin
India
Category
UAVs
Air > UAVs
Filter Label
K
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
8.2 m
Width
14.8 m
Height
2.1 m
Weight
1115 kg
Operators (1)
Iran
