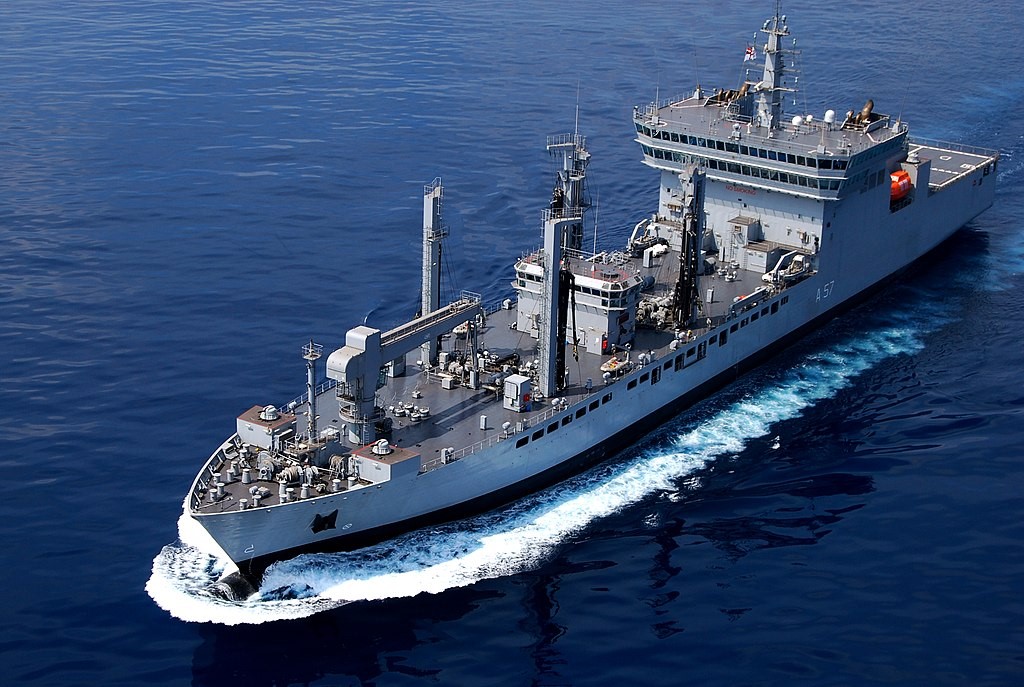

Deepak Class Indian Replenishment Tanker
Deepak Class
Indian Replenishment Tanker
Other
Basic Information
Name
Deepak Class Indian Replenishment Tanker
Designation
Deepak Class
Alternate Designation
Deepak Class
Equipment Type
Indian Replenishment Tanker
Manufacturer
Fincantieri
Date of Introduction
2011
Description
The Deepak Class Indian Replenishment Tanker is a class of fleet replenishment tankers of the Indian Navy built by Fincantieri. Two ships were ordered and the first one joined the fleet on 21 January 2011, while the second joined on 1 October 2011.
Naval & Littoral Specifications
Crew
20
Beam
25.00 m
Draft
9.10 m
Variants
Deepak
Commissioned: 2011
Status: Active
Shakti
Commissioned: 2011
Status: Active
System
Alternative Designation
Deepak Class
Type
Indian Replenishment Tanker
Builder
Fincantieri
Crew
Enlisted: 20; Officers: 20
Cargo Capacity
Liquids: 12,000 tons of fuel, 2,300 tons of AVCAT, 2,000 tons of fresh water, and 1,000 tons of lub oil. Dry cargo: 200 tons ammunition, 150 tons provisions, 20 tons stores, 6-8 containers on the deck.
Dimensions
Length
175.0 m
Height
INA
Beam
25.0 m
Draft
9.1 m
Displacement, Full Load
27,500 tons
Propulsion System
Engine Name
2 x MAN 8L48/60B
Engine Type
Diesel
Engine Power
26,800 hp
Maximum Range
10,000 n miles (18,520.0 km) (11,507.8 miles) at 16 kt (29.6 km/h) (18.4 mph)
Maximum Speed
20 kt (37.0 km/h) (23.0 mph)
Main Weapon System
Electro-Optic Systems
2 EON-51 optronic directors.
Gun Weapon Systems
Guns
4 x AK-630M 30 mm/65; 6 barrels per mounting; 5,000 rds/min combined to 4 km (2.2 n miles); weight of shell 0.39 kg. 2 x 12.7 mm MGs. 2 x 7.62 mm MGs.
Radar Systems
Surface Search/Navigation Radar
2 Sperry Marine; I-band.
Aviation
Helicopter
1 x Sea King Helocpter.
Protection
Hull
INA
Phsical Countermeasures
2 Kavach decoy launcher.
Electronic Countermeasures
1 x BEL Sanket.
NBC Water Washdown System
Yes
Image Sources
Details
Country of Origin
India
Category
Support Ships
Naval > Support Ships
Filter Label
D
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
175 m
Width
25 m
Height
—
Weight
27500000 kg
Operators (1)
India
