MP007 American Man-Portable Direction Finding System
MPOO7

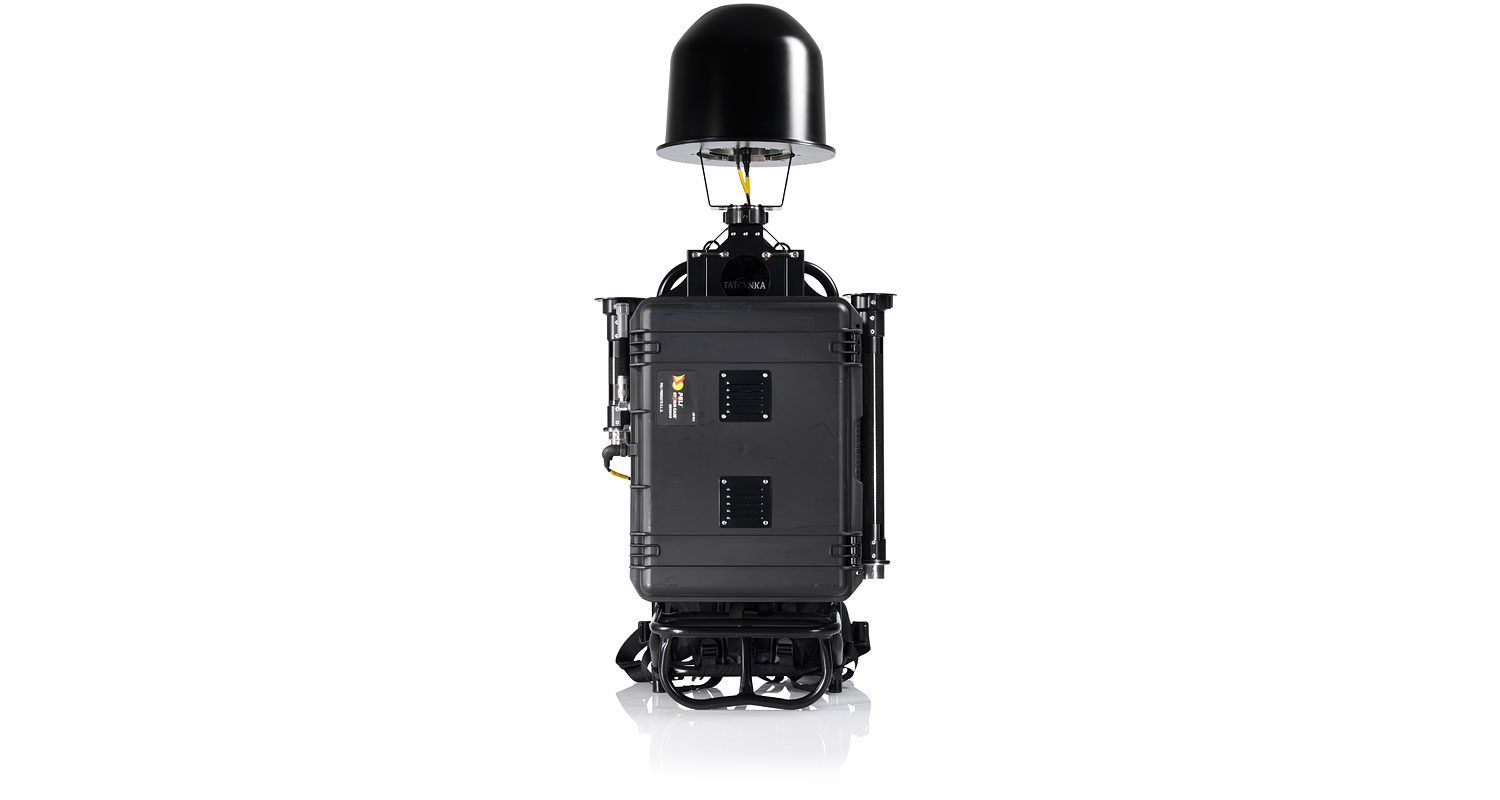

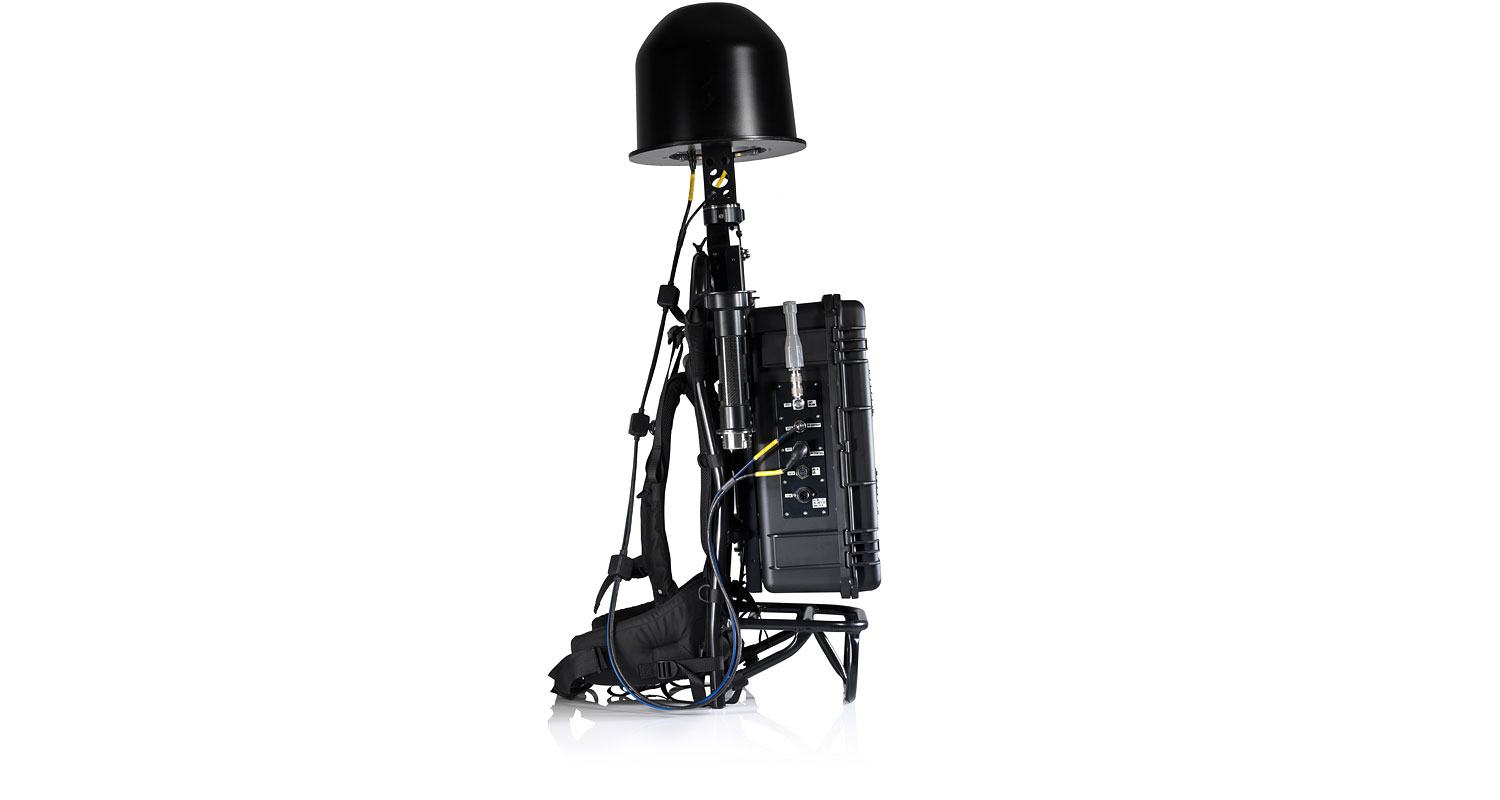

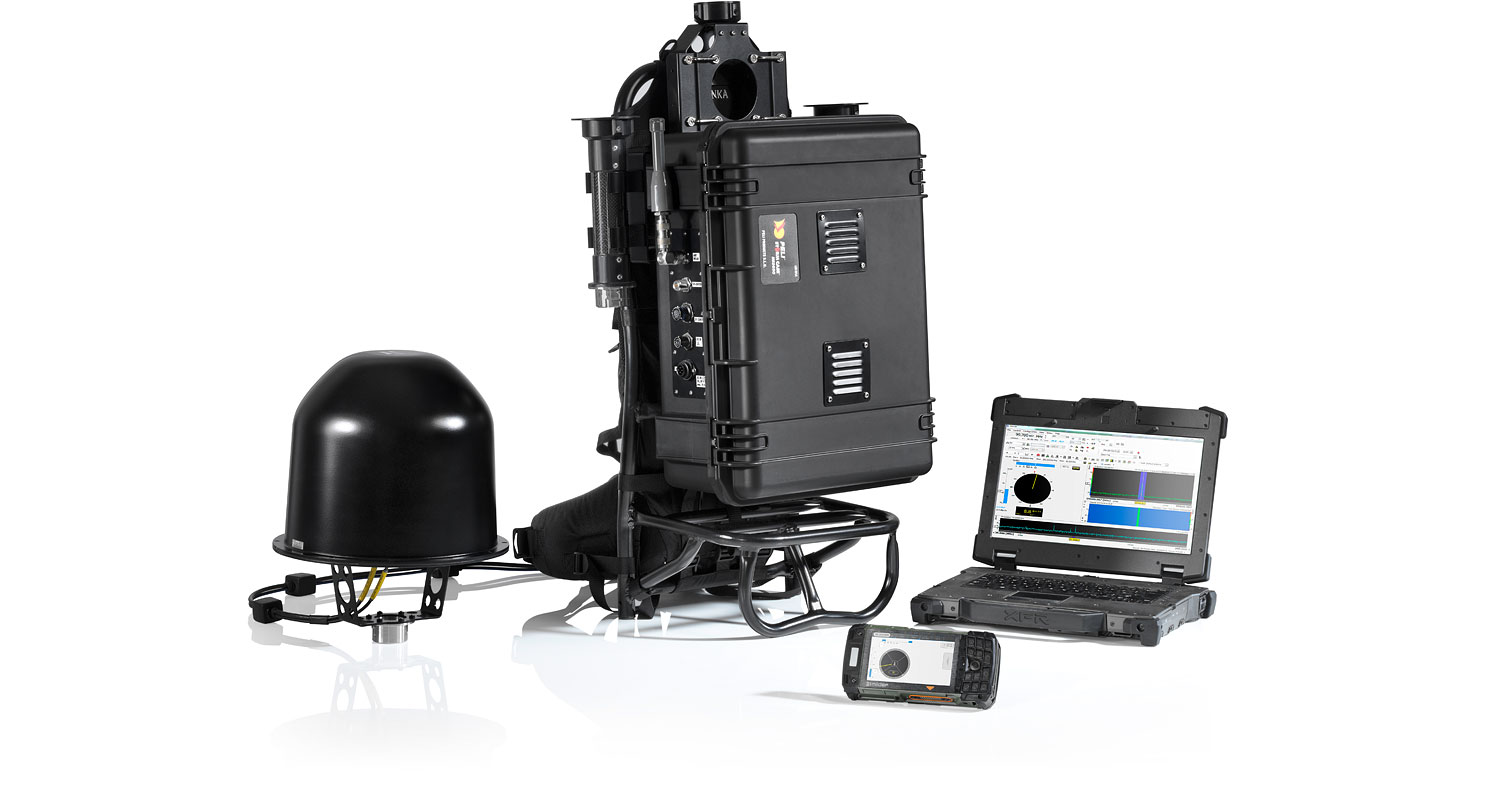

The R&S MP007 direction finding system is based on the R&S DDF007 portable direction finder upgrade kit in combination with the R&S®ADDx07 compact DF antennas. The result is a unique combination of functionality and performance in a system of this size. It can be used as a stationary or mobile DF station or as a portable manual direction finder, and can be reconfigured within minutes to meet the requirements of the current situation. The R&S®MP007 comes with a wide range of powerful software options and add-ons, making it an excellent choice for all applications that call for a compact and flexible yet powerful DF system. Key Facts Outstanding DF accuracy in compact design due to use of the correlative interferometer DF method in the range above 173 MHz Wide frequency range from 20 MHz to 6 GHz (DF mode) Realtime position fixing for detected transmitters through networking of multiple R&S®MP007 systems Extended operating time thanks to high-power battery and optional solar module Integration into existing Rohde & Schwarz DF systems
