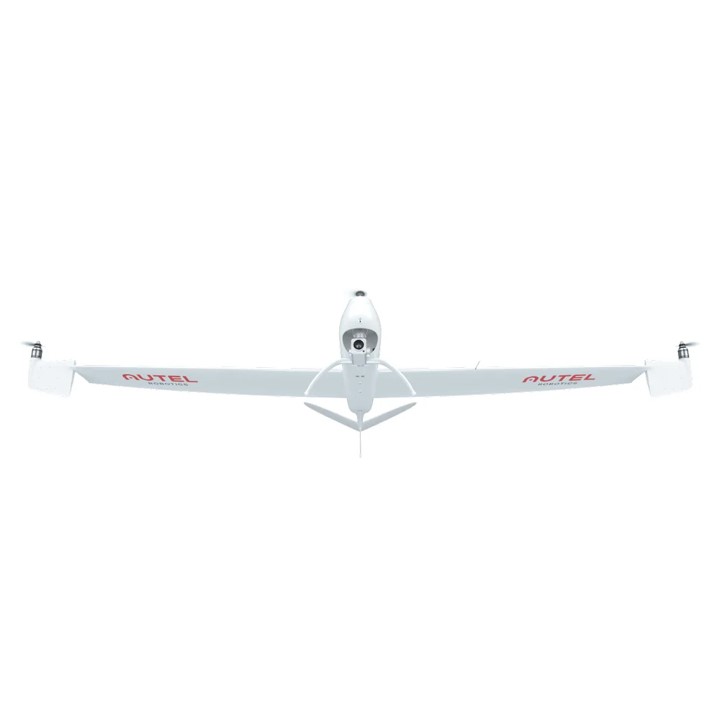

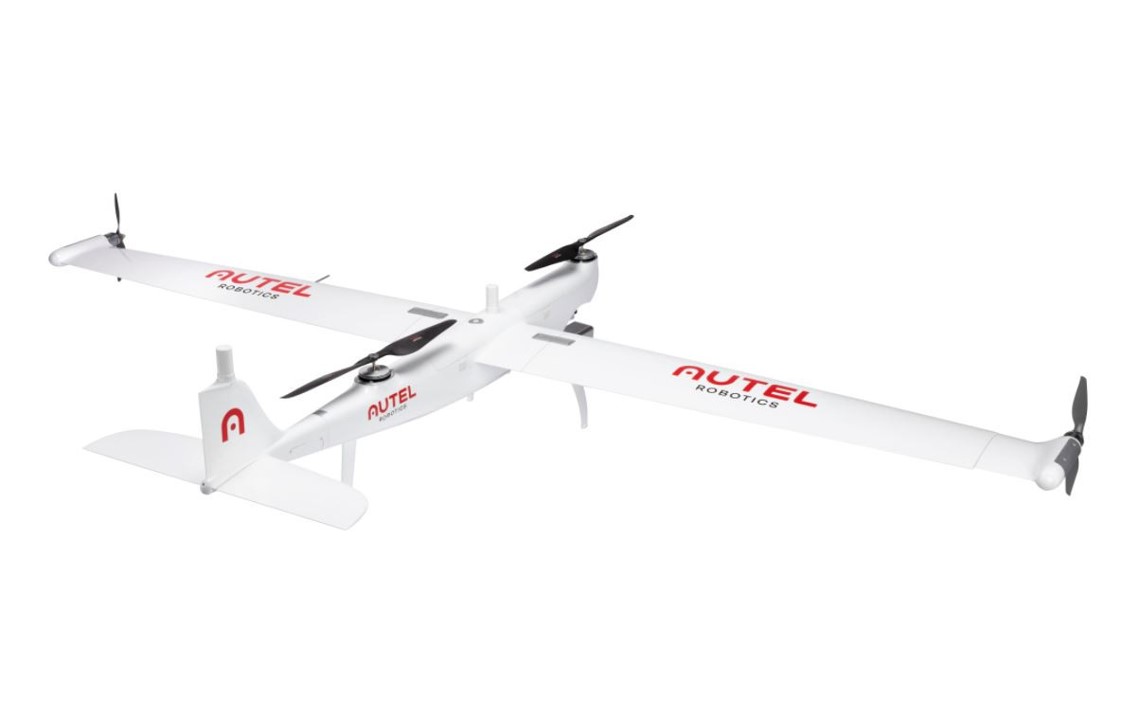

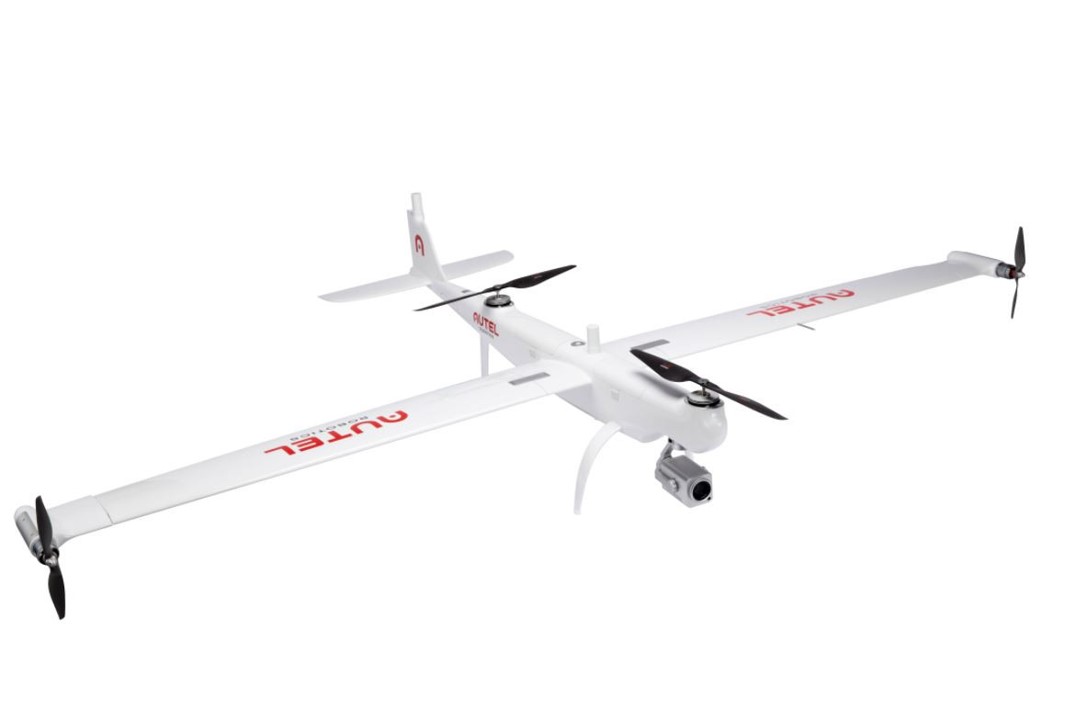

Dragonfish Standard Chinese Unmanned Aerial Vehicle (UAV)
Dragonfish Standard
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Dragonfish Standard Chinese Unmanned Aerial Vehicle (UAV)
Designation
Dragonfish Standard
Alternate Designation
Dragonfish Standard
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Autel Robotics
Date of Introduction
2021
Description
The Dragonfish Standard Chinese Unmanned Aerial Vehicle (UAV).
Air & Air Defense Specifications
Engine
Battery
Wingspan
2300.00 m
Variants
Dragonfish Lite
INA
Dragonfish Pro
INA
System
Alternate Designation
Dragonfish Standard
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Autel Robotics
Crew
Unmanned
Operating Frequency
Video Transmission
902-928 MHz (Only for FCC/ISED);
2.4000-2.4835 GHz;
5.150-5.250 GHz (Only for FCC/ISED);
5.725-5.850 GHz
Data Transmission
5.729-5.771 GHz
Transmission Power (EIRP)
900MHz
FCC/ISED：< 30 dBm；
2.4 GHz
FCC/ISED/RCM：< 30 dBm
CE：< 20 dBm；
5.2 GHz
FCC/ISED：< 25 dBm
5.8 GHz
FCC/ISED/RCM：< 26 dBm
CE: < 14 dBm
Maximum Payload
1.5 kg
Supported Gimbal Configurations
Fast Disassembly
Ingress Protection Rating
IP43
GNSS
GPS+GLONASS+BeiDou+Galileo
Operating Temperature
-20°C ~ 50°C
Launching System
Vertical Take-Off and Landing (VTOL)
Recovery System
Vertical Take-Off and Landing (VTOL)
Dimensions
Length
1,290 mm
Wingspan
2,300 mm
Height
460 mm
Maximum Takeoff Weight
9 kg
Automotive
Engine Name
INA
Engine Type
Battery
Engine Power
INA
Hovering Accuracy (P-mode with GPS)
Vertical:
±0.1 m(Vision System enabled)
±0.5 m(GPS enabled)
±0.1 m(RTK enabled)
Horizontal:
±0.3 m(Vision System enabled)
±1.5 m(GPS enabled)
±0.1 m(RTK enabled)
RTK Positioning Accuracy
When RTK enabled and fixed：
Multi-rotor：
1 cm+1 ppm（Horizontal）
1.5 cm + 1 ppm（Vertical）
Fixed Wing：
3 cm+1 ppm（Horizontal）
3 cm + 1 ppm（Vertical）
Max Angular Velocity
Pitch：180°/s
Yaw：60°/s
Max Pitch Angle
20°
Max Roll Angle
35°
Max Ascent Speed
Vertical Flight Mode：4 m/s
Fixed Wing Mode：5 m/s
Max Descent Speed (vertical)
Vertical Flight Mode：3 m/s
Fixed Wing Mode：5 m/s
Max Flight Speed
30 m/s
Flight Speed
0m/s~17m/s（Multi-rotor）
17m/s~30m/s（Fixed Wing）
Service Ceiling Above Sea Level
6,000 m
Max Wind Resistance
Fixed Wing Mode：15 m/s
Vertical Flight Mode：12 m/s
Max Flight Time
126 min
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
D
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.29 m
Width
—
Height
0.46 m
Weight
9 kg
Operators (1)
China
