PG99 Chinese 35mm Towed Anti-Aircraft Gun

PG99, GDF-002

Spotted an error? Sign in to suggest an edit.

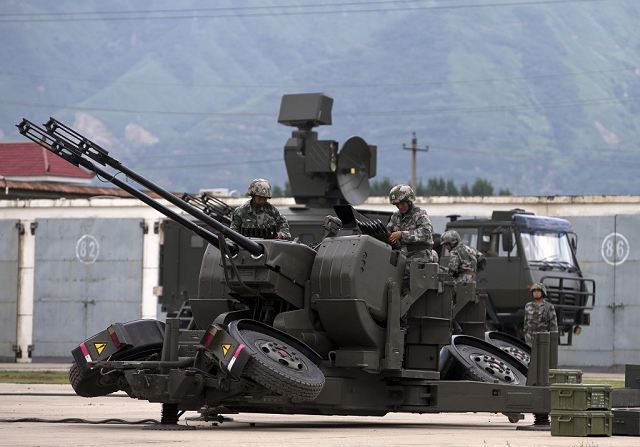

PG99 Chinese 35mm Towed Anti-Aircraft Gun — Type_90_(C).jpgTRADOC ODIN WEG

Basic Information

Name

PG99 Chinese 35mm Towed Anti-Aircraft Gun

Designation

PG99, GDF-002

Alternate Designation

PG99, GDF-002

Equipment Type

—

Manufacturer

—

Date of Introduction

1997

Description

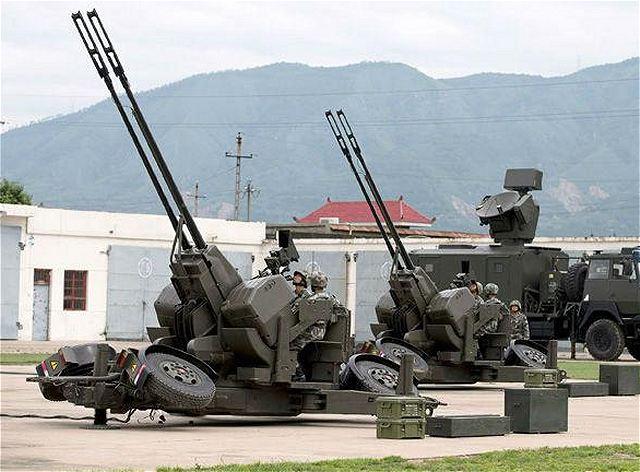

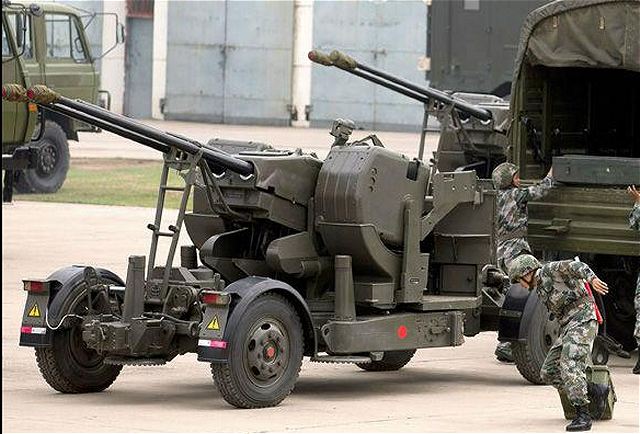

The PG99 is a twin barrel, low-altitude air defense weapon that is reported to be an effective part of the People's Liberation Army's (PLA's) air defense network. It was developed/licensed produced from the GDF-002 to engage low-altitude and helicopter-type targets within 4,000m slant range, or light armored targets and landing crafts. The PG99 can fire the NORINCO 35 mm Programmable Time Fuze Pre-fragmented (PTFP) round. The system consists of an anti-aircraft gun, mobile power station (40 kW), and an optional fire-control radar. The system’s reaction time to an airborne target is only 6 seconds, and the whole system can be set up or taken down within 90 seconds.

Ground Specifications

Crew 5

Mobility Type Towed

Main Weapon 35mm twin-barrel

Max Speed 80.0 km/h

Range 4.0 km

Variants

GDF-002 This system is the predecessor gun that China is known to have purchased from Switzerland. China obtained a license for the old twin 35mm Oerlikon GDF series of towed anti-aircraft guns many years ago together with the first generation of ammunition.

PG99 (Export) Cameroon took delivery of PG99’s in 2013, which were procured under a China EXIM Bank loan that also included the procurement of BBR AFVs. This delivery also included radar systems. The Sichuan Military Electronics Industries Group Company (SEMIC) 825 fire-control radars are used with the PG99s and have a maximum range of 40 km.

System

Alternative Designation PG99, GDF-002

Description Towed Twin 35mm Anti-Aircraft Gun

Crew 5

Primary Targets High-speed, low-flying aircraft, helicopters, unmanned aerial vehicles (UAV) and cruise missiles

Reaction time to an identified threat 6 secs

Emplacement Time 90 secs

Displacement Time 90 secs

Rate of Fire 1,100 rpm total, including both barrels

Range 3,200 m

Power Source External electric power. Manual power can be used in an emergency.

Weight 6,800 kg

Traverse 360 degrees

Elevation -5 degrees / +92 degrees (electric); -8 degrees / +95 degrees (manual)

Maximum Aiming Speed (Traverse) 120 degrees per second

Maximum Aiming Speed (Elevation) 60 degrees per second

Power Station 40 kW

Automotive

Notes: Mounted on a cradle which is designed to carry the guns and the mobile platform. It contains the hydro-mechanical recoil mechanism, which absorbs the recoil forces. The lower part of the cradle comprises the two-axle chassis and the outriggers with the leveling spindles for four-point support in the firing positions. Raising and lowering the leveling spindles and raising the wheels are done electro-hydraulically or manually in the case of power failure. The Type 90 35mm twin-barrel can be towed by any military truck.

Maximum Towing Speed (Road) 80 km/h

Maximum Towing Speed (Cross Country) 30 km/h

Armament

Description Twin Cannon

Power Source Gas Powered

Round Description 35mm / 90 caliber

Muzzle Velocity 1,175 mps

Basic Load 112 rounds

Ammunition in Ready Reserve 126 rounds

Reload Time 7.5 secs

Fire Control Computer controlled electro-optical director for 3-dimensional target tracking in conjunction with the laser range finder.

Ammunition

HEI High Explosive Incendiary

-T Tracer

SAPHEI Semi-Armor Piercing High Explosive Incendiary

FAPDS Frangible Armor Piercing Discarding Sabot

AHEAD Anti-missile rounds that fire 152 heavy tungsten metal sub projectiles

TP Target Practice

HE-T / HEI-T

Projectile Weight 535 g

Explosive 98 g

Propellant 330 g

Complete Round 1,565 g

Muzzle Velocity 1,175 m/s

HE / HEI

Projectile Weight 550 g

Explosive 112 g

Propellant 330 g

Complete Round 1,580 g

Muzzle Velocity 1,175 m/s

HEI (BF)

Projectile Weight 550 g

Explosive 70 g

Propellant 330 g

Complete Round 1,580 g

Muzzle Velocity 1,175 m/s

SAPHEI / SAPHEI-T

Projectile Weight 550 g

Explosive 22 g

Propellant 330 g

Complete Round 1,580 g

Muzzle Velocity 1,175 m/s

APDS / FAPDS

Projectile Weight 375 g

Explosive n/a g

Propellant 330 g

Complete Round 1,440 g

Muzzle Velocity 1,440 m/s

TP-T / TP

Projectile Weight 550 g

Explosive NA

Propellant 330 g

Complete Round 1,580 g

Muzzle Velocity 1,175 m/s

AHEAD

Projectile Weight 750 g

Explosive NA

Propellant 330 g

Complete Round 1,780 g

Muzzle Velocity 1,050 m/s

Image Sources

Notes https://armyrecognition.com/defense_news_march_2024_global_security_army_industry/bangladesh_army_demonstrates_chinese-made_pg99_cs/aa3_35mm_twin_barrel_antiaircraft_guns.html; https://twitter.com/someplaosint/status/1686224662588432384;

Details

Country of Origin China

Category Towed Anti-Aircraft Guns

Land > Air Defense > Towed Anti-Aircraft Guns

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

—

Width

—

Height

—

Weight

6800 kg

Operators (2)

China

Cameroon
