PLL-05 (Type 05) Chinese 120mm Self-Propelled Mortar
PLL-05
Self-Propelled Mortar (SPM)
Other
Basic Information
Name

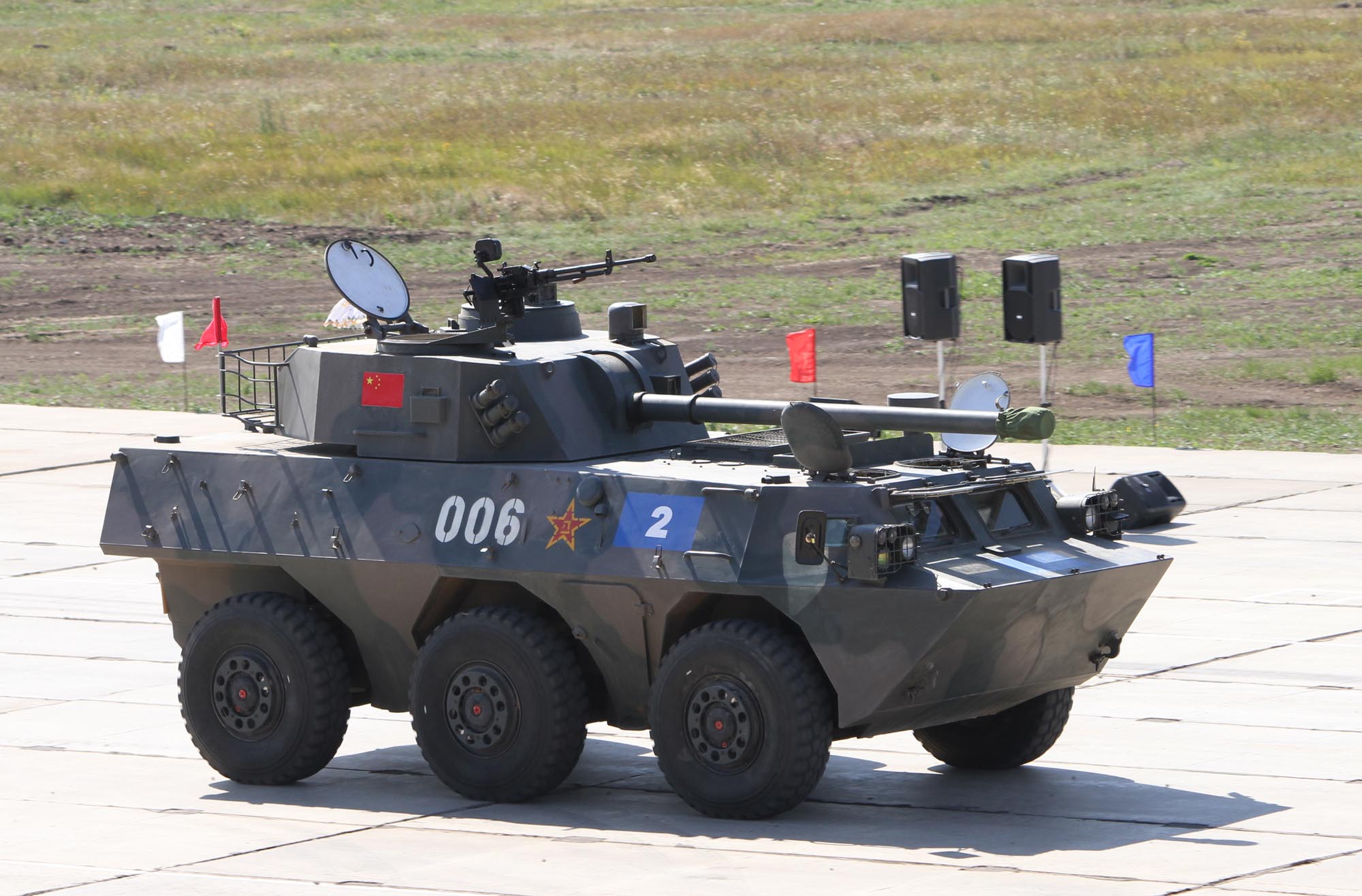

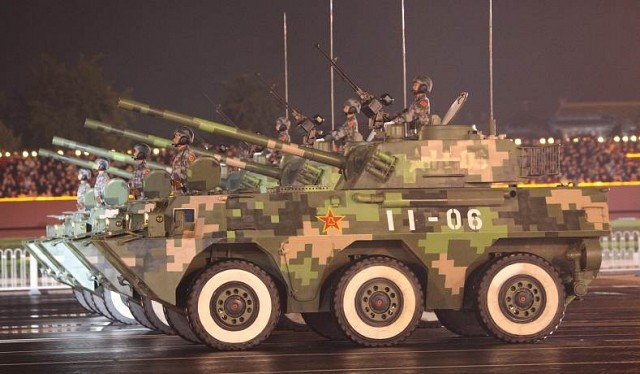

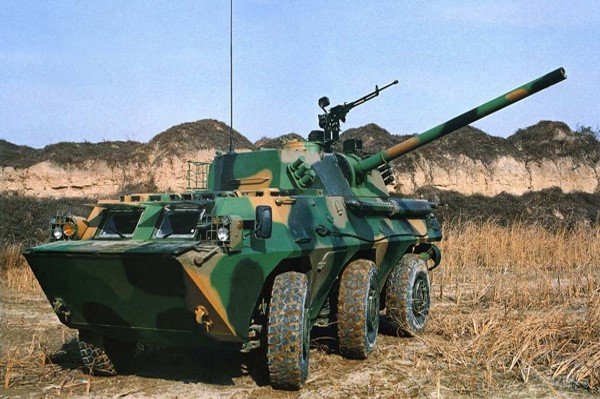

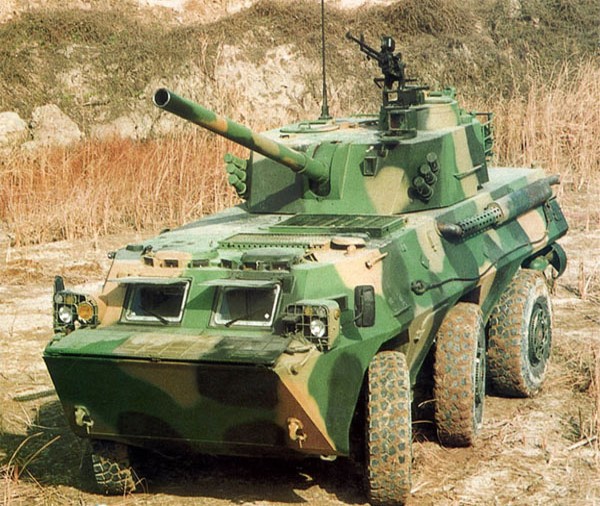

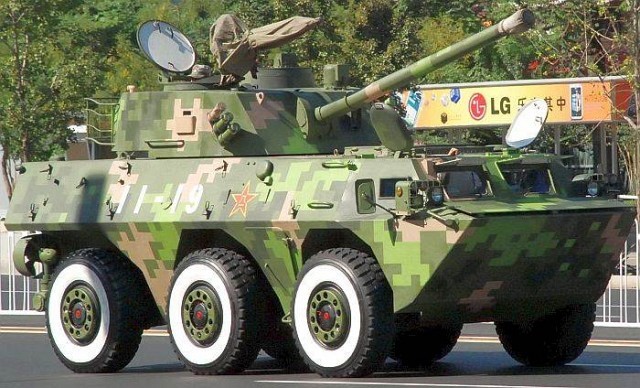

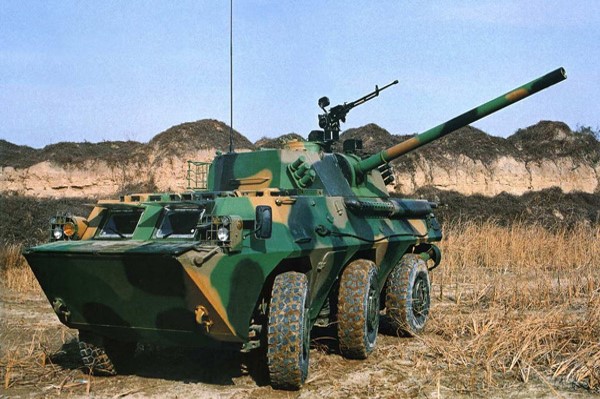

PLL-05 (Type 05) Chinese 120mm Self-Propelled Mortar
Designation
PLL-05
Alternate Designation
PLL-05; Type 05; WMA029
Equipment Type
Self-Propelled Mortar (SPM)
Manufacturer
NORINCO
Date of Introduction
2003
Description
The PLL-05 is based on the ZSL-92 APC. The 'Z' stands for 'armoured' (装甲, zhuangjia), the 'S' for 'transport' (输送, shusong), and the 'L' for 'wheeled' (轮式, lunshi). The hull of the vehicle is boat-shaped with a sloped upper hull. The driver sits on the front left side of the hull, while the commander occupies the right side. Both positions are equipped with circular hatches that open to the rear. The engine compartment is located behind the driver, creating a narrow access corridor on the right side to reach the battle stations in the turret. Access for dismounts is provided through a single-piece door at the rear of the hull. The dismount compartment of the ZSL-92 APC has been modified for SPMH (Self-Propelled Mortar Howitzer) purposes to accommodate the large turret and ammunition. A fully enclosed, welded steel turret is mounted in the center of the roof. This design is very similar to that used by the Russian 120 mm NONA-SVK SPMH, which is mounted on a modified BTR-80 (8×8) APC hull.
Ground Specifications
Crew
4
Mobility Type
Wheeled (6x6)
Main Weapon
120mm mortar
Engine
V-8 Diesel (320 hp)
NBC Protection
Yes
Max Speed
85.0 km/h
Range
800.0 km
Variants
WMA029
Export Version.
PLZ-10 (Type 05A)
Tracked Variant based on the hull of the ZBD-08.
Type 07PA
Wheeled export version.
Video Link
System
Alternative Designation
PLL-05; Type 05; WMA029
Type
Self-Propelled Mortar System
Caliber
120 mm
Manufacturer
NORINCO
Configuration
6x6
Status
In Service and Production
Estimated out of Service Date
2040
Family
PLL Family
Chassis
Based off of the Chinese WZ551 APC hull.
Crew
4 ea
Displacement Time
INA
Emplacement Time
INA
Maximum Effective Range (Road)
800 km
Maximum Effective Range (Howitzer)
9.5 km
Note
The PLL-05 is highly mobile and can be rapidly deployed using road and motorway networks.
Dimensions
Length
6.695 m
Width
2.8 m
Height
2.82 m
Wheelbase
1.9 m + 1.9 m
Weight
16,500 kg
Ground Clearance
0.41 m
Automotive
Engine Name
Deutz BF8L413FV
Engine Type
V-8, air-cooled diesel engine
Engine Power
320 hp at 2,500 rpm
Transmission
ZF 6HP500 automatic transmission
Fuel Capacity
400 liters
Suspension
Coil springs and hydraulic shock absorbers
Electrical System
24V
Gearbox
ZF 6HP500, Automatic. Fwd. 5, Rev: 1
Steering
hydraulic, first and second axles
Clutch
torque converter
Tires
14.00 × 20 run flat
Range
800 km
Speed, Maximum Road
85 km/h
Speed, Average Cross
75 km/h
Speed Maximum Swim
8 km/h
Fully Amphibious
Yes
Powered Steering
Yes, Standard
Gradient
60%
Side Slope
30%
Vertical Step
0.6 m
Trench
1.2 m
Fording Depth
Amphibious
Communications
TBR-142
VHF FM Transceiver
Yes, TBR-142(I)
VHF Range
1 to 50 km
Megahertz
40.000 to 59.975 MHz
Output Power
1 to 0.3 Watts
Power
12V Ni-Ca Rechargeable Battery or external 12V DC power source
Weight
2.7 kg
Antennas
3 Total: a 1.3m whip antenna, a 0.3m short antenna, and a 10m wire antenna
Proliferated
Widely with Artillery/Gun/Missile/Reconnaissance/C2 Units
Control Device
TBR-142(II)
Multi-function Field Phone
TBR-142(IIID)
Anti-Aircraft Control Unit
TBR-142(IIIG)
ZXY88-200 C2 Capable
Yes
Messaging
Limited Capability
Amplifier
Available
Physical Conditions Limitations
Terrain and Weather favorable
Main Gun
System
Name
1 × turret mounted 120mm mortar
Type
Mortar Howitzer
Caliber
120 mm
Length, Barrel
INA
Loader Type
semi-automatic ammunition loading system.
Breech Type
vertical sliding breech mechanism
Fume Extractor
No
Thermal Sleeve
No
Muzzle Break
No
Max Rate of Fire
6-8 rds/min for HE, 10 rds/min for Mortar Bomb, 4-6 rds/min for HEAT
Sustain Rate of Fire
See Above
Time the Max Rate of Fire can be Sustained
INA
Max Elevation
+80 deg
Min Elevation
-4 deg
Traverse Range
360 deg
Range Finder Type
Laser
Note
The PLL-05 can also fire the GP120, GP4, GP120 GMB, and GP120A
Ammunition (Option 1)
Type
HE (WMA 029)
Caliber
120 mm
Length
709 mm
Weight
13.9 kg
Warhead Weight
1.8 kg TNT
Muzzle Velocity
425 m/s
Fuse Type
INA
Maximum Effective Range
8,500 m
Minimum Effective Range
400 m
Armor Penetration
Yes
Pre-Engraved Casing
No
Basic Load
30 Total, any type of projectile combination
Ammunition (Option 2)
Type
HE (WMA 029)
Caliber
120 mm
Length
600 mm
Weight
17.3 kg
Warhead Weight
5 kg TNT
Muzzle Velocity
425 m/s
Fuse Type
INA
Maximum Effective Range
9,500 m
Minimum Effective Range
1,000 m
Armor Penetration
Yes
Pre-Engraved Casing
No
Basic Load
30 Total, any type of projectile combination
Ammunition (Option 3)
Type
HEAT (WMA 029)
Caliber
120 mm
Length
625 mm
Weight
10 kg
Warhead Type
HEAT
Muzzle Velocity
425 m/s
Fuse Type
INA
Maximum Effective Range
1,200 m
Minimum Effective Range
600 m
Armor Penetration
Yes
Pre-Engraved Casing
Yes
Basic Load
30 Total, anytype of projectile combination
Ammunition (Option 4)
Type
Cargo (BM3)
Caliber
120 mm
Length
621 mm
Weight
17.3 kg
Payload
30 bomblet
Muzzle Velocity
INA
Fuse Type
INA
Maximum Effective Range
9,000 m
Minimum Effective Range
INA
Armor Penetration
INA
Pre-Engraved Casing
No
Basic Load
30 Total, anytype of projectile combination
Ammunition (Option 5)
Type
Rocket-assisted projectile (RAP)
Caliber
120 mm
Length
600 mm
Weight
17.3 kg
Payload
3.25 kg
Muzzle Velocity
265 m/s
Fuse Type
INA
Maximum Effective Range
13,500 m
Minimum Effective Range
INA
Armor Penetration
Yes
Pre-Engraved Casing
Yes
Basic Load
30 Total, anytype of projectile combination
Coaxial Weapon System
System
Name
1 x QJZ-89
Caliber
12.7 mm
Type
Heavy Machine Gun
Manufacturer
NORINCO
Length, Total
2,119 mm
Length, Barrel
1,003 mm
Weight (Gun Only)
17.5 kg
Weight (Tripod Only)
8.5 kg
Action
Gas/Recoil
Muzzle Velocity
850 m/s
Max Rate of Fire
600 rds/min
Sustain Rate of Fire
450-600 rds/min
Time the Max Rate of Fire can be Sustained
INA
Maximum Range
1,600 m
Feed System
Belt
Sights
Iron/Optical
Ammunition
Type
Rifle
Caliber
12.7 mm
Cartridge
12.7x108mm
Armor Penetration
Yes
Basic Load
INA
Fire Control
Name
INA
Computerized FCS
Yes
Thermal Sight Vehicle Commander
Yes
Thermal Sight Gunner
Yes
Main Gun Stabilization
No
Aiming Mode
Automatic, Semi-automatic, and Manual
Direct Fire
Yes, Primary Mission
Indirect Fire
Yes
Protection
Hull Armor
Welded Steel Turret, small arms fire and shell splinters.
Turret Armor
Welded Steel Turret, small arms fire and shell splinters.
Applique Armor
Available
Automatic Fire-Extinguishing System
Yes
Explosive Reactive Armor
INA
Active Protection System
INA
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
Yes
IR Signature
INA
Grenade Launchers
The vehicle has banks of 76 mm smoke grenade launchers. The smoke grenades have a range of 100 m and can be launched in volleys of two, four or eight rounds. Once deployed, the grenades form a smoke screen that is 120 to 150 m long and lasts for 2 to 4 minutes.
Grenade Launcher Maximum Distance
100 m
Smoke Equipment
Yes
Smoke Screen
120-150 m
Smoke Screen Duration
2-4 sec
Image Sources
Notes
https://www.militarytoday.com/artillery/pll_05_images.htm; https://www.armyrecognition.com/chinese_china_army_wheeled_armoured_vehicle_uk/pll-05_pll05_wma029_120mm_self-propelled_mortar_howitzer_wheeled_armoured_technical_data_sheet.html; https://old.weaponsystems.net/weaponsystem/DD02%20-%20PLL05.html;
Details
Country of Origin
China
Category
Self-Propelled Mortar System
Land > Infantry Vehicles > Self-Propelled Mortar System
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.7 m
Width
2.8 m
Height
2.82 m
Weight
16500 kg
Operators (1)
China
