D-20 Russian Unmanned Aerial Vehicle (UAV)

D-20

Tactical Unmanned Aerial Vehicle (UAV)

Spotted an error? Sign in to suggest an edit.

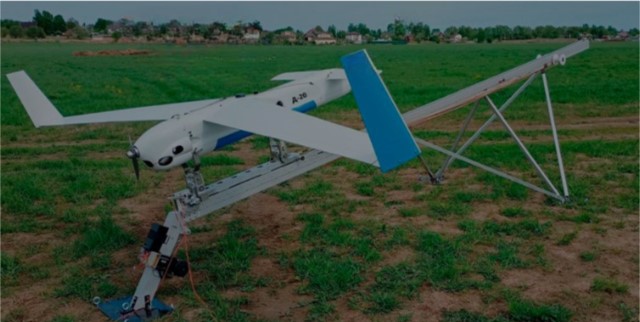

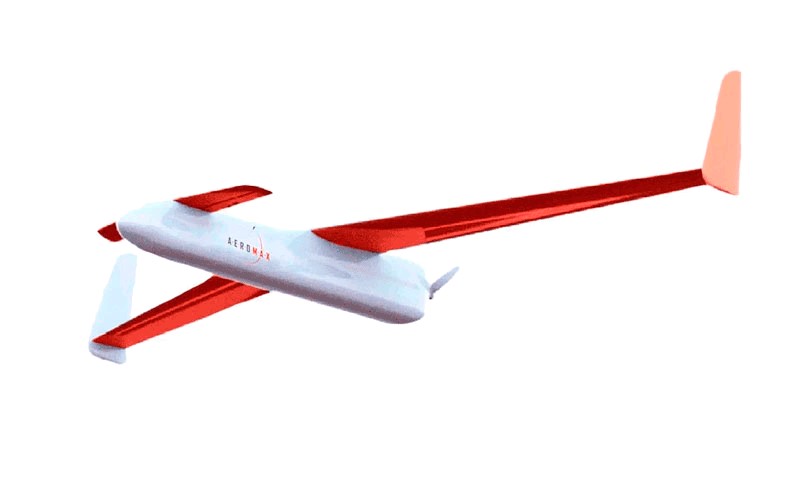

D-20 Russian Unmanned Aerial Vehicle (UAV) — D-20 Russian UAV (A)TRADOC ODIN WEG

Basic Information

Name

D-20 Russian Unmanned Aerial Vehicle (UAV)

Designation

D-20

Alternate Designation

D-20

Equipment Type

Tactical Unmanned Aerial Vehicle (UAV)

Manufacturer

Aeromax Group

Date of Introduction

2022

Description

The D-20 Russian Unmanned Aerial Vehicle (UAV) is designed for operation in remote and extended areas, including those with large-scale facilities and objects. With a flight duration of 14 hours, the D-20 can cover distances of over 1000 km. The D-20 Unmanned Aerial System (UAS) includes the following components: - **Unmanned Aerial Vehicle (UAV):** Constructed using a “duck” aerodynamic configuration. - **Power Unit:** Features an internal combustion engine of 40 cm³ with a capacity of 3.7 hp, mounted on a unique vibration-damping motor frame, complete with a starter generator. - **Starting Device:** Equipped with rubber shock absorbers. - **Ground Control Station (GCS).** With a full fuel load, the UAV can carry a payload of up to 5 kg. Its design incorporates two compartments for payload placement, allowing for the simultaneous use of multiple loads. The potential payload options include: - High-resolution camera - Video surveillance system - Multispectral camera - Thermal imaging camera - Magnetometric equipment

Air & Air Defense Specifications

Engine Internal combustion engine of 40 cm3 (3 hp)

Max Speed 45.0 km/h

Range 1000.0 km

Service Ceiling 4000 m

Wingspan 4000.00 m

Payload Capacity 5 kg

Variants

D-20K The D-20K Russian Unmanned Aerial Vehicle (UAV) is designed for vertical take-off and landing, enabling it to operate in remote and extended areas, as well as over large landscapes. The D-20K UAV consists of several key components: 1. **Unmanned Aerial Vehicle (UAV)**: Designed with a "duck" aerodynamic configuration. 2. **Power Unit**: Powered by a 40 cm³ internal combustion engine with a capacity of 3.7 hp, featuring a unique vibration-damping motor frame and a starter generator. 3. **Ground Control Station (GCS)**: Allows for monitoring and controlling the UAV. The D-20K can take off and land on an unprepared site measuring 7 x 7 meters. It can also be equipped with various payload options, including: - A high-resolution nadir camera. - High-resolution nadir and perspective cameras. - A thermal imager and multispectral camera. - A laser scanner.

System

Alternate Designation D-20

Type Unmanned Aerial Vehicle (UAV)

Manufacturer Aeromax Group

Payload Capacity 5 kg

Payloads Aerophotographic Camera Aerophotographic camera is designed to capture a series of image frames of the underlying terrain from the aircraft board and saving them on a solid-state recorder

Aerial Laser Scanners Aerial laser scanners are used for geodetic measurements during geotechnical investigations, surveying, cadastral and land management works.

Multispectral Camera Enables images of the same area in different areas of the electromagnetic spectrum, revealing processes and phenomena that are difficult to detect in a visible spectrum image.

Professional Thermal Imaging Camera AC-130/40T The AC-130/40T possesses a function of real-time temperature measurement and when saving photos of an object each pixel of the picture contains information about temperature.

Multipurpose Payload AC- 170/30/19T Multipurpose payload AC-170/30/19T combines at once visual and thermal imaging matrices. This helps to reduce the camera weight and allows to receive twice as large the data during the flight, hence increasing the efficiency of air inspection.

Take-off Mode From a launcher

Landing Mode On parachute

Dimensions

Length 2,000 mm

Height INA

Wingspan 4,000 mm

Maximum Takeoff Weight 29 kg

Automotive

Engine Name INA

Engine Type Internal combustion engine of 40 cm3

Engine Power 3.7 hp

Maximum Speed 45 m/s (160 km/h)

Maximum Range 1,000 km

Service Ceiling 4,000 m

Maximum Flight Duration with Payload of 1.5 kg 14 hours

Maximum Flight Duration with Payload of 3 kg 10 hours

Maximum Flight Duration with Payload of 5 kg 8 hours

Wind limit speed, no more 15 m/s

Image Sources

Notes https://www.aeromax-group.com/products/airplanetypeuas/d-20/

Details

Country of Origin Russia

Category UAVs

Air > UAVs

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

2 m

Width

4 m

Height

—

Weight

29 kg

Operators (1)

Russia

Something went wrong. Please reload the page. Reload
