Caterpillar 130G American 6x6 Motor Grader

Caterpillar 130G

Motorcycle

Spotted an error? Sign in to suggest an edit.

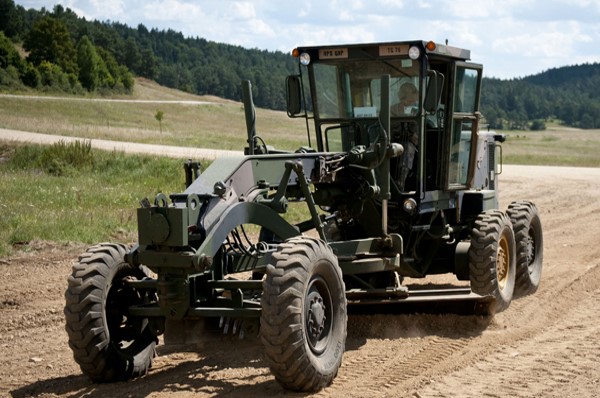

Caterpillar 130G American 6x6 Motor Grader — Catapiller130G(A).jpgTRADOC ODIN WEG

Basic Information

Name

Caterpillar 130G American 6x6 Motor Grader

Designation

Caterpillar 130G

Alternate Designation

Caterpillar 130G

Equipment Type

Motorcycle

Manufacturer

Caterpillar

Date of Introduction

1975

Description

The Caterpillar 130G grader has been in service with the US military for more than 30 years. It was adopted by the US military in the late 1970s. Basically it was a standard commercial construction machine, with some minor modifications in order to suit military requirements. The Caterpillar company had no special military version of the 130G grader.

Ground Specifications

Crew 1

Engine 7-liter Caterpillar 3304 turbocharged diesel engine (135 hp)

Max Speed 39.0 km/h

System

Alternative Designation Caterpillar 130G

Type Motor Grader

Manufacturer Caterpillar

Crew 1 ea

Note The Caterpillar 130G was designed to create a flat surface during the grading process. Graders create fine "finish grade", while the "rough grading" is performed by bulldozers, scrappers, or other military engineer vehicles. The Caterpillar 130G was designed for construction and maintenance of dirt and gravel roads. This machine can prepare the base course to create a wide flat surface for paved roads. It can also produce inclined surface to give cant to roads, or produce drainage ditches. Additional front blade and rear ripper can be attached.

Dimensions

Length 7.93 m

Width 2.41 m

Height 3.33 m

Blade Width 3.66 m

Weight 15 tons

Automotive

Engine Name Caterpillar 3304

Engine Type 7-liter Caterpillar 3304 turbocharged diesel engine

Engine Power 135 hp

Transmission Transmission of this grader has 6 forward and 6 reverse speeds.

Maximum Speed 39 km/h

Range INA

Gradient INA

Side Slope INA

Vertical Step INA

Trench INA

Fording with deep Fording Kit up to 0.76 m

Protection

Hull Armor INA

Applique Armor No

Mine Clearing No

NBC Protection INA

Smoke Equipment No

Image Sources

Notes https://machineryline.info/-/sale/graders/CATERPILLAR/130G-Ex-army--23081909280144582100; https://www.deltaheavymachinery.com/en/stock/e05820/; https://www.militarytoday.com/engineering/caterpillar_130g.htm;

Details

Country of Origin United States

Category Mobility

Land > Combat Support Vehicles > Mobility

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

7.93 m

Width

2.41 m

Height

3.33 m

Weight

15000 kg

Operators (2)

United States

Australia
