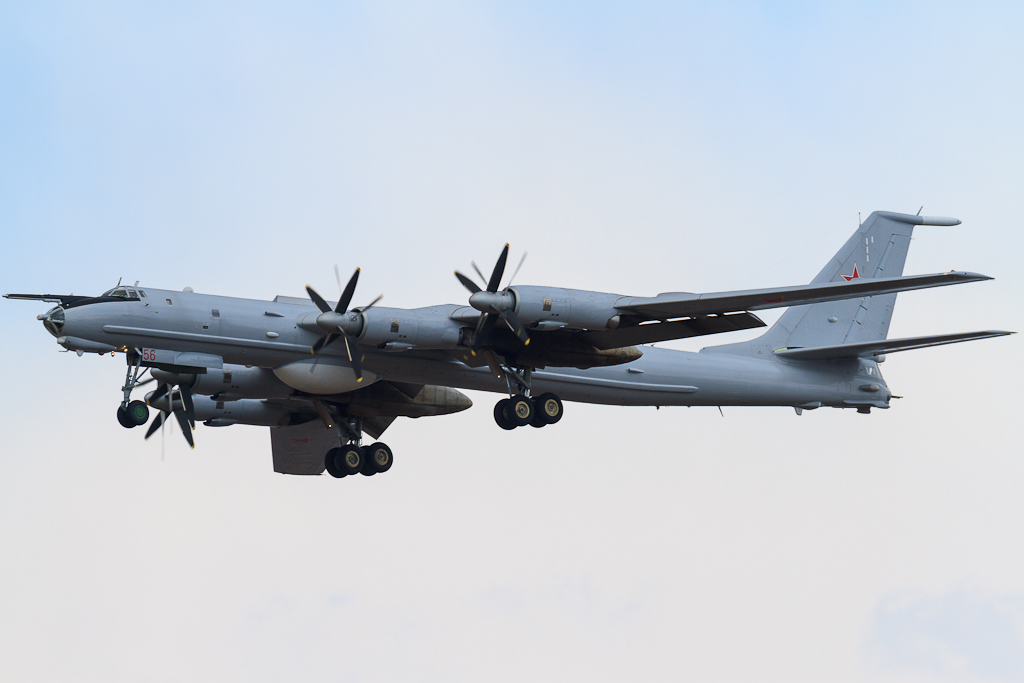

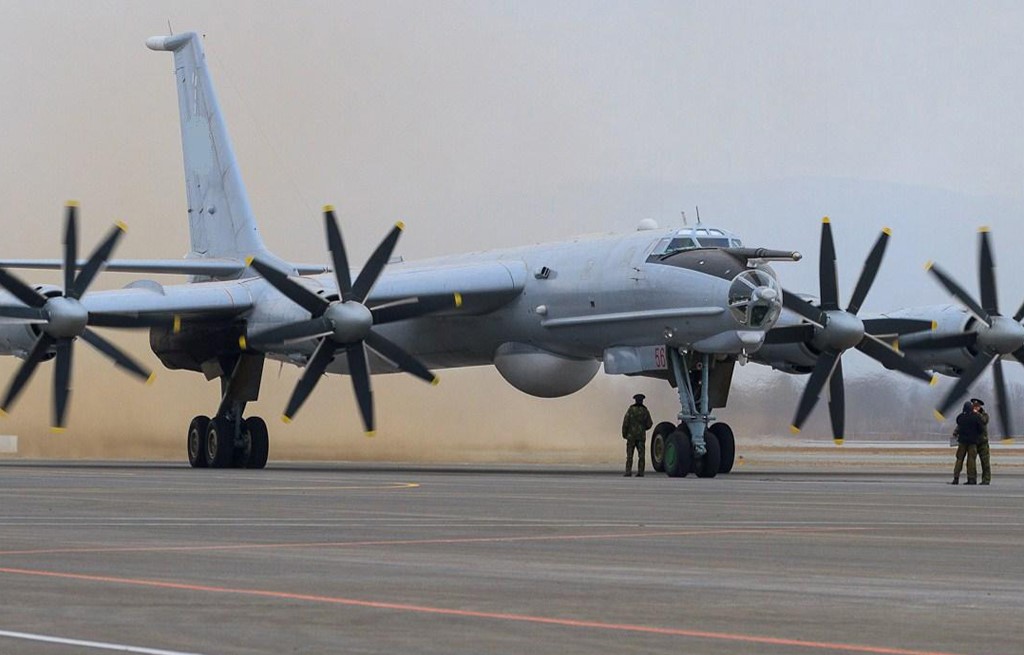

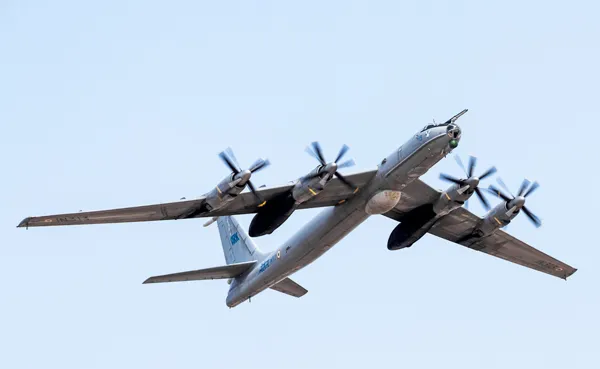

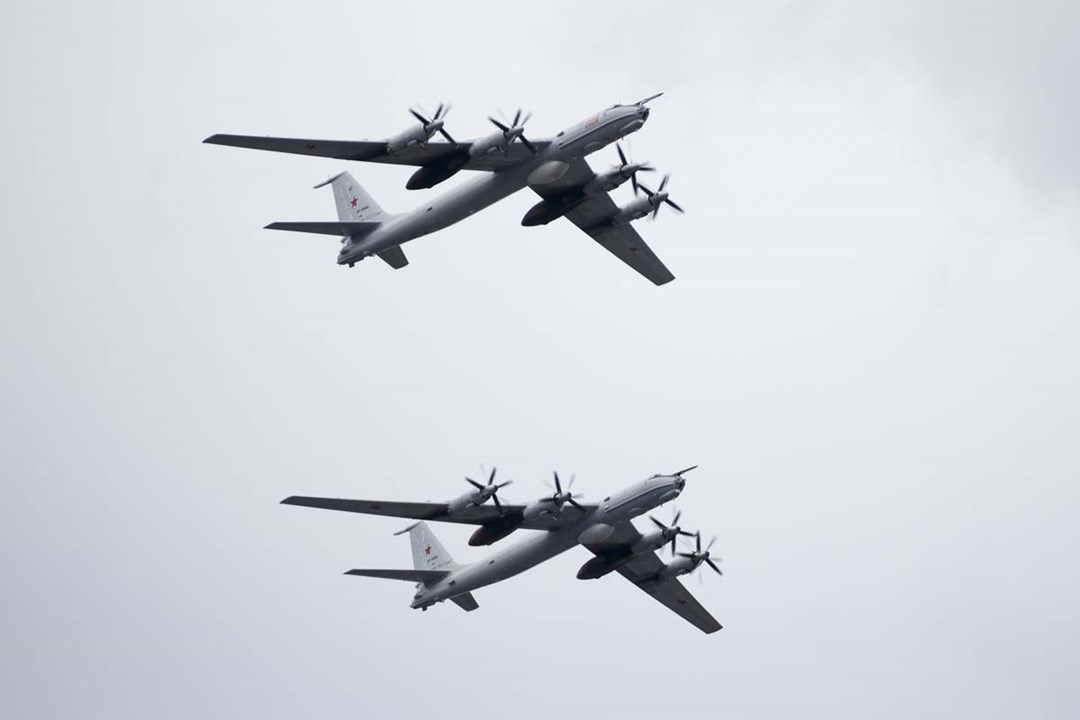

TU-142 (Bear F) Russian Long-Range Anti-Submarine Warfare (ASW) Aircraft

TU-142

Long-Range Anti-Submarine Warfare (ASW) Aircraft
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
TU-142 (Bear F) Russian Long-Range Anti-Submarine Warfare (ASW) Aircraft
Designation
TU-142
Alternate Designation
Equipment Type
Long-Range Anti-Submarine Warfare (ASW) Aircraft
Manufacturer
Tupolev OKB, Moscow, Russia (design bureau)
Date of Introduction
1972
Description

TU-142 (Bear F) Russian Long-Range Anti-Submarine Warfare (ASW) Aircraft is a Soviet/Russian maritime reconnaissance and anti-submarine warfare (ASW) aircraft derived from the Tu-95 turboprop strategic bomber. A specialized communications variant designated Tu-142MR was tasked with long-range communications duties with Soviet ballistic missile submarines. The Tu-142 was designed by the Tupolev design bureau and manufactured by the Kuibyshev Aviation and Taganrog Machinery Plants from 1968 to 1994. Formerly operated by the Soviet Navy and Ukrainian Air Force, the Tu-142 currently serves with the Russian Navy. Developed in response to the American Polaris program, the Tu-142 grew out of the need for a viable Soviet ASW platform. It succeeded the failed Tu-95PLO project, Tupolev's first attempt at modifying the Tu-95 for maritime use. The Tu-142 differed from the Tu-95 in having a stretched fuselage to accommodate specialized equipment for its ASW and surveillance roles, a reinforced undercarriage to support rough-field capability, improved avionics and weapons, and enhancements to general performance. The Tu-142's capability was incrementally improved while the type was in service, eventually resulting in the Tu-142MZ, the final long-range Tu-142 with highly sophisticated combat avionics and a large payload. Tupolev also converted a number of Tu-142s as avionics (Tu-142MP) and engine (Tu-142LL) testbeds.

Air & Air Defense Specifications
Crew 11
Engine Turboprop
Max Speed 855.0 km/h
Cruise Speed 735.0 km/h
Variants
Tu-142 A lengthened Tu-95 with much defensive armament removed, and instead incorporating ASW systems. Twelve aircraft initially had 12-wheel main undercarriage bogies. Six later aircraft had four-wheel bogies. Built by Kuibyshev Aviation Plant.
Tu-142M A 30-centimetre (12 in) stretch to front fuselage, redesigned cockpit and two-axle main undercarriage bogies. Built by Taganrog.
Tu-142MK Greatly improved variant with new Korshun radar, avionics and ASW equipment. 43 Tu-142MKs were constructed by Taganrog.
Tu-142MK-E Eight downgraded Tu-142MKs purchased by the Indian Naval Air Arm. E stands for "export".
Tu-142MZ The last production variant of the "Bear F", with new NK-12MP engines and a new avionics suite. Can be distinguished from other Tu-142s by its chin fairings. Built by Taganrog.
Tu-142MZ-K Proposed commercial cargo variant of the Tu-142MZ (the K standing for "kommercheskiy"), with ASW avionics removed. Also designated Tu-142MZ-C.
Tu-142MP Modified single Tu-142M used as avionics testbed.
Tu-142MR Modified Tu-142MKs built as submarine communications relay aircraft. Has distinctive external fairings and components. NATO codename "Bear J".
Tu-142LL Two converted earlier Tu-142s used for testing of turbofan engines. ASW equipment was removed.
System
Alternate Designation(s) TU-142; NATO: Bear F
Type Long-Range Anti-Submarine Warfare (ASW) Aircraft
Manufacturer Tupolev OKB, Moscow, Russia (design bureau)
Crew 11 (pilot, co-pilot, 2 navigators, navigator/weapons officer, 2 sonobuoy operators, communications operator, self-defense operator, technician, rear gunner)
Number of Engines 4 ea
Pylons 8 x underwing
Maximum Weapons Payload 9,000 kg
Normal Weapons Payload 4,400 kg
Dimensions
Length 53.07 m
Height 13.39 m
Width (Wing Span) 50.04 m
Wing Area 290 m sq
Wheel Base 16.30 m
Wheel Track 12.50 m
Empty Weight 91,800 kg
Maximum Takeoff Weight 185,000 kg
Maximum In-Flight Weight 187,700 kg after refueling
Maximum Landing Weight 135,000 kg
Automotive
Engine Name 4 x Samara/Kuznetsove NK-12MP
Engine Type Turboprop
Maximum Engine Power 15,000 eshp (11,185 ekW) each
Cruise Engine Power 9,870 eshp ( 7,360 ekW) each
Fuel Capacity 86,000 kg internal
Propellers 8-blade AV-60 K propeller units each with 2 x 4-blade coaxial contra-rotating reversible-pitch props
Maximum Speed 855 km/h
Cruise Speed 735 km/h
Ceiling 11,000 m
Takeoff Roll 2,530 m
Landing Roll 1,200 m
Range 12,000 km with no refueling
Main Gun System
System
Name 2 x twin-barrel GSh-23 Autocannon in tail turret
Type Autocannon
Caliber 23 mm
Length 1,387 mm
Barrel Length 1,000 mm
Weight 49.2 kg
Barrels 2 ea
Action Gast principle
Rate of Fire 3,400–3,600 rounds/min
Muzzle Velocity 715 m/s
Ammunition
Type Rifle
Caliber 23 mm
Cartridge 23×115 mm
Basic Load INA
Anti-Submarine Warfare (ASW) Systems
Torpedoes 3 x AT-2M torpedoes
Missiles 3 x APR-2 ASW missiles
Depth Charges nuclear or conventional PLAB-250-120
Mines unknown quantity
Air-to-Surface Cruise Missile 8 x AS-20 Kayak
Bomb Weapon Systems
Bomb Bays 2 bays in fuselage
Radar System
Search and Attack Radar 1 x Leninets Korshun-N-J band search/attack radar
Radar Warning System 1 x Pastel radar warning system
Sonar Systems
Sonobuoy System 1 x Zareche Sonobuoy System
Sonobuoys 96 (max) x RGB-1A, RGB-2, RGB-16 or RGB-25
Protection
Stealth Properties None
Heat Signature Reduction No
Add on Armor INA
EW Counter Measures 1 x Geran Active Jammer
Chaffs/Flares 50-mm dispensers inside undercarriage fairings
Details
Country of Origin Russia
Category Maritime Patrol
Air > Maritime Patrol
Filter Label
T
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
53.07 m
Width
50.04 m
Height
13.39 m
Weight
185000 kg
Operators (2)
Russia
India
