Eagle V Swiss 4x4 Tactical Vehicle
Eagle V
Tactical Vehicle
Other
Basic Information
Name
Eagle V Swiss 4x4 Tactical Vehicle
Designation
Eagle V
Alternate Designation
Eagle V
Equipment Type
Tactical Vehicle
Manufacturer
The Eagle V 4x4 is a lightweight, highly mobile tactical vehicle developed by MOWAG (now part of General Dynamics European Land Systems) that represents the latest generation in the Eagle family of protected vehicles.
Date of Introduction
2010
Description

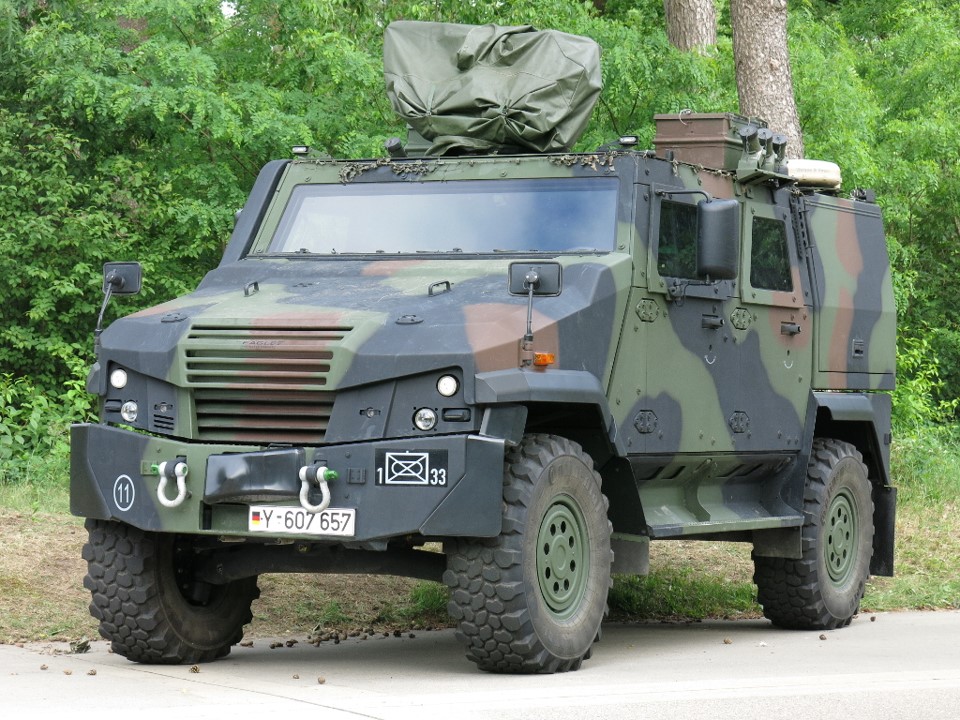

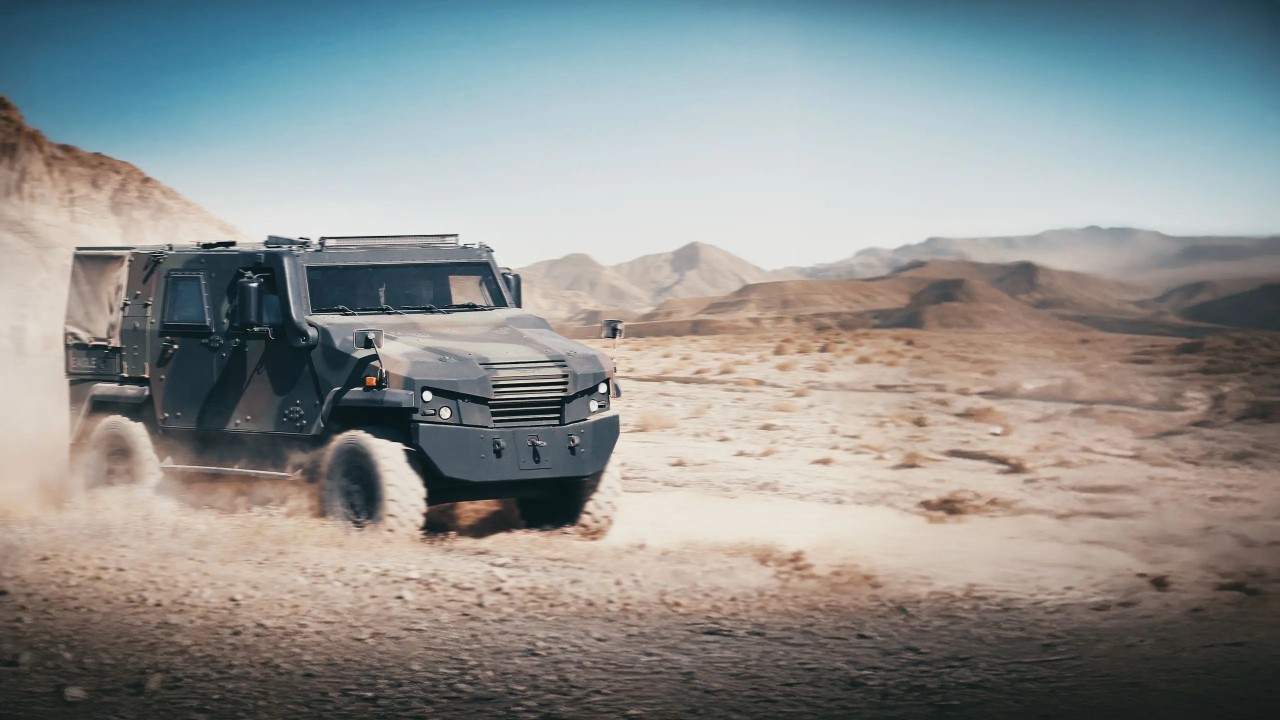

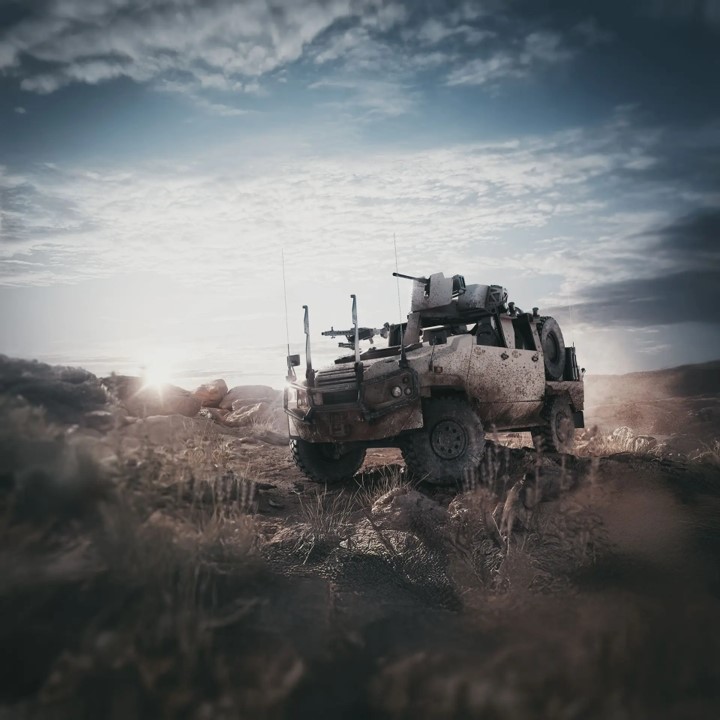

The Eagle V Swiss 4x4 Tactical Vehicle is a lightweight, highly mobile tactical vehicle developed by MOWAG (now part of General Dynamics European Land Systems) that represents the latest generation in the Eagle family of protected vehicles. It combines advanced survivability features with exceptional off-road mobility, making it well-suited for modern military operations ranging from peacekeeping to direct combat support. The vehicle is air-transportable via heavy-lift helicopters such as the CH-47 Chinook.
Ground Specifications
Crew
2
Mobility Type
Wheeled (4x4)
Engine
6.7-liter turbocharged diesel engine (360 hp)
NBC Protection
Yes
Max Speed
110.0 km/h
Range
700.0 km
Variants
Note

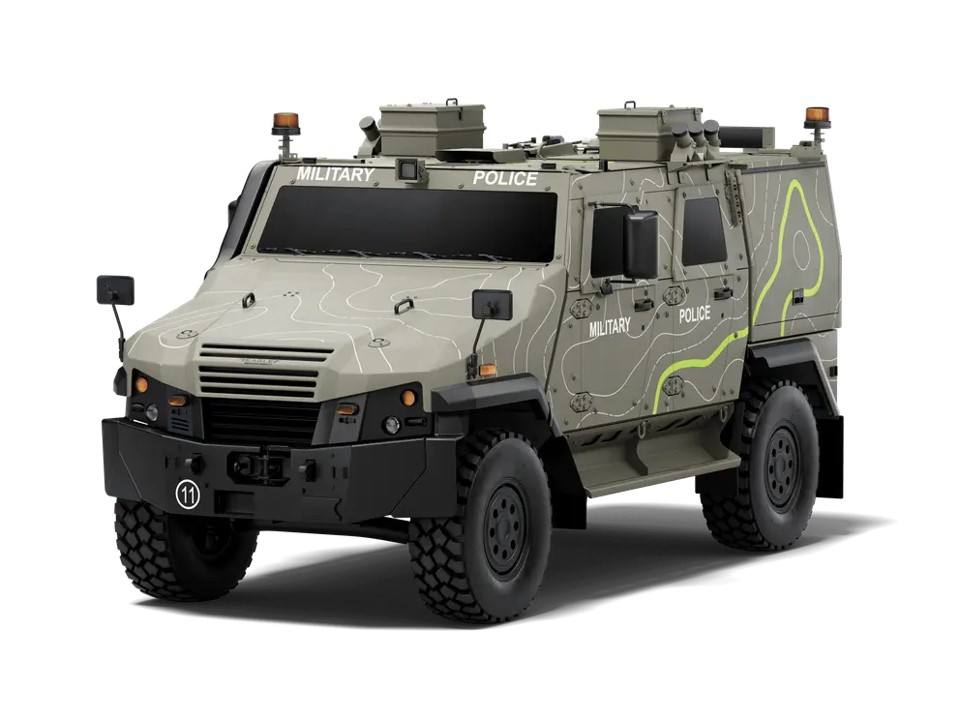

The vehicle's modular design allows it to be rapidly adapted for diverse mission roles including utility transport, troop/cargo transport, patrol, reconnaissance, command and control, medical evacuation, and observation.
System
Alternative Designation
Eagle V
Type
Tactical Vehicle
Manufacturer
The Eagle V 4x4 is a lightweight, highly mobile tactical vehicle developed by MOWAG (now part of General Dynamics European Land Systems) that represents the latest generation in the Eagle family of protected vehicles.
Configuration
4x4
Crew
2 ea
Passengers
3 ea
Payload Capacity
3,000 kg
Dimensions
Length
5,400 mm
Width
2,550 mm
Height
2,500 mm
Wheelbase
3,530 mm
Weight, Empty
7,000 kg
Weight, Combat
10,000 kg
Automotive
Engine Name
Cummins ISB
Engine Type
6.7-liter turbocharged diesel engine
Engine Power
360 hp
Maximum Range
700 km
Maximum Speed
110 km/h
Amphibious
No
Gradient
60%
Side Slope
INA
Vertical Step
INA
Trench
INA
Fording
800 mm
Approach Angle
45 deg
Departure Angle
51 deg
Turning Radius
7.5 m
Ground Clearance
440 mm
Note
The vehicle features De-Dion axles equipped with stabilizers, coil springs, and telescopic shock absorbers, combined with a Central Tire Inflation System (CTIS) that allows real-time tire pressure adjustments for varying terrains.
Main Weapon System
Note

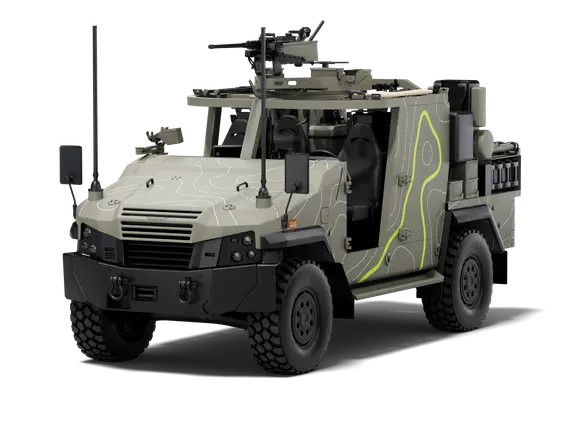

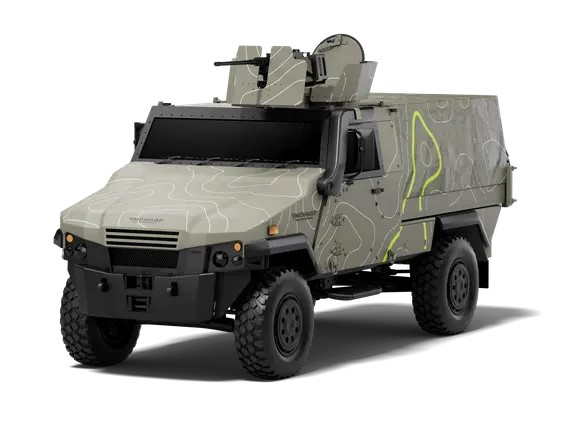

The Eagle V 4x4 can be equipped with a variety of remote-controlled or open-top turrets mounting weapons systems including 7.62-millimeter or 12.7-millimeter machine guns and 40-millimeter automatic grenade launchers.
Protection
Armor
The Eagle V 4x4 incorporates a double V-shaped hull, specifically designed to deflect mine blasts away from the vehicle structure and crew compartment. The vehicle provides STANAG 4569 ballistic and mine protection, with baseline Level 1 protection against 7.62 mm small-arms fire. The interior features blast-absorbing seats and an energy-absorbing seating system to maximize crew survivability.
Applique Armor
Enhanced armor kits are available that upgrade protection to Level 3 STANAG 4569, enabling the vehicle to withstand 7.62-millimeter armor-piercing ammunition and mine explosions of up to 10 kilograms of TNT under the wheels and floor. Optional modular armor kits made of steel and composite materials can further enhance protection, and specialized RPG mitigation systems are available for additional survivability against shaped-charge anti-tank weapons.
NBC Protection
Yes
Smoke Equipment
INA
Details
Country of Origin
Switzerland
Category
Wheeled Light Armored Vehicles
Land > Infantry Vehicles > Wheeled Light Armored Vehicles
Filter Label
E
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.4 m
Width
2.55 m
Height
2.5 m
Weight
10000 kg
Operators (4)
Germany
Denmark
Luxembourg
Switzerland
