ZSD-05 (Type 001) Chinese Amphibious Infantry Fighting Vehicle (IFV)
ZSD-05
Amphibious Infantry Fighting Vehicle (IFV)
Other
Basic Information
Name
ZSD-05 (Type 001) Chinese Amphibious Infantry Fighting Vehicle (IFV)
Designation
ZSD-05
Alternate Designation
ZSD-05; Type 001
Equipment Type
Amphibious Infantry Fighting Vehicle (IFV)
Manufacturer
NORINCO
Date of Introduction
2021
Description

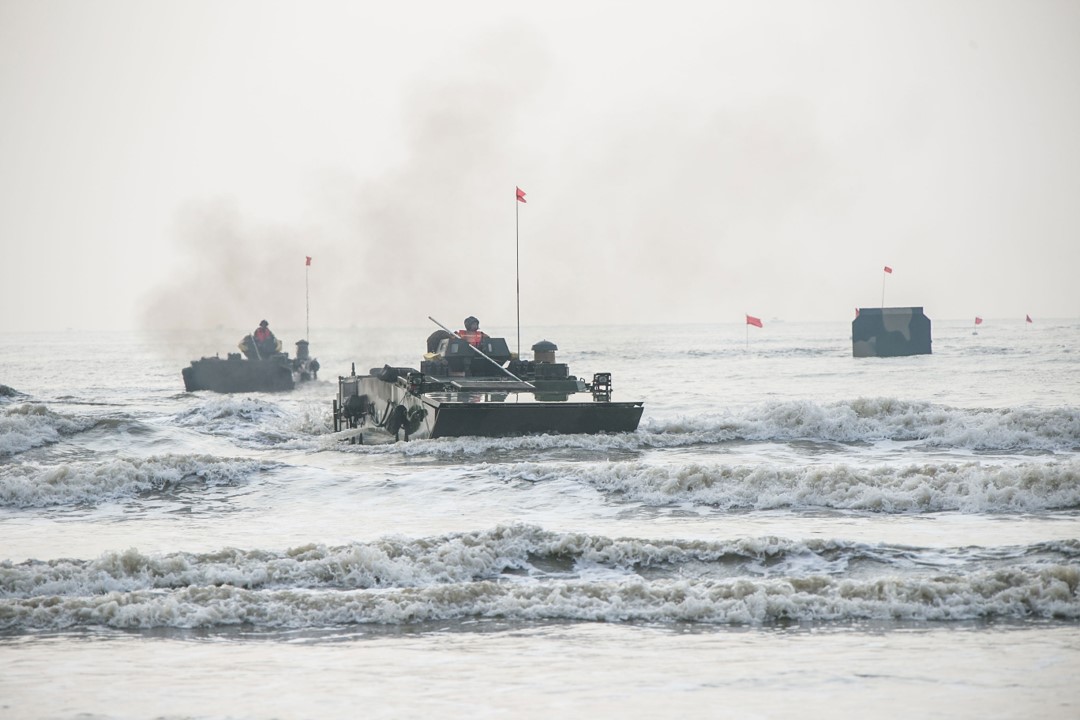

The ZSD-05 (Type 001) Chinese Amphibious Infantry Fighting Vehicle (IFV) is an APC based on the Type 05 hull. It is believed that the Type 001 is more likely to be found in service with the amphibious elements of the PLA rather than the Marine Corps, as it has been shown on exercises with the 74th Army Group. It is designed to perform as an APC and is capable of carrying a section of equipped infantry into combat alongside other Type 005 variants. The Type 001 has essentially the same layout and structure as the ZBD-05. However, the two-person turret is removed and replaced with a protected weapon station. The weapon station is the common weapon station used by PLA forces. The bottom of the armor shield is the shape of an inverted cone and the top of the shield is vertical and fitted with viewing panes. In the middle of the shield there is an opening for an MG.
Ground Specifications
Crew
3
Mobility Type
Tracked
Main Weapon
12.7 mm MG
Engine
Four-stroke turbocharged water-cooled diesel
Active Protection
Yes
NBC Protection
Yes
Max Speed
65.0 km/h
Range
500.0 km
System
Alternative Designation
ZSD-05; Type 001
Type
Amphibious Infantry Fighting Vehicle (IFV)
Manufacturer
Norinco
Family
Type 05
Crew
3 ea
Troop Compartment Capacity
11 ea
Dimensions
Length
9.5 m
Width
3.36 m
Height
3.04 m
Weight, Combat
23.0 tons
Automotive
Engine Name
INA
Engine Type
Four-stroke turbocharged water-cooled diesel
Engine Power (Land)
500 hp
Engine Power (Sea)
1,577 hp
Transmission
Machanical
Cruising Range (Land)
500 km
Speed, Maximum Road
65 km/h
Speed, Average Cross
40 km/h
Speed, Maximum Swim
25 km/h
Tracks
Racks are supported by two return rollers located between the first and last pairs of road wheels.
Suspension
Hydropneumatic
Wheels
6, unevenly-spaced road wheels per side
Gradient
60 %
Vertical Obstacle
0.6 m
Trench
2.9 m
Fording Depth
Amphibious
Sea State Capable
Sea State 4
Buoyancy Reserve
Yes
Communications
Blue Force Tracker
Yes
TBR-121
VHF Transceiver
Yes
VHF Range
1 to 50 km
Proliferated
Widely
Digital Data
Yes, Full
Control
Self-Adaptive Control (Including Automatic Antenna Tuner)
Frequency Agile
Yes
Wireless Network Capabilities
Yes
Note:
Very similar in capabilities to the US SINCGARS ASIP
Main Gun
Note
The Type 001 has essentially the same layout and structure as the ZBD-05. However, the two-person turret is removed and replaced with a protected weapon station. The weapon station is the typical weapon station used by PLA forces. The bottom of the armor shield is the shape of an inverted cone, and the top of the shield is vertical and fitted with viewing panes. An opening for an MG is in the middle of the shield. The Type 001 is armed with a single 12.7 mm MG, which is operated by a crew member from the protected weapon station.
Protection
Hull Armor
The Type 001 hull is built from welded aluminum, to which modular spaced armor is added, assessed to be composite appliqué armor. At the front of the hull, the bow blade is placed along the glacis and belly plate to provide additional protection from ballistic threats.
Hull Armor
30 mm
Sides and Rear Armor
14.5 mm
Turret Armor
INA
Applique Armor
Yes
Explosive Reactive Armor
INA
Active Protection System
Yes
Mine Clearing
Yes, Track width mine plough
Self-Entrenching Blade
INA
NBC Protection
Yes
Smoke Equipment
Yes, 8 Total, 4 on each side 76mm
Bow Blade

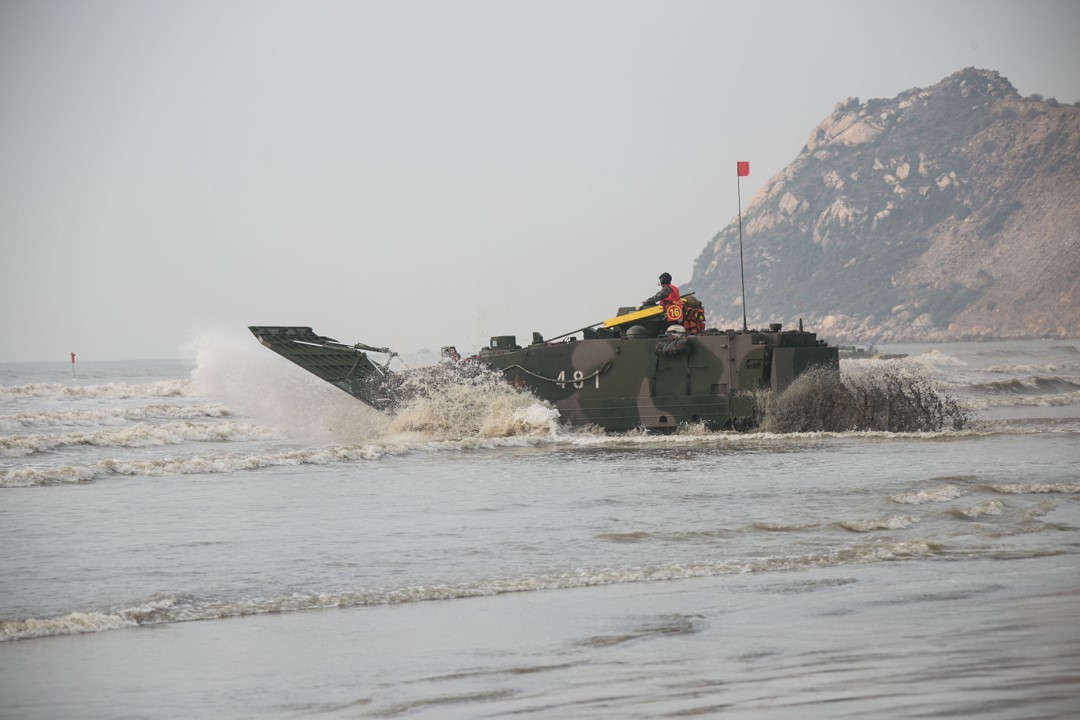

Yes, the bow blade at the front is easily recognizable and is assessed to provide an increase in speed during water crossings.
Belly Plate
Yes
Self-Sealing Fuel Tank
Yes, capable of stopping a 25 mm APFSDS round at 2,000 m.
Automatic Fire Suppression Device.
Yes
Lane Marking System
Lane marking system
Image Sources
Details
Country of Origin
China
Category
Land
Land
Filter Label
Z
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.5 m
Width
3.36 m
Height
3.04 m
Weight
23000 kg
Operators (1)
China
