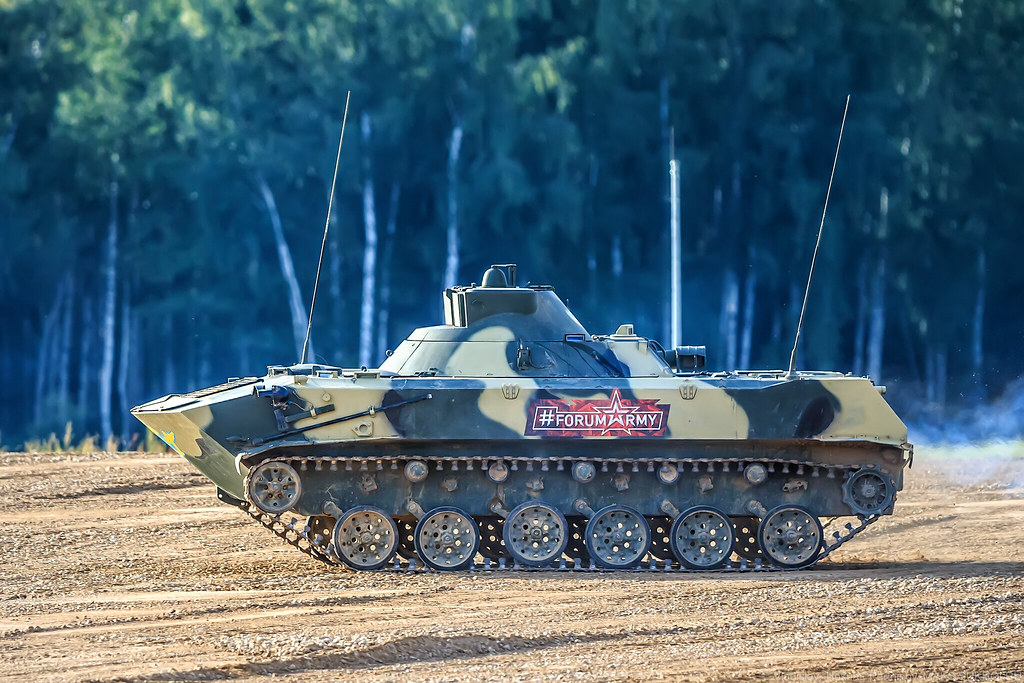

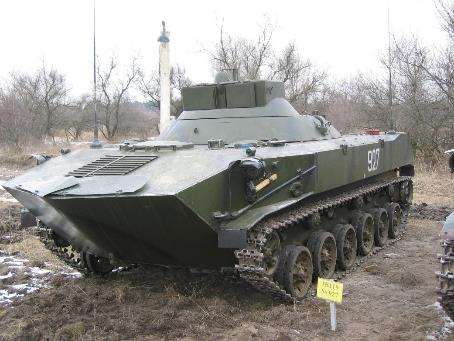

1V119 Russian Artillery Command and Reconnaissance Vehicle
1V119
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
1V119 Russian Artillery Command and Reconnaissance Vehicle
Designation
1V119
Alternate Designation
—
Equipment Type
—
Manufacturer
—
Date of Introduction
1981
Description
The ACRV 1V119 is associated with the deployment of the 2S9 Nona-S 120mm combination gun and can be parachute landed with airborne troops. The 1V119’s sensor and fire direction package is similar to the ACRV 1V14.
Ground Specifications
Crew
6
Engine
Type 5D20, 240 hp V-6, liquid-cooled diesel
Max Speed
61.0 km/h
System
Alternative Designations
1V119 Spektr
Crew
6 ea
Platform (chassis)
BMD-1
Dimensions
Combat Weight
6.7 mt
Chassis Length Overall
5.88 m
Height Overall
1.97 m
Width Overall
2.63 m
Automotive
Engine Type
Type 5D20, 240 hp V-6, liquid-cooled diesel
Cruising Range
500 km
Max Road Speed
61 km/h
Max Off-Road Speed
35 km/h
Cross-Country Speed
INA
Max Swim Speed
10 km/h
Fording Depths
Amphibious m
Communication
Radio
R-123M (3 each), R-107M (1 each)
Sensors/Components
Navigation
1T121-M Navigation System
Automatic Fire direction
1V520
Manual Fire direction
PUO-7
Other equipment
1D15 laser rangefinder, DSP-30 rangefinder, 1PN44 day/night sight, PAB-2AM aiming circle, DS-1 stereoscopic rangefinder, VOP-7 vision blocks and driver’s periscopes
Protection
Armor Turret Front
INA
Armor Turret Top
INA
Armor Hull
15 mm
NBC Protection System
Yes
Smoke Equipment
No
Image Sources
Notes
https://twitter.com/Ninja998998/status/1138346197314297856; https://www.flickr.com/photos/realhokum/43660791314; https://www.armyrecognition.com/russia_russian_army_light_armoured_vehicle_uk/btr-d_airborne_armoured_vehicle_personnel_carrier_technical_data_sheet_specifications_pictures_video.html;
Details
Country of Origin
Russia
Category
Land
Land
Filter Label
1
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
2.63 m
Height
1.97 m
Weight
6700 kg
Operators (1)
Russia
