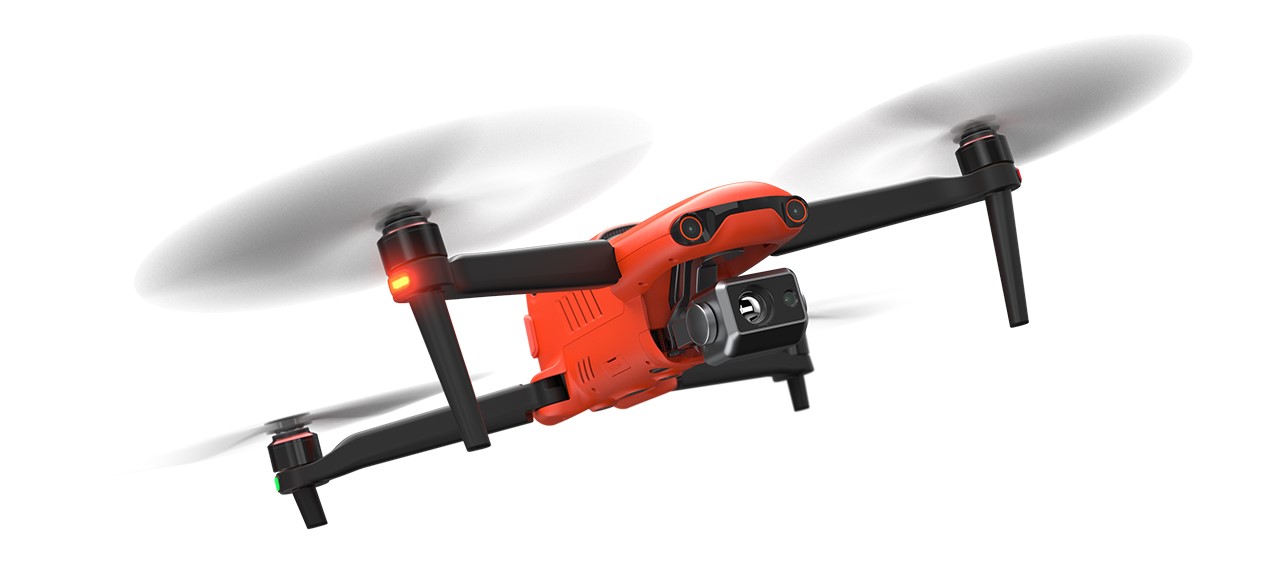

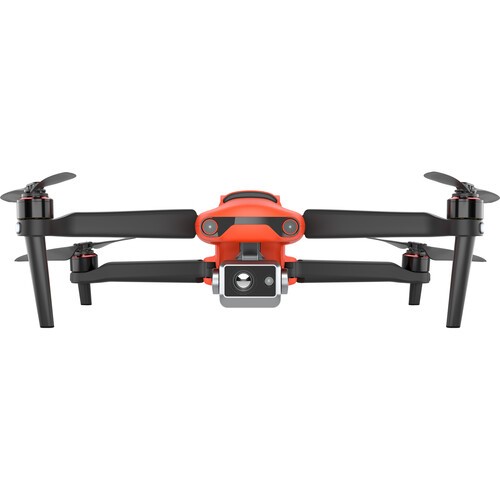

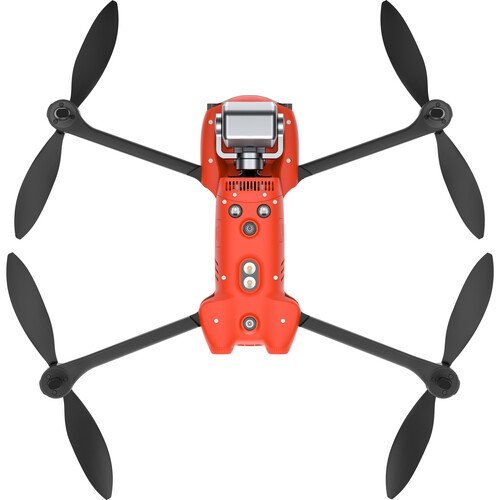

Evo II Dual 640T Chinese Unmanned Aerial Vehicle (UAV)
Evo II Dual 640T
VTOL Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Evo II Dual 640T Chinese Unmanned Aerial Vehicle (UAV)
Designation
Evo II Dual 640T
Alternate Designation
Evo II Dual 640T
Equipment Type
VTOL Unmanned Aerial Vehicle (UAV)
Manufacturer
Autel Robotics
Date of Introduction
2021
Description
The Evo II Dual 640T Chinese Unmanned Aerial Vehicle (UAV) has everything you need to take to the skies and fly missions. The 2-axis gimbal houses a dual-camera setup with a thermal and visual camera with the ability to film in stunning 8K quality.
Air & Air Defense Specifications
Engine
Electric
System
Alternate Designation
Evo II Dual 640T
Type
Vertical Take-Off and Landing (VTOL) Unmanned Aerial Vehicle (UAV)
Manufacturer
Autel Robotics
Crew
Unmanned
Operating Frequency
non-Japan：2.400 GHz - 2.4835 GHz；5.725 - 5.850 GHz
Japan：2.400 GHz - 2.4835 GHz；5.650 - 5.755 GHz
Transmission Power
2.4G
FCC/ ISED：≤27dBm
SRRC/CE/MIC/RCM：≤20dBm
5.8G (non-Japan) ; 5.7G (non-Japan)
FCC/ISED/SRRC/MIC：≤27dBm
CE/ RCM：≤14dBm

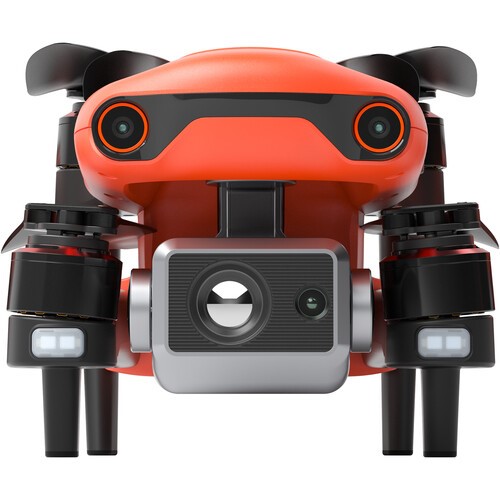

Thermal and Visual Cameras
The thermal camera on the 640T gives you the ability to view heat signature videos at up to 16x digital zoom. With the addition of a picture-in-picture mode that places thermal with visual footage, it's an essential tool to locate victims during a search and rescue, track suspects during a law enforcement pursuit, or find critical failures in equipment at plants and factories.
The visual camera transforms the EVO II Dual 640T into a filming powerhouse, letting you take stunning aerial video at up to 8K resolution, along with high-res 48MP still images. The visual camera offers crisp optical zoom up to 4x, with additional digital zoom past that up to 16x.
GPS
GPS+BeiDou+Galileo（Asia） GPS+GLONASS+Galileo（Other areas）
Gimble
Three-axis stabilization
Launching System
Vertical Take-Off and Landing (VTOL)
Recovery System
Vertical Take-Off and Landing (VTOL)
Operating Temperature
-10℃ ~ 40℃
Accessories
Three of the included accessories in this bundle are a speaker, search light, and strobe attachment. These accessories expand what you can do with the EVO II Dual 640T when out in the field. You can use the speaker to communicate instructions to individuals or a crowd from the drone. You can use the search light to assist during night flights, or you can use the strobe during night flights so others can identify where the drone is in the sky.
Dimensions
Length
508 mm
Width
634 mm
Height
111 mm
Wheelbase
397 mm
Maximum Takeoff Weight
2,000 g
Automotive
Engine Name
INA
Engine Type
Electric
Engine Power
INA
Max Ascent Speed
8 m/s
Max descent speed
4 m/s
Max Horizontal Flight Speed
20 m/s
Max Tilt Angle
INA
Max Angular Velocity
120°/s
Maximum Service Ceiling Altitude
7,000 m
Hovering Accuracy
Vertical: ±0.02 m (when the visual positioning is working normally);
±0.2 m (when GPS positioning works normally)
Horizontal: ±0.02 m (when the visual positioning is working normally);
±0.5 m (when GPS positioning works normally)
Maximum Resistance to Wind
Level 8
Max Flight Time
38 min
Max Hovering Time
33 min
Maximum Distance
25 km
Image Sources
Notes
https://shop.autelrobotics.com/products/evo-ii-pro-v3-rugged-bundle-1; https://lens.google.com/search?ep=subb&hl=en&re=df&p=AbrfA8qI0M3rkulWzEQHjFFe6qLJLyQD3OIAKSylzRpckQi-aMq5qZN0_qiX_LuHL8S5vDRl2RW9c6sf348yqXFFdrE2YThKbxLmEJARkhtRxd1KieEa5Abhyv0P5APbjBIum62lKHQzRpKIQXlkxLLcDJ9qhinLDzXlQkK-8V928lIKqZ6Q6ivoB1lxWTxL9JYBppA1FxcNMhIKKA%3D%3D#lns=W251bGwsbnVsbCxudWxsLG51bGwsbnVsbCxudWxsLG51bGwsIkVrY0tKR1ZtTnpreE9HUTFMVEV4TmpBdE5ETTVNaTFoWmpabUxXRmlZbUZtT0dNM09EVTFZUklmWXpaUVFrUlhiR0Y2T1VGYVVVVjFlRFl4WHpJd1dFSTRSVzl4V0Y5b1p3PT0iXQ==; https://lens.google.com/search?ep=gisbubb&hl=en&re=df&p=AbrfA8okbmdQMnEhzRsppU_cB55SutX-hr-b7YRU6HLBe9ppPBVYa2vvZFae_3ckuZN59xsdkoIWcDVrQ4HNDnN7HRNGbsTCjSKj3EcvJJdJ9m4Xm9fpUN1NA44ixmRsHwWh40I0wZvAu2Izm4LfolbfDuuEjEX0w6bk-QYcrbpnpWxAjO9eqoS3m0cv3QlD3W-CNpY01tSNKc870w%3D%3D#lns=W251bGwsbnVsbCxudWxsLG51bGwsbnVsbCxudWxsLG51bGwsIkVrY0tKRFF3TldVd1pEVmpMV1F6WVRRdE5EQTFNeTA1TnpGakxXRXlOekZrTW1SaU9URmxOQklmTURNMk9YWmlNemRWUzBWVlVVVjFlRFl4WHpJd1dFSmpla2x4V0Y5b1p3PT0iXQ==;
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
E
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.51 m
Width
0.63 m
Height
0.11 m
Weight
2 kg
Operators (1)
China
