Mugin-4 Pro Chinese Unmanned Aerial Vehicle (UAV)
Mugin-4
VTOL Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Mugin-4 Pro Chinese Unmanned Aerial Vehicle (UAV)
Designation
Mugin-4
Alternate Designation
Mugin-4
Equipment Type
VTOL Unmanned Aerial Vehicle (UAV)
Manufacturer
Mugin UAV
Date of Introduction
2020
Description

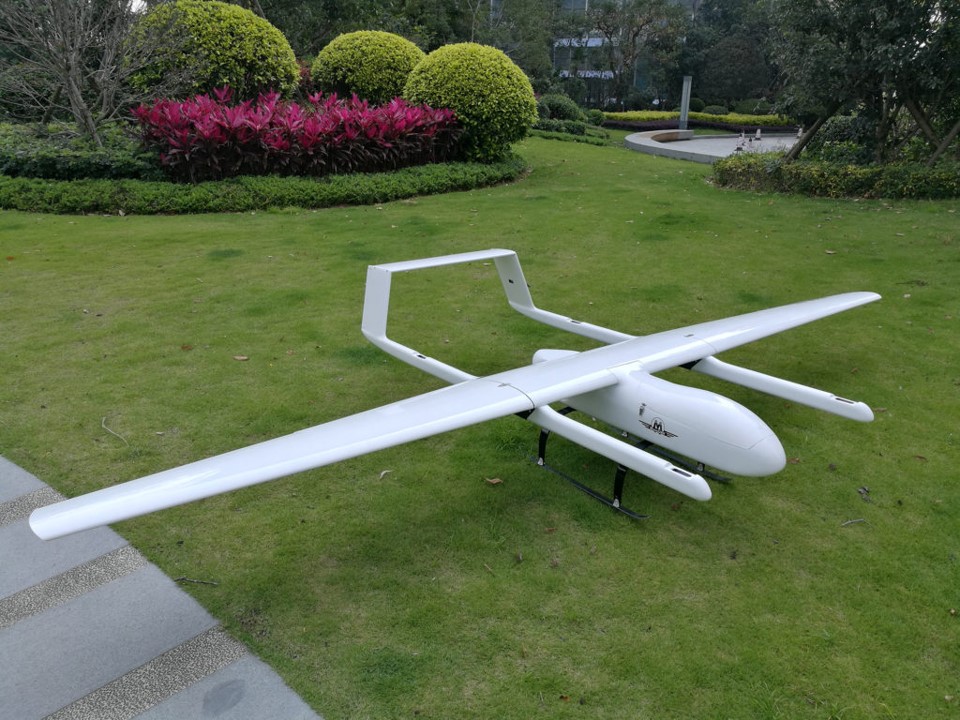

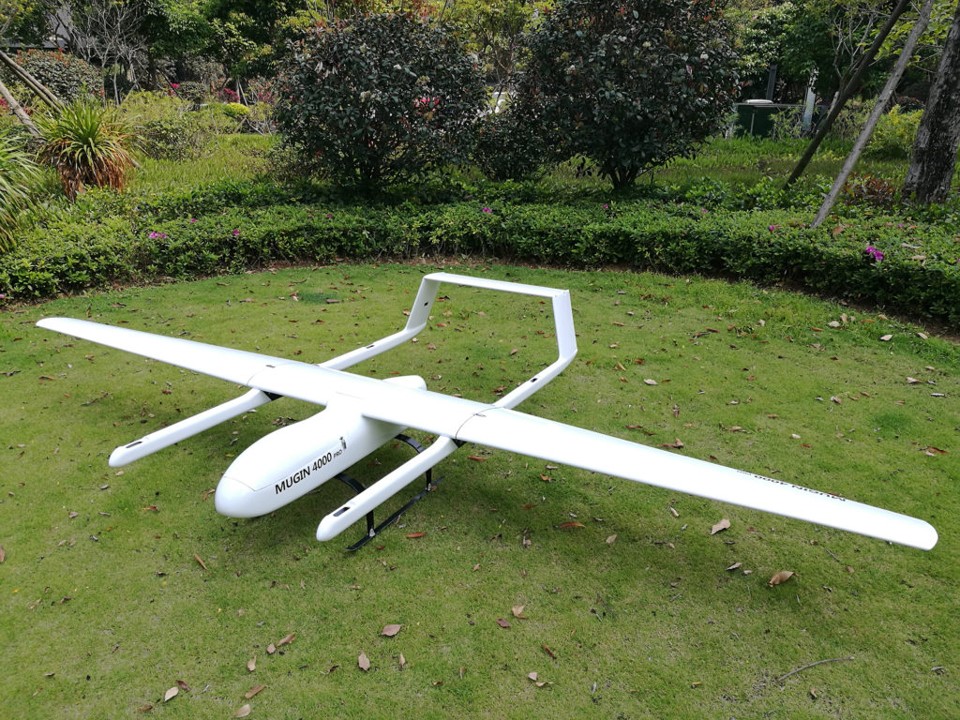

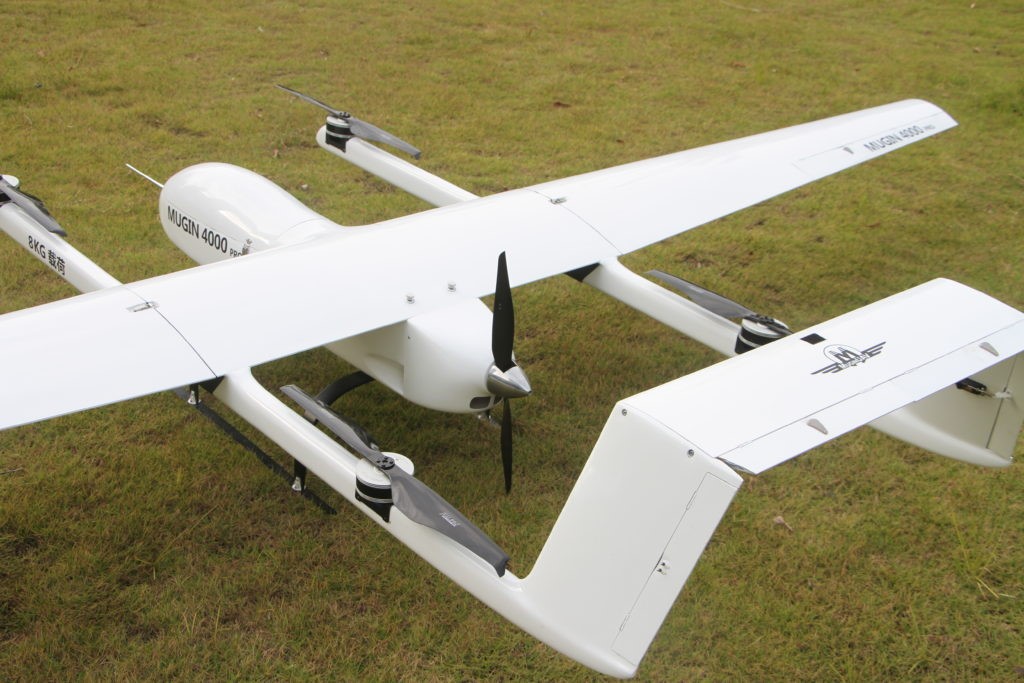

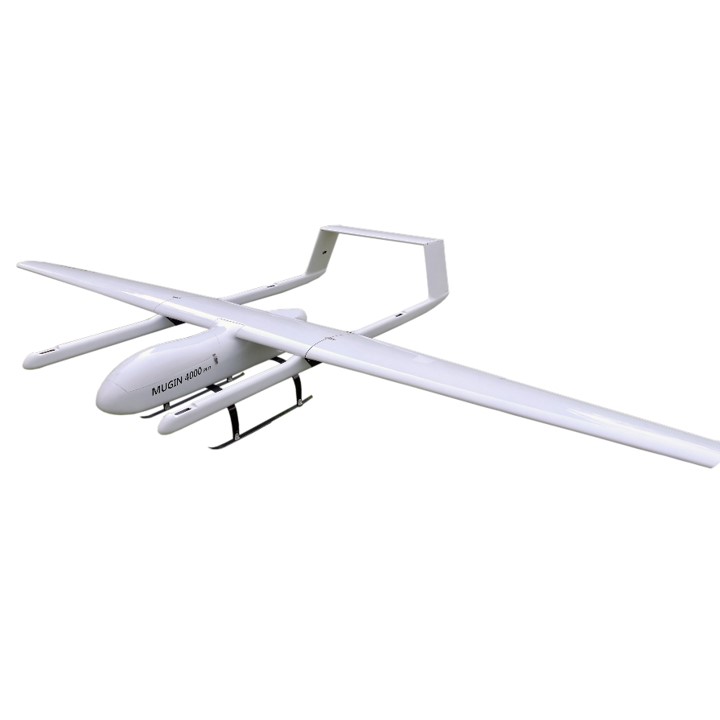

The Mugin-4 Pro Chinese Unmanned Aerial Vehicle (UAV) is designed based on the Mugen-2 Pro 2930 mm. With the same fuselage, the wingspan has been enlarged from 2930 mm to 4000 mm. The longer wingspan means the cruise speed will be reduced, and the flight time will be increased.
Air & Air Defense Specifications
Engine
Electric/Gasoline
Max Speed
112.0 km/h
Cruise Speed
80.0 km/h
Range
150.0 km
Endurance
5.00 hrs
Wingspan
4000.00 m
Payload Capacity
5 kg
System
Alternate Designation
Mugin-4
Type
Vertical Take-Off and Landing (VTOL)
Unmanned Aerial Vehicle (UAV)
Manufacturer
Mugin UAV
Autonomy
Semi-Autonomous
Crew
Unmanned
Payload Capacity
5 kg
Launching System
Vertical Take-Off and Landing (VTOL)
Recovery System
Vertical Take-Off and Landing (VTOL)
Dimensions
Length
1,900 mm
Wingspan
4,000 mm
Height
INA
Empty Weight
8.26 kg
Maximum Takeoff Weight
28 kg
Automotive
Engine Name
INA
Engine Type
Electric or gas options available
Engine Power
INA
Maximum Speed
112 km/h
Cruise Speed
80 km/h
Service Ceiling
INA
Maximum Range
150 km
Endurance
5 hours
Image Sources
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
M
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.9 m
Width
—
Height
—
Weight
28 kg
Operators (1)
China
