Soframe PPLD French 8x8 Heavy Multi-Purpose Recovery Vehicle
M32045WM
Heavy Multi-purpose Tactical Wrecker
Other
Basic Information
Name
Soframe PPLD French 8x8 Heavy Multi-Purpose Recovery Vehicle
Designation
M32045WM
Alternate Designation
M32045WM
Equipment Type
Heavy Multi-purpose Tactical Wrecker
Manufacturer
Soframe and Iveco Defense Vehicles
Date of Introduction
2010
Description

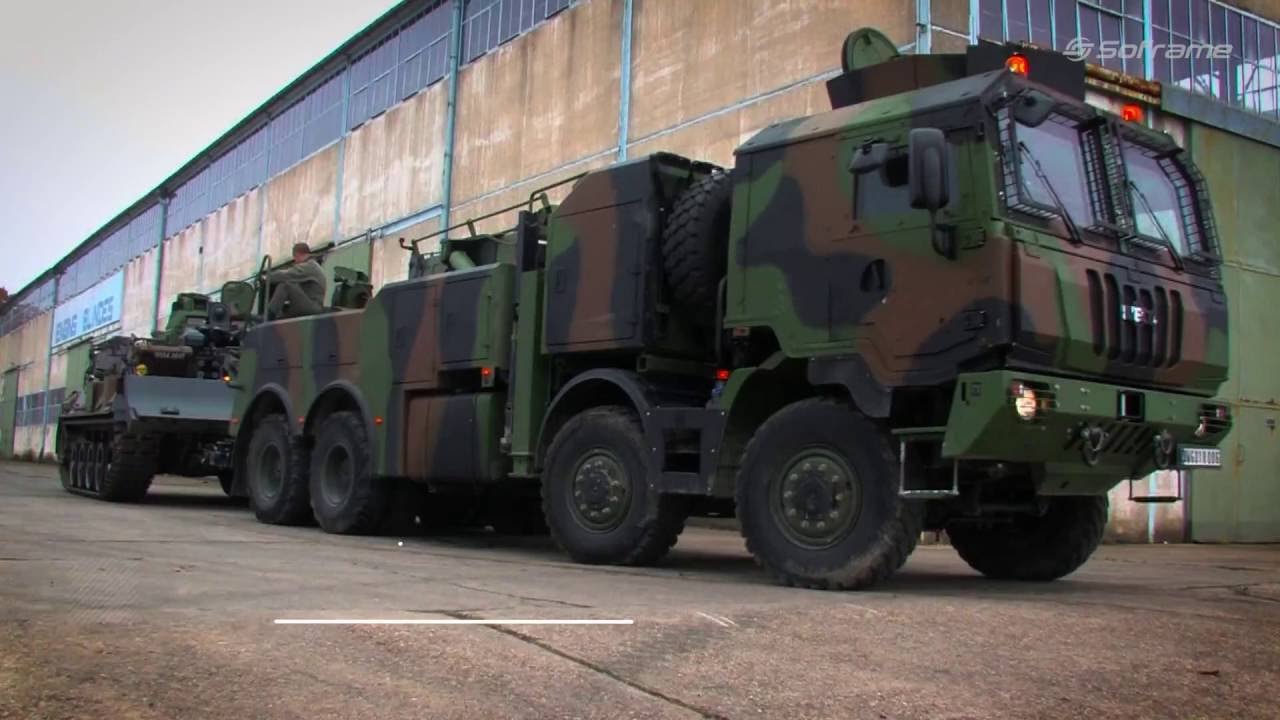

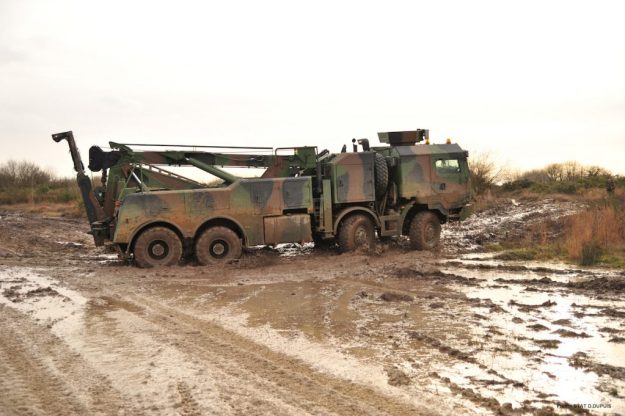

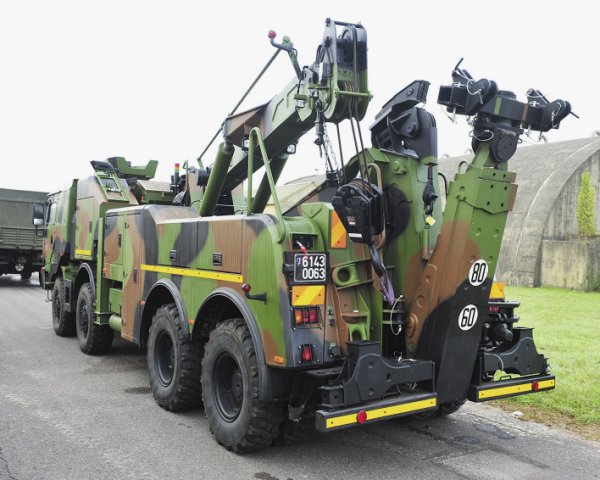

The Soframe Porteur Polyvalent Lourd de Dépannage (PPLD) vehicle is an 8x8 multi-purpose heavy recovery truck, the latest generation used by the French Army. It is available with or without armor. The PPLD can recover and tow heavy vehicles and handle heavy loads.
Ground Specifications
Crew
2
Engine
Turbocharged Diesel (450 hp)
Max Speed
90.0 km/h
Range
800.0 km
System
Alternative Designation
M32045WM
Type
Heavy Multi-purpose Tactical Wrecker
Manufacturer
Soframe and Iveco Defense Vehicles
Configuration
8x8
Crew
2 ea
Towing Capacity (Towed-Pulled)
45,000 kg
Dimensions
Length
10.3 m
Width
2.5 m
Height
3.4 m
Distance Between Equalizer Pivots
INA
Distance Between Axles, 1st to 2nd
INA
Distance Between Axles, 2nd to 3rd
INA
Distance Between Axles, 3rd to 4th
INA
Weight
33,000 kg
Automotive
Engine Name
1 x Iveco Cursor-13
Engine Type
Turbo-charged Diesel Engine
Engine Power
450 hp
Power-to-Weight Ratio
INA
Transmission
Automatic gearbox with 6 forward and 1 reverse gears
Suspension
INA
Maximum Speed
90 km/h
Range
800 km
Fuel Capacity
INA
Tire Size
INA
Gradient
60 %
Side Slope
30 %
Fording Depth
0.85 m
Protection
Armor
Cab is armored with internally-mounted panels (replaceable)
Applique Armor
INA
Active Protection System
INA
NBC Protection
No
Smoke Equipment
No
Details
Country of Origin
United States
Category
Survivability
Land > Survivability
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
10.3 m
Width
2.5 m
Height
3.4 m
Weight
33000 kg
Operators (3)
France
Belgium
Mali
