RAM II Ukrainian Loitering Unmanned Aerial Vehicle (UAV)

RAM II

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
RAM II Ukrainian Loitering Unmanned Aerial Vehicle (UAV)
Designation
RAM II
Alternate Designation
RAM II
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Date of Introduction
2020
Description

The RAM II Ukrainian Unmanned Aerial Vehicle (UAV) is a high-precision combat loitering unmanned aerial system. It is designed to execute precise effective strikes on enemy forces and to minimize collateral damage when used in the urban area. The drone is equipped with a gyro-stabilized Full HD camera with 10x optical zoom for easy target identification. The main feature is an active visual target tracking system, that allows to lock on the target using real-time video from the onboard video camera and follow the target until the impact. RAM II UAV is powered by a quiet electric engine and has a low noise signature, anti-jamming features an encrypted data link to maximize the security of the mission. Fully loaded combat UAV with 4 kg warhead can operate in a range of 30 km from the launch point and complete both surveillance and combat missions.

Air & Air Defense Specifications
Engine Electric
Max Speed 70.0 km/h
Endurance 55.00 hrs
Service Ceiling 1000 m
Wingspan 2.58 m
Payload Capacity 3 kg
System
Alternate Designation RAM II
Type Unmanned Aerial Vehicle (UAV)
Manufacturer INA
Autonomy Semi-Autonomous
Crew Unmanned
Payload Capacity 3 kg
Warhead Fully loaded combat UAV with 3 kg warhead can operate in a range of 30 km from the launch point and complete. Warhead Types: THERMOBARIC Designed to hit targets inside buildings and small armored vehicles; HIGH-EXPLOSIVE ANTI-TANK High-Explosive Anti-Tank (HEAT) warhead designed to hit heavily protected targets on land or in a sea; HE/FRAGMENTATION High-Explosive Fragmentation warhead is designed to hit open space personnel targets.
Flight Controller RAM UAV equipped with a flight controller that allows automatic missions. GCS computer software allows to plan mission, see real-time video feed from the drone and activate targeting feature.
Accuracy 1 m
Operating Temperature -20°С — +40°С

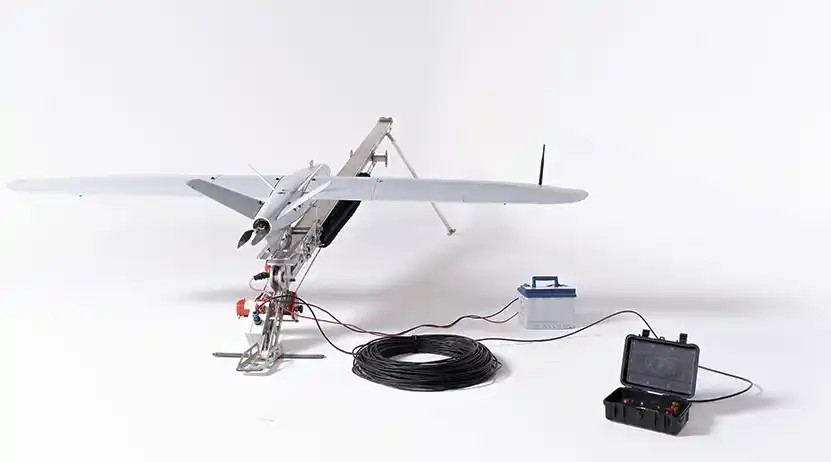

Launching System catapult
Recovery System On the fuselage
Dimensions
Length 1.45 m
Wingspan 2.584 m
Height 0.349 m
Maximum Takeoff Weight 9.8 kg
Automotive
Engine Name INA
Engine Type Electric
Engine Power INA
Maximum Speed 70 km/h
Service Ceiling 1,000 m
Maximum Distance 30 km
Endurance 55 min
Details
Country of Origin Ukraine
Category UAVs
Air > UAVs
Filter Label
R
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.45 m
Width
Height
0.35 m
Weight
9.8 kg
Operators (1)
Ukraine
