FH-902 Chinese Unmanned Aerial Vehicle (UAV)
FH-902
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
FH-902 Chinese Unmanned Aerial Vehicle (UAV)
Designation
FH-902
Alternate Designation
FH-902
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
CASC
Date of Introduction
2022
Description

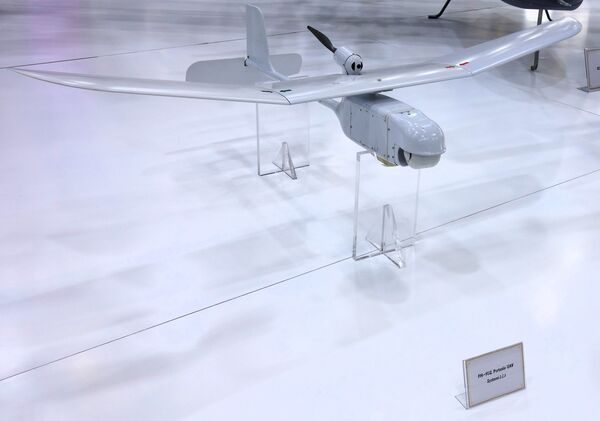

The FH-902 Chinese Unmanned Aerial Vehicle (UAV) (previously known as CH-902) is an ultra-short-range surveillance mini unmanned aerial vehicle (UAV) developed and manufactured by China Aerospace Science and Technology Corporation (CASC). The UAV is person portable/operable and can be used for real-time intelligence gathering together with border control and coastal surveillance applications.
Air & Air Defense Specifications
Engine
The FH-902 is powered by a rear-mounted electric engine that drives a two-bladed pusher propeller.
Max Speed
48.6 km/h
Range
15.0 km
Endurance
1.50 hrs
Service Ceiling
300 m
Wingspan
1700.00 m
Payload Capacity
0 kg
System
Alternate Designation
FH-902
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
China Aerospace Science and Technology Corporation (CASC)
Payload Capacity
0.65 kg
Payload
The FH-902 UAV is equipped with an electro-optic/infrared (EO/IR) imager.
Guidance System
FH-902 guidance and control features include a two-person portable ground control station (GCS). The GCS enables the EO/IR turret for real-time intelligence data gathering.
System Composition

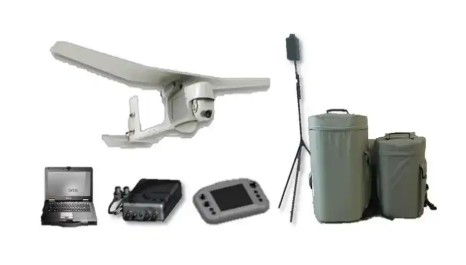

ALIT characterizes a FH-902 UAS including three UAVs, three payloads (two EO and one IR) and a portable GCS.
Launch Method
The FH-902 is hand launched.
Recovery Method
The FH-902 is recovered using the deep stall technique or gradual gliding.

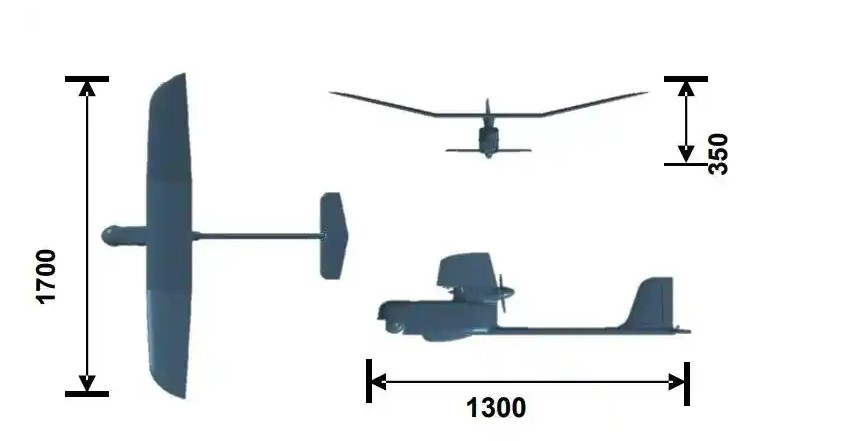

Dimensions
Length
1,300 mm
Height
350 mm
Wingspan
1,700 mm
Maximum Takeoff Weight
3.7 kg
Automotive
Engine Name
INA
Engine Type
The FH-902 is powered by a rear-mounted electric engine that drives a two-bladed pusher propeller.
Engine Power
INA
Maximum Speed
48.6 kt (90 km/h)
Cruising Speed
27 kt (50 km/h)
Maximum Range
15.0 km
Operational Altitude
30 m (100 ft) [typical, relative, launch site with an altitude of up to 4,000 m (13,123 ft)]; 200 m (660 ft) [maximum, relative, launch site with an altitude of up to 4,000 m (13,123 ft)]
Service Ceiling
300 m (980 ft) [relative, launch site with an altitude of up to 4,000 m (13,123 ft)]
Endurance
1.5 hours
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
F
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.3 m
Width
1.7 m
Height
0.35 m
Weight
3.7 kg
Operators (1)
China
