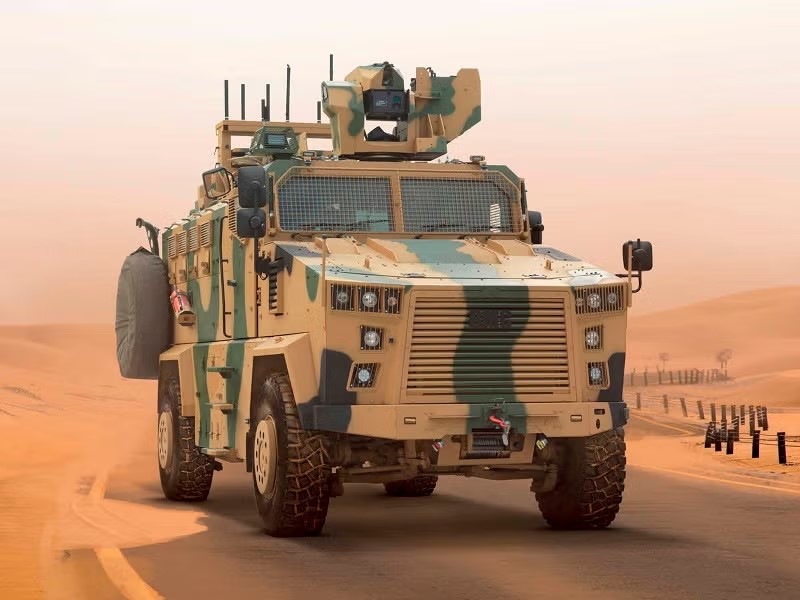

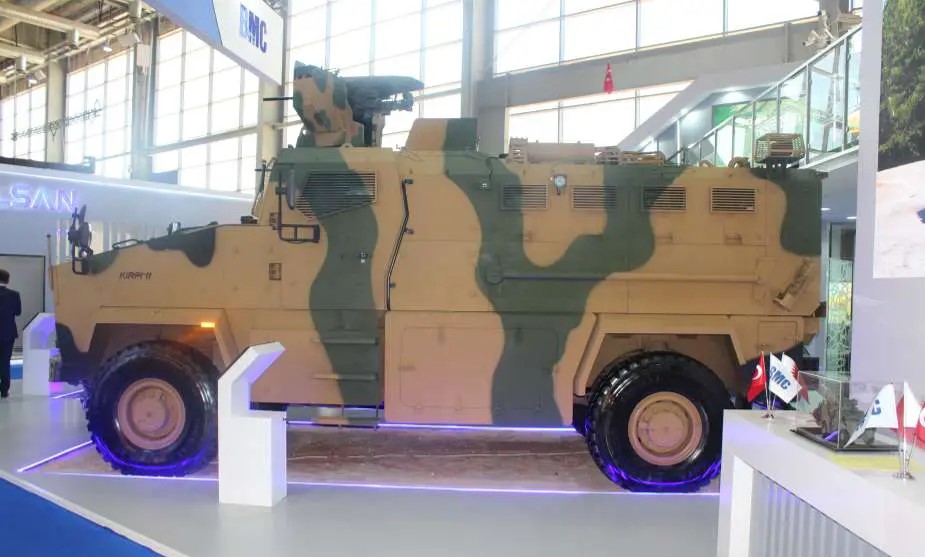

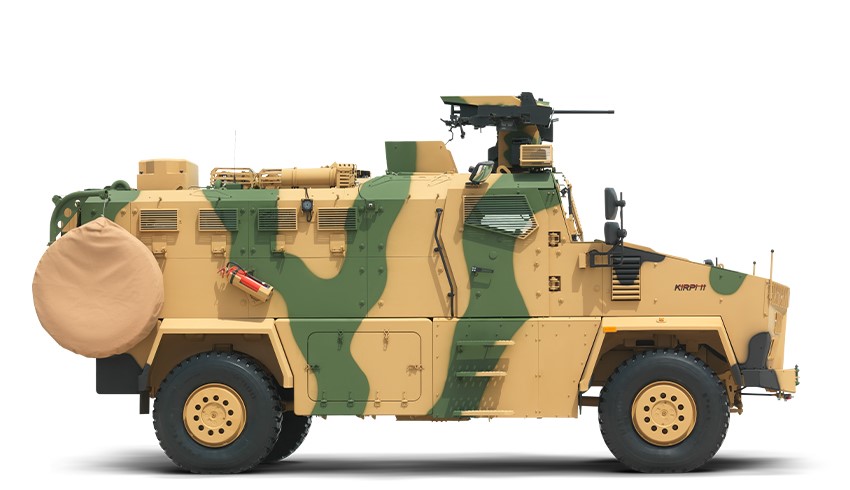

Kirpi II Turkish 4x4 Mine-Resistant Ambush Protected (MRAP)
Kirpi II
Mine-Resistant Ambush Protected (MRAP)
Other
Basic Information
Name
Kirpi II Turkish 4x4 Mine-Resistant Ambush Protected (MRAP)
Designation
Kirpi II
Alternate Designation
Kirpi II
Equipment Type
Mine-Resistant Ambush Protected (MRAP)
Manufacturer
BMC
Date of Introduction
2018
Description
The Kirpi II Turkish 4x4 Mine-Resistant Ambush Protected (MRAP) is equipped with Aselsan's SARP 12.7mm and Dual SARP remote-controlled weapon stations, capable of mounting 7.62mm and 12.7mm machine guns, as well as a 40mm automatic grenade launcher. The KIRPI II features an independent suspension system and composite armor, significantly enhancing vehicle mobility while offering reinforced protection against mines, improvised explosive devices (IEDs), and ballistic attacks. The KIRPI II is distinguished by its monocoque armored cabin, equipped with special armored windshields, shock-absorber seats, a weapon station, and an emergency exit hatch.
Ground Specifications
Crew
3
Mobility Type
Wheeled (4x4)
Main Weapon
12,7 mm M2HB Machine Gun; 7,62 mm Machine Gun; 40 mm MK19 Auto. Grenade Launcher
Engine
Turbocharged Diesel (375 hp)
NBC Protection
Yes
Max Speed
100.0 km/h
Range
750.0 km
System
Alternative Designation
Kirpi II
Type
Mine-Resistant Ambush Protected (MRAP)
Manufacturer
BMC
Configuration
4x4
Crew
3 ea
Passengers
10 ea
Dimensions
Length
7,425 mm
Width
2,585 mm
Height
3, 827 mm with RCWS
Weight, Combat
20,825 kg
Automotive
Engine Name
INA
Engine Type
Turbo, Intercooler, Diesel
Engine Power
375 PS (275 kW) @ 2100 rpm
Maximum Torque
550 NM @ 800 - 2100 rpm
Maximum Range
750km
Maximum Speed
100 km/h
Amphibious
No
Gradient
60%
Side Slope
30%
Vertical Step
INA
Angle of Approach
35°
Angle of Departure
38°
Trench
INA
Fording
1,000 mm
Ground Clearance
400 mm
Main Weapon System
Note
Remote Controlled Weapon Station:
12,7 mm M2HB Machine Gun;
7,62 mm Machine Gun;
40 mm MK19 Auto. Grenade Launcher
Protection
Armor
The V-shape underbody and monocoque allow it to protect the personnel inside from land mines and improvised explosive devices (IEDs). STANAG 4569;
Ballistic Protection;
Mine Protection;
IED Protection;
Spall Liner.
Applique Armor
Available
NBC Protection
Yes
Smoke Equipment
Yes
Details
Country of Origin
Turkey
Category
Mine-Resistant Ambush Protected (MRAP)
Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.43 m
Width
2.59 m
Height
3.83 m
Weight
20825 kg
Operators (2)
Turkey
Bosnia and Herzegovina
