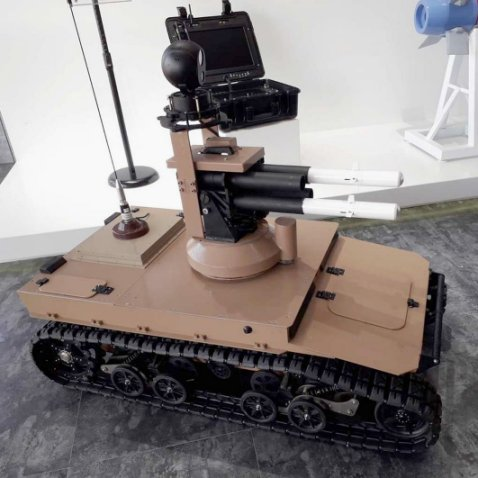

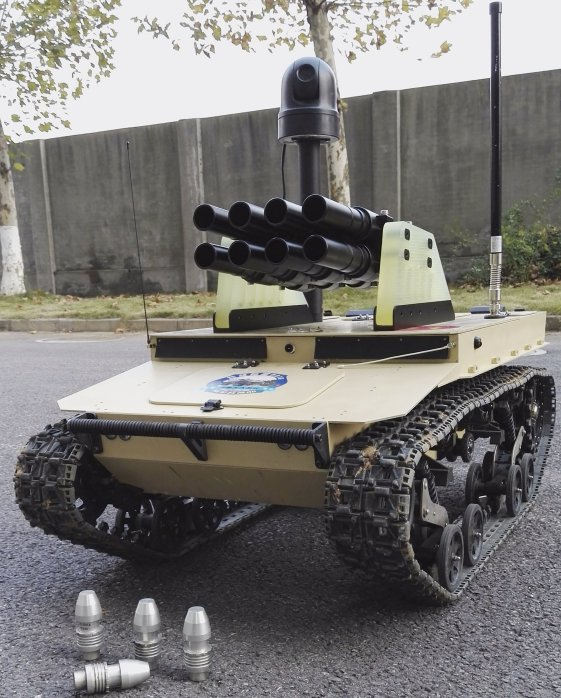

Shanyi 30 Chinese Amphibious Tracked Unmanned Ground Vehicle (UGV)
Shanyi 30
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Shanyi 30 Chinese Amphibious Tracked Unmanned Ground Vehicle (UGV)
Designation
Shanyi 30
Alternate Designation
Shanyi 30
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Zhong Tian Guide Control Technology
Date of Introduction
2017
Description
The Shanyi 30 Chinese Tracked Unmanned Ground Vehicle (UGV) has been developed for urban counter-terrorism, CBRNE, CASEVAC, fire support for dismounted troops, and ISTAR. The platform can operate in a swarm with other Shanyi 30 UGVs either co-operatively or independently to complete different missions.
System
Alternative Designation
Shanyi 30
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Zhong Tian Guide Control Technology Co Ltd
Configuration
Tracked
Mission
The platform has been developed for urban counter-terrorism, CBRNE, CASEVAC, fire support for dismounted troops, and ISTAR.
Crew
Unmanned
Control
Control of the unit is carried out by a standard portable control unit or by command vehicle.
Software
The Shanyi 30 platform can be used as part of a swarming operability to allow a number of UGVs to operate together.
Camera
The unit can be equipped with a PTZ camera.
Maximum Payload on Ground
30 kg
Maximum Payload on Water
15 kg
Environmental
IP67
Dimensions
Length
1.12 m
Width
0.62 m
Height
0.34 m
Track Width
110 mm
Weight
50 kg
Ground Clearance
85 –170 mm
Automotive
Main Power
24 V/40 Ah polymer lithium battery
Auxiliary Power
12 V/5 A, 5 V/8 A
Motor
350 W
Range
INA
Maximum Land Speed
35 km/h
Maximum Amphibious Speed
3 km/h
Maximum Gradient Climb
35˚
Side Slope
25˚
Vertical Obstacle Avoidance
240 mm
Trench Crossing Width
450 mm
Endurance
2 hours
Manipulator Arm
Note
Robotic arms can be mounted to the upper part of the robot.
Main Weapon System
Note

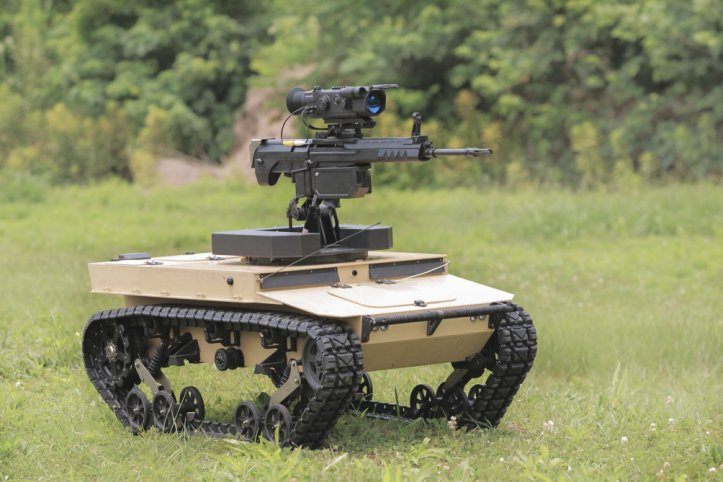

Shanyi 30 can be armed with a 12.7 mm MG or individual heavy weapons such as anti-tank missiles and rockets.
Protection
Armor
INA
Applique Armor
INA
Details
Country of Origin
China
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.12 m
Width
0.62 m
Height
0.34 m
Weight
50 kg
Operators (1)
China
