Wasp AE (RQ-12A) American Unmanned Aerial Vehicle (UAV)
Wasp AE RQ-12A
Tactical Unmanned Aerial Vehicle (UAV)
Other


Basic Information
Name
Wasp AE (RQ-12A) American Unmanned Aerial Vehicle (UAV)
Designation
Wasp AE RQ-12A
Alternate Designation
Wasp AE RQ-12A
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
AeroVironment
Date of Introduction
2007
Description

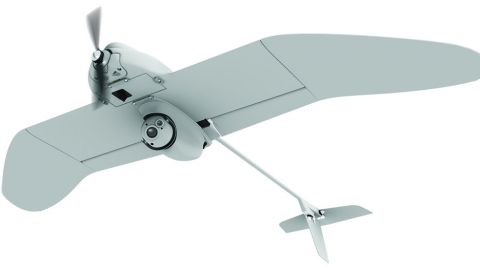

Weighing in at just over a kilogram, the Wasp AE delivers best-in-class capabilities for an unmanned aircraft system of its size, including stealth-like maneuverability, superior imagery, encrypted video and exceptional ease of use. Wasp’s gimbaled payload is mechanically stabilized, enabling it to transmit advanced imagery in high-wind conditions, while its advanced avionics allow operators the option of manual or autonomous navigation. The all-environment Wasp combines hand-launch capabilities with deep-stall landing for operations in confined areas on land or water. The aircraft also includes an integrated landing camera that provides operators with exceptional situational awareness as the aircraft approaches the ground.
Air & Air Defense Specifications
Engine
1 × Electric motor, rechargeable lithium ion batteries
Max Speed
20.0 km/h
Range
5.0 km
Endurance
50.00 hrs
Wingspan
102.00 m
System
Alternate Designation
Wasp AE RQ-12A
Type
Unmanned Aerial Vehicle (UAV)
Manufactuer
AeroVironment
Payload
Gimbaled payload with pan and tilt stabilized high resolution EO & IR camera in a compact aerodynamic modular payload.
GCS
Common GCS with Raven® and Puma
Launch Method
Hand-launched in a confined area with remote launch capability
Recovery Method
Deep-stall landing in a confined area
Dimensions
Length
76 cm
Wingspan
102 cm
Weight
1.3 kg
Automotive
Engine Name
INA
Engine Type
1 × Electric motor, rechargeable lithium ion batteries
Engine Power
INA
Range
5 km Line-of-Sight, 5+km with DDL relay
Maximum Speed
20 knots cruise, 45+ knots dash
Endurance
50 min
Operating Altitude
152 m AGL
Details
Country of Origin
United States
Category
Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Air > Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Filter Label
W
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.76 m
Width
1.02 m
Height
—
Weight
1.3 kg
Operators (5)
United States
France
Sweden
Spain
Australia
