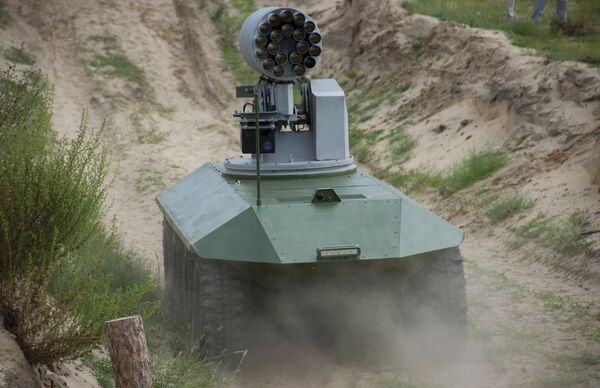

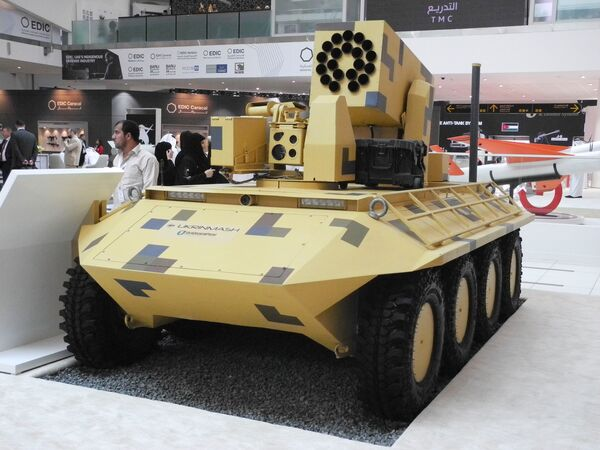

Phantom 2 Ukrainian 8x8 Unmanned Ground Vehicles (UGV)
Phantom 2
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Phantom 2 Ukrainian 8x8 Unmanned Ground Vehicles (UGV)
Designation
Phantom 2
Alternate Designation
Phantom 2; Fantom 2
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
SpetsTechnoExport (part of Ukroboronprom)
Date of Introduction
2016
Description
The Phantom 2 Ukrainian 8x8 Unmanned Ground Vehicles (UGV) has an elongated chassis in comparison to its predecessor, the Fantom, to provide stability for more powerful weaponry.
Ground Specifications
Mobility Type
Wheeled (8x8)
Engine
4-Cylinder Turbocharged Diesel (191 hp)
Max Speed
58.0 km/h
Range
20.0 km
System
Alternative Designation
Phantom 2; Fantom 2
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
SpetsTechnoExport (part of Ukroboronprom)
Configuration
8x8
Crew
Unmanned
Operator
The vehicle is operated from a remote control station.
Software
The vehicle can autonomously avoid obstacles, use waypoint navigation as well as returning to base.
Cameras
The sensor package includes a visual odometry system using several cameras (with two FoV wide and narrow), thermal camera, and a laser rangefinder.
Payload Capacity
850 kg
Dimensions
Length
4.20 m
Width
1.84 m
Height
1.20 m
Wheelbase
INA
Weight, Combat
1,600 kg
Weight, Empty
INA
Ground Clearance
40 cm
Automotive
Engine Name
Deutz BF 4M 1013 FC
Engine Type
4 cylinders, turbocharged, diesel
Engine Power
191 hp at 2,300 rpm
Amphibious
No
Maximum Speed
58 km/h
Maximum Gradient
60%
Side Slope
40%
Suspension
Independent hydraulic
Fording
50 cm
Endurance
10 h
Communications
Maximum Radio Operating Range
20 km
Maximum Tethered Operating Range
5 km
Maximum Satellite Operating Range
Unlimited
Main Weapon System
Note

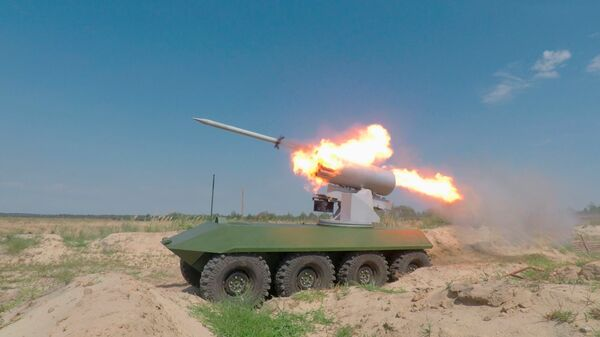

A number of weapon tests were carried out on the Phantom 2 Ukrainian 8x8 Unmanned Ground Vehicles (UGV), which include: A Block B-8V20A launcher; ‘Stugna-P' ATGM system; Korsar ‘Corsair' light, portable anti-tank system; 60 mm mortar system; and a 120 mm mortar system.
Protection
Armor
Steel hull
Applique Armor
INA
Details
Country of Origin
Ukraine
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.2 m
Width
1.84 m
Height
1.2 m
Weight
1600 kg
Operators (1)
Ukraine
