UB M52 Serbian 120mm Mortar

UB M52

Multiple Launch Rocket System (MLRS)
Spotted an error? Sign in to suggest an edit.

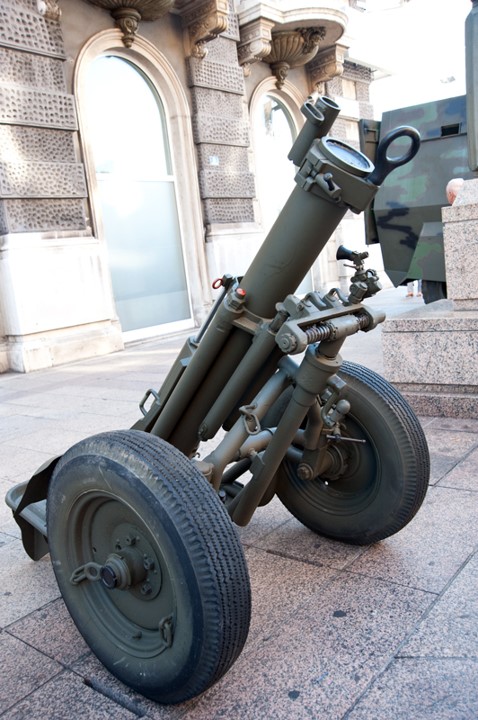

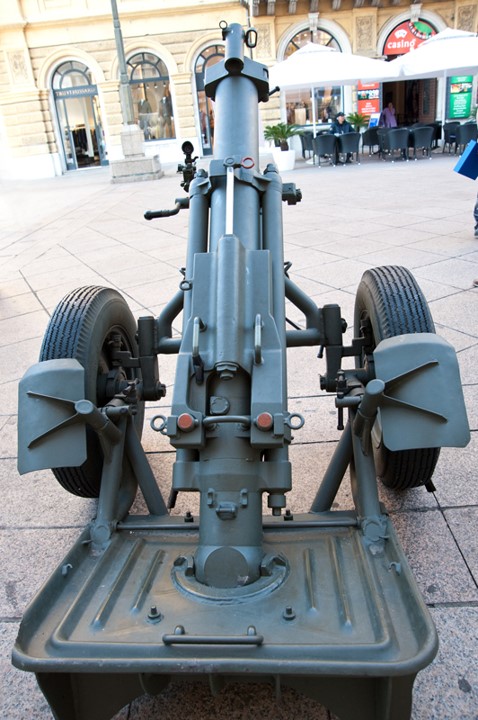

UB M52 Serbian 120mm Mortar
Other

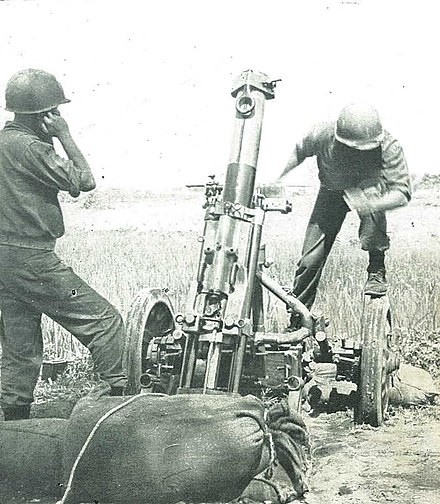

UB_M52_Mortar_(C).jpgTRADOC ODIN WEG
Thumbnail
Thumbnail
Thumbnail
Basic Information
Name
UB M52 Serbian 120mm Mortar
Designation
UB M52
Alternate Designation
UB M52
Equipment Type
Multiple Launch Rocket System (MLRS)
Manufacturer
PPT Namenska
Date of Introduction
1984
Description

The UB M52 Serbian 120mm Mortar is a 120 mm (4.75 inch) mortar that was developed by Military Technical Institute Belgrade.

Ground Specifications
Crew 5
Variants
M52 Basic Version
M52A1 Improved Version
M52A2 Improved Version
M52A3 Improved Version
System
Alternate Designation UB M52
Type Mortar
Caliber 120 mm
Manufacturer PPT-Namenska AD
Crew 5 ea
Rate of Fire 25 rpm
Maximum Firing Range 7,460 m
Effective Firing Range 6,100 m
Feed System Manual
Dimensions
Length 2.250 m
Weight 378.0 kg
Ammunition
HE Shells
Option 1 M62P8 HE mortar shell
Option 2 Mk12P1 HE mortar shell
Option 3 Mk12P1-L HE mortar shell
Illumination Shells
Option 1 M87P1 Illumination mortar shell
Option 2 M01 Illumination mortar shell
Smoke Shells
Option 1 M64P2 Smoke mortar shell
Option 2 M64P3 Smoke mortar shell
Option 3 Mk12 Smoke mortar shell
Option 4 M89 Smoke mortar shell
Practice Shells
Name M63P2 Practice mortar shell
Image Sources
Notes https://commons.wikimedia.org/wiki/File:Teski_minobacac_120_mm_UB_M52_2011_7245.jpg; https://en.m.wikipedia.org/wiki/File:Indonesian_Navy_commandos_training_with_mortar,_Jalesveva_Jayamahe,_p124.jpg;
Details
Country of Origin Serbia
Category Non-Self Propelled Mortar Systems
Land > Infantry Weapons > Non-Self Propelled Mortar Systems
Filter Label
U
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
2.25 m
Width
—
Height
—
Weight
378 kg
Operators (7)
Ukraine
Serbia
Bangladesh
El Salvador
Myanmar
North Macedonia
Slovenia
