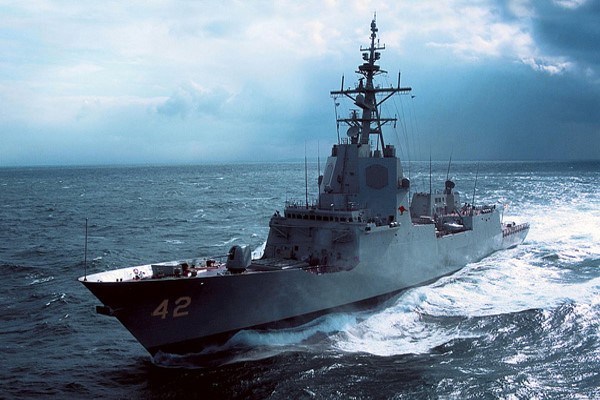

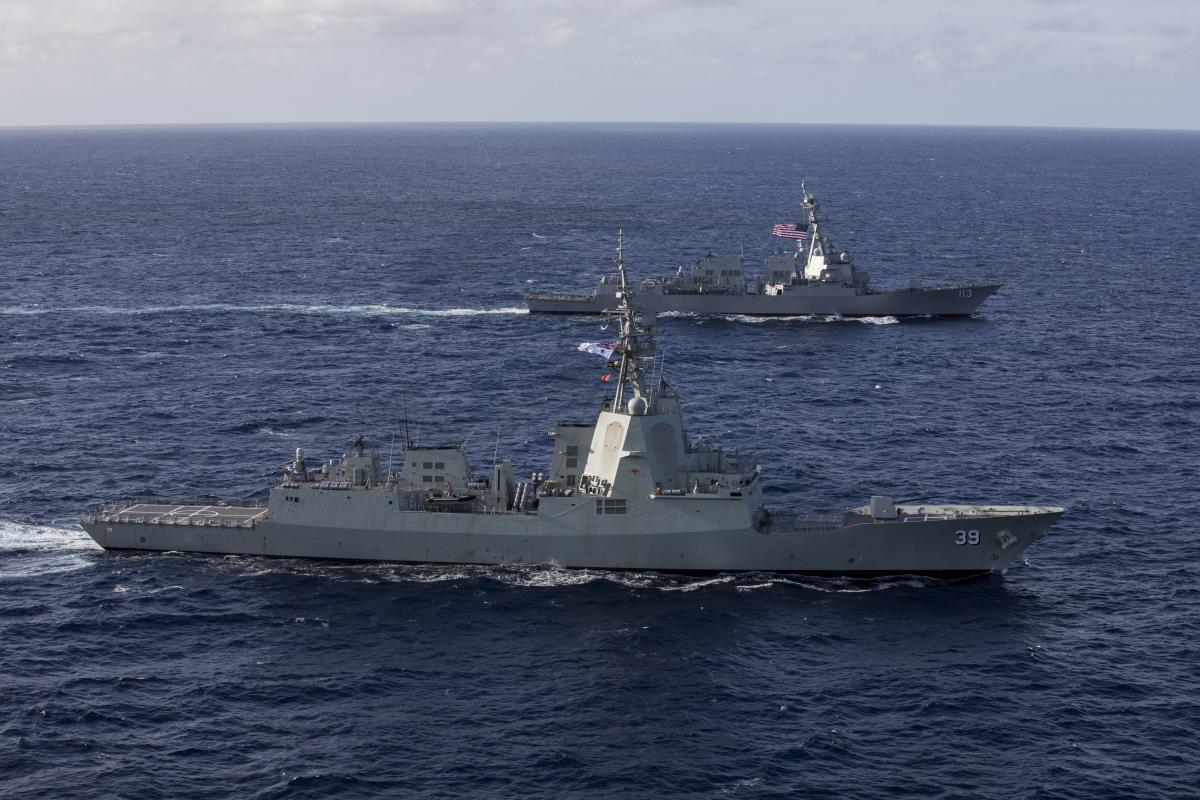

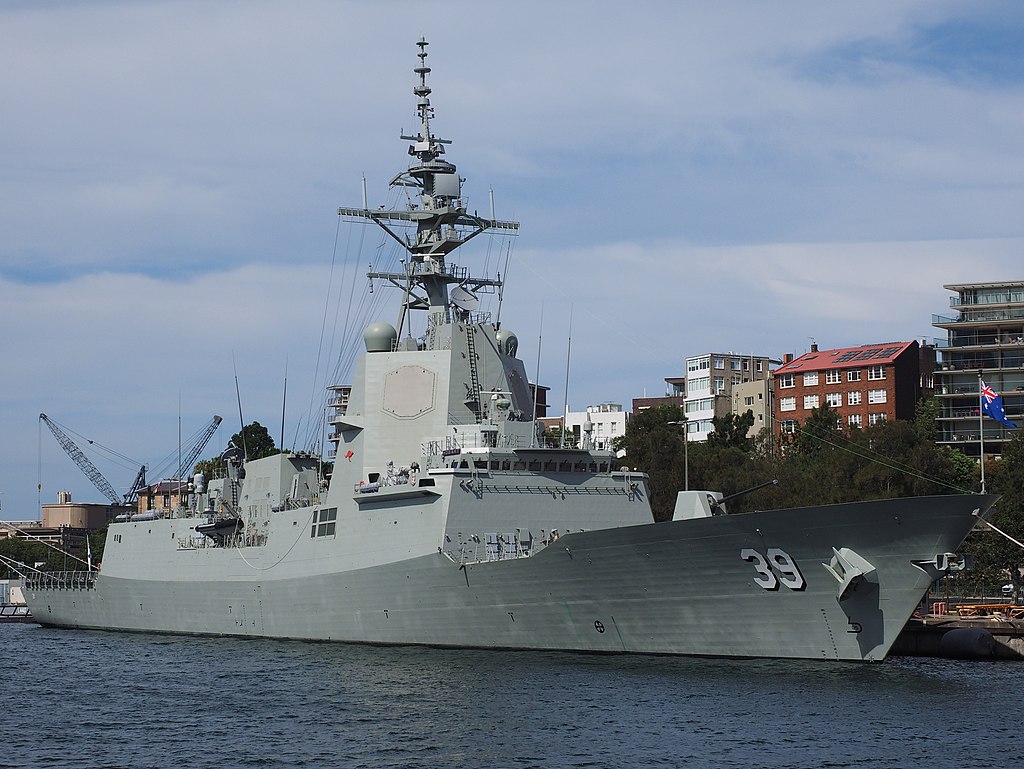

Hobart Class Australian Destroyer

Hobart Class

Destroyer
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Hobart Class Australian Destroyer
Designation
Hobart Class
Alternate Designation
Hobart Class
Equipment Type
Destroyer
Manufacturer
Date of Introduction
2015
Description

The Hobart class is a ship class of three air warfare destroyers (AWDs) being built for the Royal Australian Navy (RAN). Planning for ships to replace the Adelaide-class frigates and restore the capability last exhibited by the Perth-class destroyers began by 2000, initially under acquisition project SEA 1400, which was re-designated SEA 4000. Although the designation "Air Warfare Destroyer" is used to describe ships dedicated to the defense of a naval force (plus assets ashore) from aircraft and missile attack, the planned Australian destroyers are expected to also operate in anti-surface, anti-submarine, and naval gunfire support roles. Planning for the Australian Air Warfare Destroyer (as the class was known until 2006) continued through the mid-2000s, with the selection of the Aegis combat system as the intended combat system and ASC as the primary shipbuilder in 2005. In late 2005, the AWD Alliance was formed as a consortium of the Defense Materiel Organization (DMO), ASC, and Raytheon. Between 2005 and 2007, Gibbs & Cox's Evolved Arleigh Burke-class destroyer concept and Navantia's Álvaro de Bazán-class frigate competed for selection as the AWD design. Although the Arleigh Burke design was larger and more capable, the Álvaro de Bazán design was selected in June 2007 as it was an existing design, and would be cheaper, quicker, and less risky to build. T

Naval & Littoral Specifications
Crew 186
Beam 18.60 m
Draft 7.20 m
Variants
Hobart Commissioned: 2015 Status: Active
Brisbane Commissioned: 2016 Status:Active
Sydney Commissioned: 2020 Status: Sea Trials
System
Alternative Designation Hobart Class
Date of Introduction 2015
Total Built 3 ships built
Type Destroyer
Builder Navantia (designer) AWD Alliance (project coordinator) ASC (primary shipbuilder) Forgacs Group and BAE Systems Australia (module builders)
In Service 2015-Present
Crew 186 + 16 aircrew Accommodation for 234
Dimensions
Length, Overall 146.7 m
Length, Perpendiculars 133.2 m
Beam 18.6 m
Draft 7.2 m
Displacement, Full Load 7,000 tons
Propulsion System
Diesel Engine Name 2 x Bazan/Caterpillar diesels
Diesel Engine Power 12,240 hp sustained
Gas Turbine Engine Names 2 x GE LM 2500 gas turbines
Gas Turbine Engine Power 47,328 hp sustained
Shafts 2 ea
Propellers controllable-pitch propellers
Range 5,000 nm (5,750 mi, 9,260 km) at 18 knots
Speed 28 knots (32 mph, 52 km/h)
Communcations
Sataliete Communications 1 x MBS-567A COMINT system
Missile Systems
Missile System #1
Name Mk 41 Vertical Launch Systems
Type Surface-to-Air Missile
Quantity 48 x Mk 41 vertical launch systems
Missile Name (Primary Missile) SM-2MR
Missile Type Surface-to-Air Missile
SM-2MR Missile Basic Load 32 ea
SM-2MR Missile Range 167 km
SM-2MR Missile Speed Mach 3
Missile Name (Secondary Missile) RIM-7 Sea Sparrow
Missile Type Surface-to-Air Missile
RIM-7 Sea Sparrow Basic Load 64
RIM-7 Sea Sparrow Range 14.8 km
RIM-7 Sea Sparrow Speed Mach 2.5
Missile System #2
Name Quad RGM-84L Harpoon
Type Anti-Ship Missile
Launcher 2 x quad RGM-84L Harpoon launchers
Basic Load 8 Harpoon Block II missiles carried
Length 3.90 m
Diameter 340 mm
Wingspan 0.91 m
Weight 531.6 kg
Range 139-148 km
Speed Mach 0.85
Warhead Conventional high-explosive with some penetration capability
Warhead Weight 227 kg
Sensors short-pulse radar Kollsman frequency-modulated continuous wave altimeter Texas Instruments PR-53/DSQ-28 monopulse frequency-agile, jittered pulse repetition frequency active radar homing seeker switched on at pre-planned point
Guidance System on-board Midcourse Guidance Unit (MGU)-IBM digital computer Smiths Industries three-axis ARA Honeywell AN/APN-194
Targeting HCLS provides targeting data; no updates once missile is launched.
Gun Weapon System
Gun Weapon System #1
Name Mk 45 Naval Gun
Type Naval Gun
Caliber 127 mm
Quantity 1 x FMC 127-mm/62-cal Mk 45 Mod 2
Length 6.86 m
Barrel Length 6.858 m
Weight 22,226.00 kg
Crew 6 (gun captain, panel operator, 4 ammunition loaders, all below decks)
Elevation −15° to +65°
Traverse ±170° from centerline Max. traversing rate: 30°/s[
Rate of Fire 16–20 rounds per minute automatic
Muzzle Velocity 762.0 m/s
Effective Firing Range 24.1 km
Feed System 600 rounds
Ammunition Gun Weapon System #1
Type Rfile
Caliber 12.7 mm
Shell 31.75 kg
Basic Load INA
Gun Weapon System #2
Name Typhoon Weapon Station
Type Remote Weapon Station
Caliber 25 mm
Quantity 2 x Rafael 25mm/75-cal Mk 25 Typhoon-G RWS
Barrel Length INA
Weight 1,000 kg
Elevation -20 deg to 45 deg
Traverse +/-160 deg
Muzzle Velocity INA
Effective Firing Range INA
Sensors CCD/ICCD/FLIR
Ammunition Gun Weapon System #2
Type Rifle
Caliber 25 mm
Basic Load INA
Gun Weapon System #3
Name Mk 15 Phalanx CIWS
Type Close-In Weapon System
Caliber 20 mm
Quantity 2 x Raytheon 20-mm Mk 15 Phalanx Block 2B CIWS
Barrel Length 1,500 mm
Height 4.7 m
Weight 5,700 kg
Crew Automated, with human oversight
Barrels 6-barrel (progressive RH parabolic twist, 9 grooves)
Elevation −10°/+80°
Traverse 150° from either side of centerline (Rate of traverse: 100°/sec
Rate of Fire 3,000 rounds/minute
Maximum Firing Range 3.5 km
Effective Firing Range Classified
Muzzle Velocity 1,100 m/s
Guidance System Ku-band radar and FLIR
Ammuntion Gun Weapon System #3
Type Rifle
Caliber 20 mm
Shell • Naval: Armor-piercing tungsten penetrator rounds with discarding sabots. • Land: High-Explosive Incendiary Tracer, Self-Destruct.
Basic Load INA
Torpedo Weapon System
Torpedo Tubes Triple 323mm Mk 32 Mod 9
Quantity 2 x Triple 323mm Mk 32 Mod 9 fixed launchers Systems
Torpedo Name MU90 Impact
Torpedo Type Anti-Submarine Torpedo
Length 2.85 m
Diameter 323.7 mm
Weight 304 kg
Warhead PBX shaped charge warhead
Warhead Weight 32.7 kg
Engine Pump-jet Electric
Operational Range >10 km (5.4 nmi) (max speed) >23 km (12 nmi) (min speed)
Maximum Depth >1000 m
Speed 29 kn (54 km/h) to well over 50 kn (93 km/h)
Guidance System Active or passive acoustic homing
Onboard Aviation Facilities
Helicopters 1 x MH-60R helicopter
Fire Control
Combat Management System 1 x Lockheed Martin Aegis Baseline 7.1; Link 11/16; AN/USG-7B Cooperative Engagement Capability
Sonar Systems
Sonar System 1 x Ultra integrated sonar suite w/Type 2150 hull-mounted and VDS w/torpedo detection
Radar Systems
Air and Surface Radar 1 x AN/SPY-1D(V) Aegis air/surface search
Surface Radar 1 x Northrop Grumman AN/SPQ-9B surface search
Target Radar 3 x Raytheon SPG-62 target illuminators
Navigation Radar 2 x L3 Radarpilot 1100 navigation
Protection
Active Protection System Yes
EO System #1 1 x Mk 20 EOSS
EO System #2 2 x Sagem VAMPIR IRST
EO System #3 2 x Ultra 2500 EO tracking systems
Electronic Warfare 1 x ITT ES-3701 ESM and surveillance system
Decoy System #1 4 x Mk 169 Nulka decoy launchers
Decoy System #2 4 x Terma Mk 137 C-Guard decoy launchers for SRBOC/NATO Sea Gnat
Decoy System #3 LESCUT torpedo decoys (Basic Load: INA)
Decoy System #4 SLQ-25 Nixie torpedo countermeasures (Basic Load: INA)
Details
Country of Origin Australia
Category Naval
Naval
Filter Label
H
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
146.7 m
Width
Height
Weight
304 kg
Operators (1)
Australia
