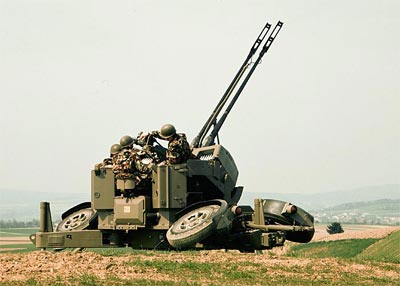

Oerlikon GDF-005 Swiss 35mm Towed Anti-Aircraft Gun

GDF-005: Initial operating capability was achieved in 1985. It is fitted with the Contraves Gun King digital optronic sighting system. There is three-dimensional target tracking with a laser rangefinder, periscope sight, and digital computer. It has an integrated power supply on the mount; the battery power is sufficient for five combat cycles before IPS must be restarted. It also includes an autonomous gun sighting system. The Oerlikon GDF or Oerlikon 35 mm twin cannon is a towed anti-aircraft gun made by Oerlikon Contraves (renamed as Rheinmetall Air Defence AG following the merger with Rheinmetall in 2009). The system was originally designated as 2 ZLA/353 ML but this was later changed to GDF-001. It was developed in the late 1950s and is used by around 30 countries. The system uses twin autocannons, firing 35×228mm NATO-standard ammunition. It was originally designated 353 MK and is now designated as the KD series. The same KD series 35mm cannons are used in the Leopard 1 based Gepard and Type 74 tank based Type 87 SPAAG and Marksman self-propelled anti-aircraft guns (SPAAG). The system could be paired with the off-gun (remote) Super Fledermaus fire control radar, which in the late 1970s was upgraded to the Skyguard system. The weapons was aimed either directly, by way of an advanced sighting system, or automatically, by locking onto the target with radar. Early models carried 112 rounds ready to fire, and an additional 126 stored on the chassis as reloads. Later versions with automated reloading carry 280 rounds total. A typical engagement burst is 28 rounds
