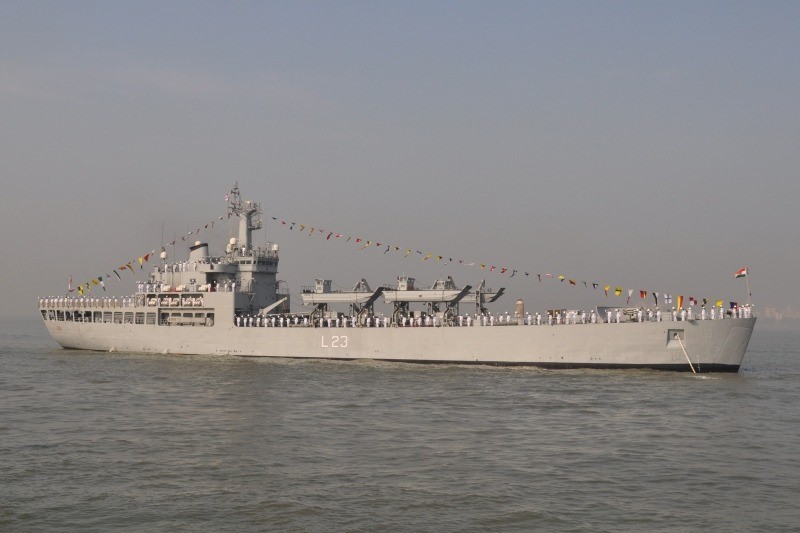

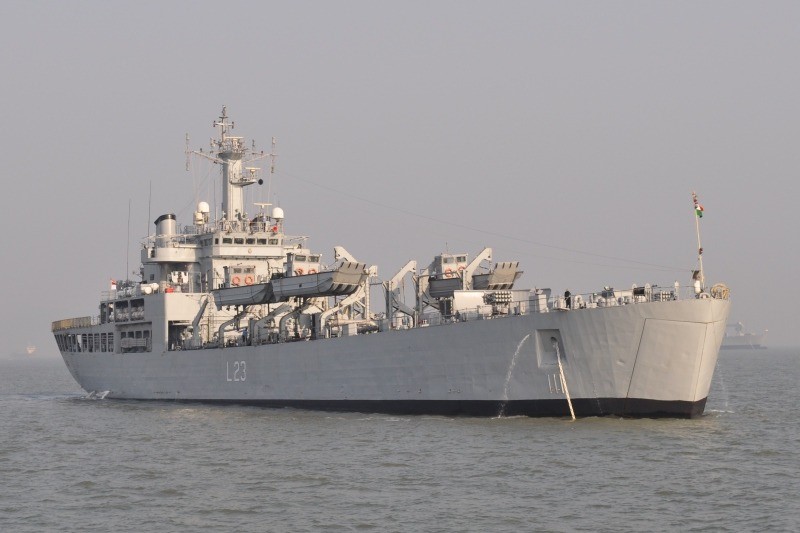

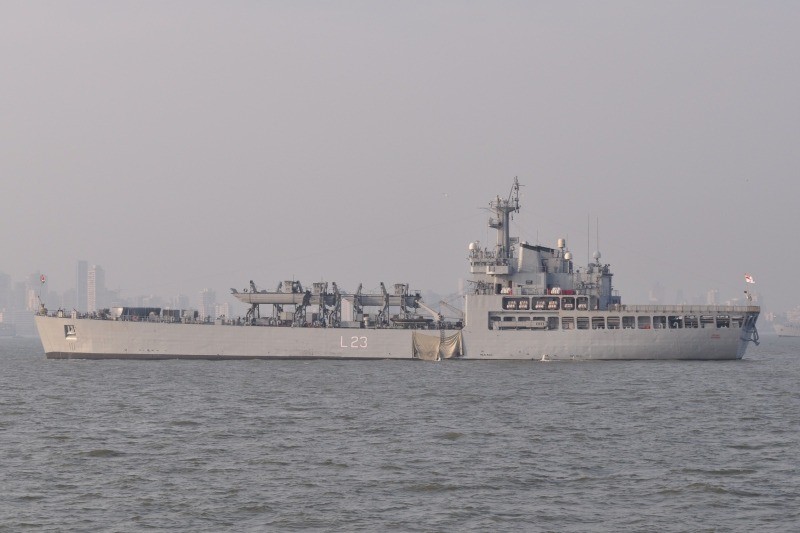

Magar Class Indian Amphibious Warfare Vessel
Magar Class
Amphibious Warfare Vessel
Other
Basic Information
Name
Magar Class Indian Amphibious Warfare Vessel
Designation
Magar Class
Alternate Designation
Magar Class
Equipment Type
Amphibious Warfare Vessel
Manufacturer
Hindustan Shipyard, Visakhapatnam/Garden Reach; Garden Reach Shipbuilders & Engineers, Kolkata
Date of Introduction
1987
Description
The Magar Class Indian Amphibious Warfare Vessel is based on the Round Table-class ships formerly operated by the Royal Navy. They can operate two medium-lift helicopters, which are primarily meant for inserting small teams of special forces (e.g. MARCOS). To discharge a ship's cargo and most of the troops, it needs to be beached, so that it can utilize its bow-door, similar to an LST.
Ground Specifications
Crew
136
Main Weapon
4 × Bofors 40 mm/60 guns
Max Speed
27.8 km/h
Range
5556.0 km
Variants
Magar
Commissioned: 1987
Status: Decommissioned 2023
Gharial
Commissioned: 1997
Status: Active
Shardul
Commissioned: 2007
Status: Active
Kesari
Commissioned: 2008
Status: Active
Airavat
Commissioned: 2009
Status: Active
System
Alternative Designation
Magar Class
Type
Amphibious Warfare Vessel
Builder
Hindustan Shipyard, Visakhapatnam/Garden Reach; Garden Reach Shipbuilders & Engineers, Kolkata
Crew
136 Enlisted; 16 Officers
Cargo Capacity
10 x tanks plus 11 x APC plus 500 x troops
Dimensions
Length
124.8 m
Height
INA
Beam
17.5 m
Draft
4.0 m
Displacement, Full Load
5,655 tons
Propulsion System
Engine Name
2 x SEMT-Pielstick 12PA5V-280 STC
Engine Type
Diesel
Engine Power
8,560 hp
Maximum Range
5,556.0 km at 14 kt (25.9 km/h)
Maximum Speed
15 kt (27.8 km/h)
Main Weapon System
Note
2 x 122mm multi-barrel rocket launchers at the bow and 4 × Bofors 40 mm/60 guns.
Radar Systems
Surface Search/ Navigation Radar
2 x Sperry Marine BridgeMaster; I-band.
Aircraft
Note
1 x King 42C Helicopter
Protection
Electronic Countermeasures
1 x BEL Ajanta; intercept.
NBC Water Washdown System
Yes
Details
Country of Origin
India
Category
Naval
Naval
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
124.8 m
Width
17.5 m
Height
—
Weight
5655000 kg
Operators (1)
India
