64N6 (Big Bird) Russian Surveillance and Target Acquisition Radar

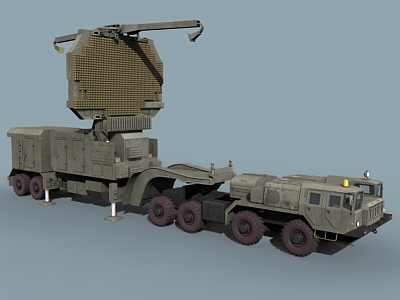

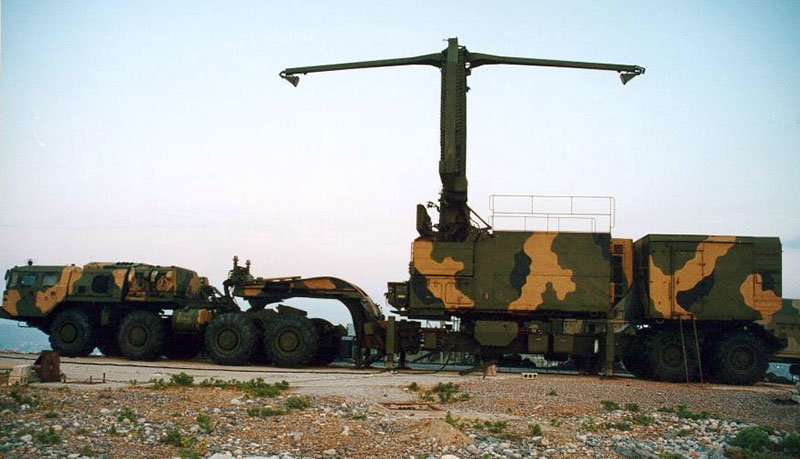

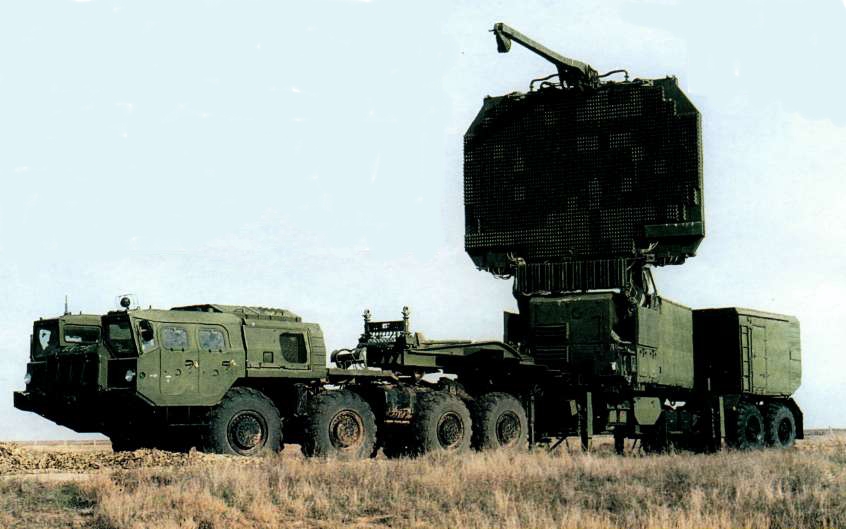

The 64N6 (Big Bird) Russian Surveillance and Target Acquisition Radar is a long-range, three-dimensional phased-array surveillance and target acquisition radar that serves as the primary search and detection component for Russia's S-300 and S-400 air defense systems. --- Additional Data (TRADOC ODIN WEG) --- Frequency: 2.9–3.3 GHz (S, NATO Band E/F) Antenna Dimensions: 12 x 3.5 (each face) m Associated Weapon Systems: С-300ПМУ2 (S-300PMU2): 48Н6Е2 / 48N6E2 Role: 3D Long-Range Surveillance Remarks: Export/modernized S-300P search radar --- From Radartutorial.eu (https://www.radartutorial.eu/19.kartei/06.missile/karte014.en.html) --- 64N6E (Cyrillic: 64Н6Э; NATO-designator „Tombstone”, later variants „Big Bird”) is operating in the S band Phased Array search and acquisition Radar used for aerial targets and ballistic missile. This radar was developed for the SA–10A „Grumble” or SA–20 „Gargoyle” surface-to-air missile system (Russian designator: S-300) since 1967 and was put into service in 1979. Its radar signal processing can detect up to 200 targets.
