Dragon Runner 10 American Micro Unmanned Ground Robot

Dragon Runner 10

Unmanned Ground Vehicle (UGV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Dragon Runner 10 American Micro Unmanned Ground Robot
Designation
Dragon Runner 10
Alternate Designation
Dragon Runner 10
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
QinetiQ North America
Date of Introduction
2005
Description

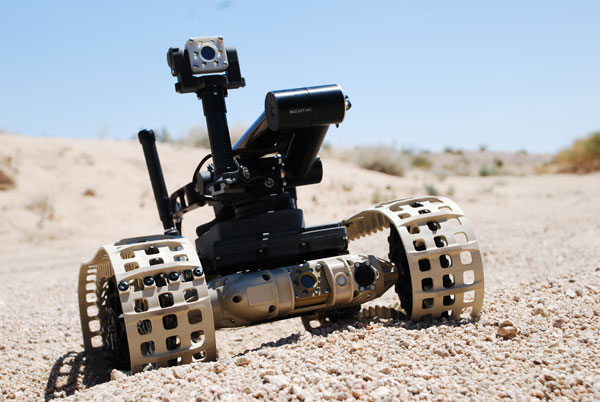

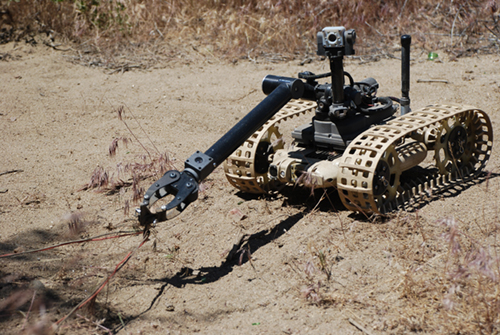

The Dragon Runner 10 (DR-10) is a lightweight, expandable robot that offers protection and support to small unit, dismounted operations. Designed to provide situational awareness by ‘scouting out’ while the operator remains at safe distance, the DR-10 keeps military forces and first responders away from dangerous situations. At approximately 10 pounds the DR-10 can be hand carried or easily transported inside a rucksack—it can even be thrown! This compact and durable robot is operated with an easy-to-use remote controller. Its robust design allows it to perform in the most challenging environments and adverse weather conditions. Whether it’s under a car or deep inside a sewer or drainpipe, the DR-10 has the dexterity to go where personnel can’t. From unmanned, reconnaissance missions to delivering remote sensors and placing counter-IED charges, these micro robots protect people, assets and save lives. Features: *Provides real-time situational awareness *Small enough to fit inside an assault pack *Light enough to be hand carried *Tough enough to be thrown &Operates in adverse weather conditions

Ground Specifications
Max Speed 4.8 km/h
Range 0.6 km
Variants

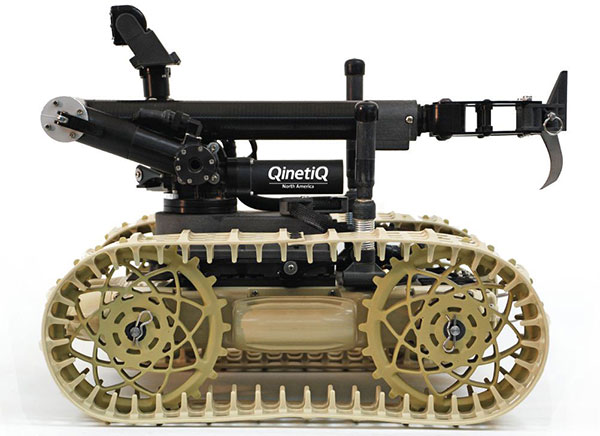

Dragon Runner 20 Dragon Runner 20 Small Unmanned Ground Robot Small and lightweight, yet rugged and feature-packed, the Dragon Runner 20 (DR-20) is a highly specialized and mobile robot designed to provide situational awareness, safety and support for reconnaissance, security, inspection and IED missions. The mission dictates exactly how the DR-20 will be used – making it the perfect choice for defense and security applications especially in congested urban settings. Whether it’s at a security checkpoint, deep inside a sewer or drainpipe or tasked with an EOD mission, the DR-20 supports a wide range of scenarios. At 20 pounds, the DR-20 can be hand carried by one person and easily deployed.
System
Alternative Designation Dragon Runner 10
Type Micro Unmanned Ground Robot
Manufacturer QinetiQ North America
Crew Unmanned ea
Communications Vehicle on-board microphone
Environmental IP 65 rated
Cameras (2) Front and rear, day and night
Controller Dragon Runner 10 wearable controller
Payloads (optional) Manipulator arm, hazmat sensors
Dimensions
Length 44 cm
Width 33 cm
Height 18 cm
Weight 5 kg
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Maximum Speed 4.8 Km/h
Operational Range Greater than 1,970 ft (600m) Line-of Sight when equipped with external antennas.
Endurance 2-3 hours (mission dependent)
Protection
Hull Armor INA
Applique Armor INA
Details
Country of Origin United States
Category Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
D
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.44 m
Width
0.33 m
Height
0.18 m
Weight
5 kg
Operators (2)
United States
United Kingdom
