Telemax Plus German Tracked Unmanned Ground Vehicle (UGV)
Telemax Plus
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Telemax Plus German Tracked Unmanned Ground Vehicle (UGV)
Designation
Telemax Plus
Alternate Designation
Telemax Plus
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Faulhaber
Date of Introduction
2019
Description

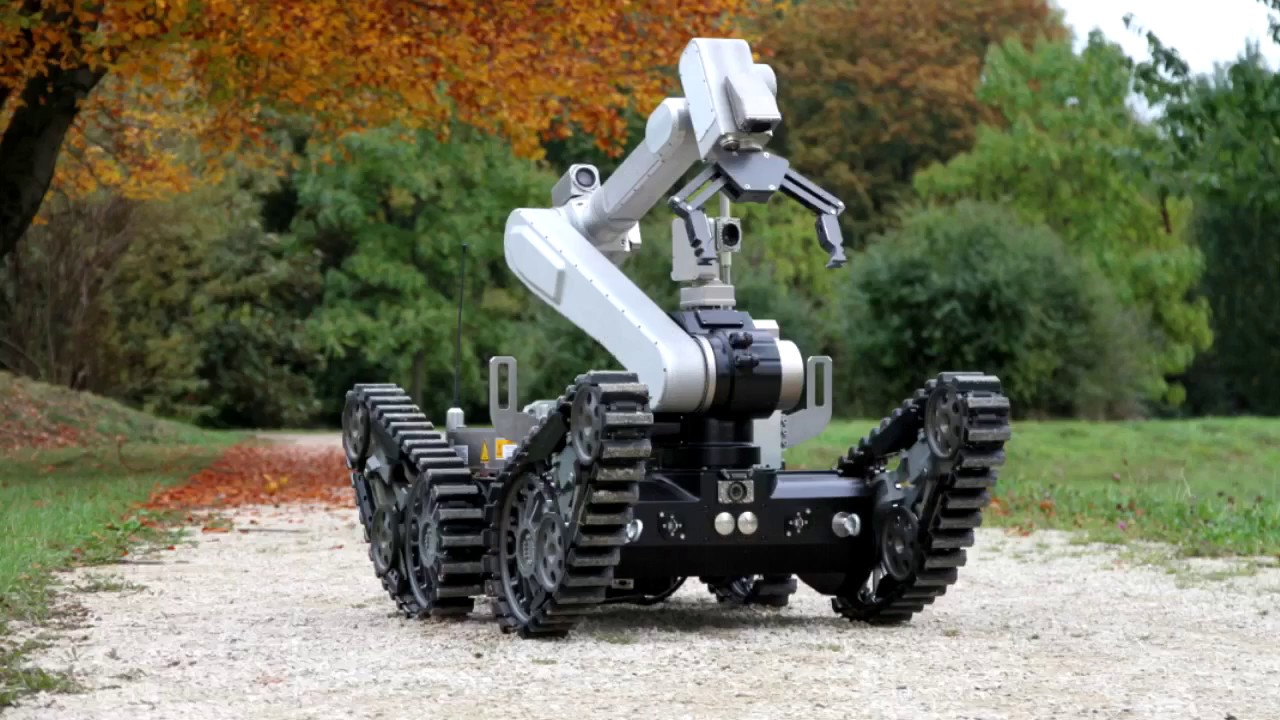

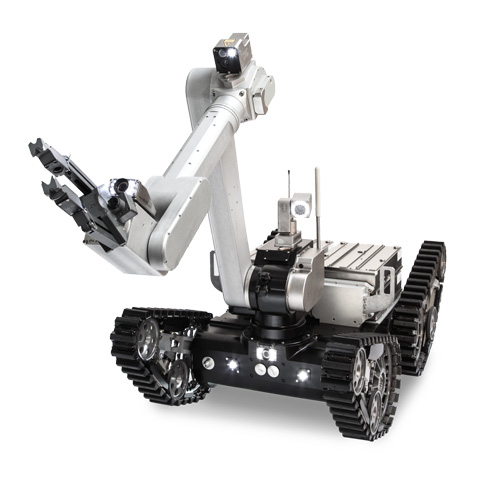

Telemax PLUS The biggest and strongest telemax: Versatile and strong! Our largest and strongest telemax, its exceptional ability to handle gradients and terrains makes it ideal for a particularly broad range of applications. Features: Exceptionally strong precision 6-axis manipulator with TCP control and automatic tool change; Lifting capacity up to 80 kg; Double payload area on the chassis; 4-track drive system with a top speed of up to 5 km/h; More than 30 pre-programmed automatic motion sequences for manipulator and flippers; Interchangeability of accessories within the telemax family, e.g. batteries, tools, cameras, and sensors
Ground Specifications
Crew
1
Max Speed
5.0 km/h
Variants
Telemax 4x4
elemax with wheels:
Versatile and cost-efficient!
The starter version with a broad wheelbase and 4-wheel drive for rapid deployments on challenging terrains and delicate flooring requiring protection.
Telemax PRO
The original telemax:
Compact design and high reach!
A truly versatile robot capable of handling significant gradients and obstacles, it boasts an impressive manipulator reach, both vertically and horizontally, combined with minimal dimensions. Perfect for deployments in built-up areas and confined spaces.
Telemax HYBRID
The best of both worlds – Compact and strong!
The combination of a powerful arm and compact dimensions for the toughest challenges.
Telemax PLUS
The biggest and strongest telemax:
Versatile and strong!
Our largest and strongest telemax, its exceptional ability to handle gradients and terrains makes it ideal for a particularly broad range of applications.
Telemax RECCE
Fast solution for reconnaissance:
Agile and smart!
Compact and high performance reconnaissance system without a manipulator provides detailed information from the site, especially when equipped with our autonomy/3D mapping accessory.
System
Alternative Designation
Telemax Plus
Type
Tracked Unmanned Ground Vehicle (UGV)
Manufacturer
Faulhaber
Crew
1 ea
Payload Capacity
Lifting capacity up to 80 kg
Firing Port
3 ea
Flipper Swiveling
-85° to +80°
Dimensions
Length
860 mm
Width
680 mm
Height
880 mm
Manipulator, Upward Reach
2325 mm
Manipulator, Forward Reach
1563 mm
Manipulator, Downward Reach
1069 mm
Weight
113 kg
Automotive
Engine Name
INA
Engine Type
INA
Engine Power
INA
Drive
Track
Maximum Speed
5 km/h
Operational Range
INA
Mobility, Slopes
45° (depending on surface)
Mobility, Stairs
45° (depending on surface)
Mobility, Obstacle Height
400 mm
Mobility, Gap Width
500 mm
Fording Depth
240-560 mm
Battery
NiMh battery (24 V, 15 Ah) or Li-ion battery (26 V, 40 Ah)
Endurance
NiMh battery (24 V, 15 Ah):
approx. 2.5 h with 2 batteries; approx. 5 h with 4 batteries
Li-ion battery (26 V, 40 Ah):
approx. 3 h with 1 battery; approx. 6 h with 2 batteries;
approx. 12 h with 4 batteries
Payload Range
INA
Protection
Hull Armor
INA
Applique Armor
INA
Details
Country of Origin
Germany
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.86 m
Width
0.68 m
Height
0.88 m
Weight
113 kg
Operators (1)
Germany
